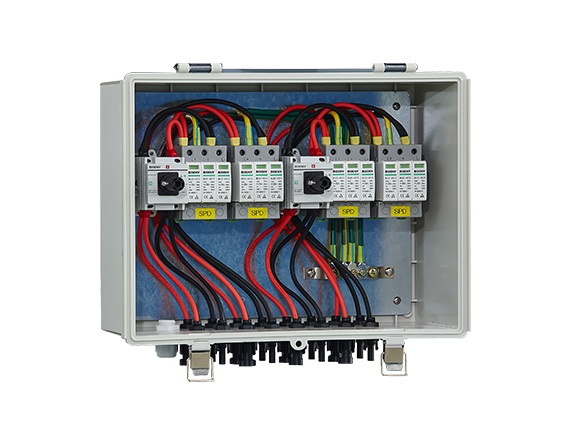

1000V Door Clutch DC Box 4 In 4 Out BHS-4/4

4 input 4 output 1000VDC Door Clutch DC Box

Highlights :

  • 4 In 4 Out
  • 1000VDC
  • UL508i Approval, IEC60947-3 PV2
  • IP66 Enclosure
  • TUV 100X100 icon
  • UL-Certifed icon
  • CE-Certified icon

4 IN 4 OUT 1000VDC DOOR CLUTCH DC BOX

IP66 DC string box is designed for 4 string PV system.



For surge protection and isolating at solar DC side.

RELATED COMPONENTS

Door Clutch DC Box BHS 4 4 2
DC Disconnect Switch 1000V 50A BYSS Series UL Listed
  • UL508i approval, IEC60947-3 PV2 Cut off reverse current and over current
  • Door clutch easier operating and lockable handle
  • Patented DC arc extinguish chamber
  • Magnetic Steels inside ensure rapid and safe extinguishing
DC SPD Type2 1000V BUD-40/3 IEC
  • New IEC 61643, UL1449
  • Designed for solar PV protection
  • Higher capacity In 20KA ( IEC, UL )
  • Response time <25ns

SPECIFICATION

Specification
Model Number BHS-4/4
Input 4 string
Output 4 string
Max Voltage 1000V
Short Circuit Current per Input (Isc) 15A-30A (changeable)
Max Current Output 50A
Enclosure
Material Polycarbonate
Degree of Protection IP66
Impacts IK10
Dimensions (W*H*D)
Input Cable Glands PG09, 2.5-16
Output Cable Gland PG21, 2.5-16
Environment
Operating temperature -25℃ – +60℃
