1000V DC Combiner Box 6 In 6 Out BHS-6/6

IP65 DC string box is designed for 6 string PV system.

Highlights :

  • 1000V DC
  • 6 Input 6 Output
  • IP65

6 Input 6 Output 1000VDC

IP65 DC string box is designed for 6 string PV system.

For surge protection and over-load protection at solar DC side.

RELATED COMPONENTS

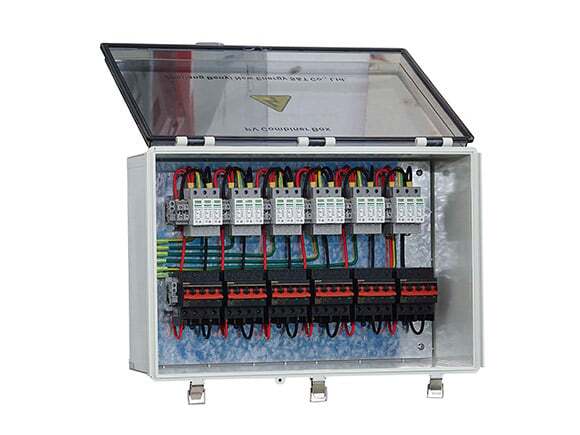

1000V BHS 6 6 2
DC Mini Circuit Breaker 1200V 63A BB1-63 IEC&AS
  • UL489B design, IEC60947-2 PV standard
  • Over-load, short circuit Protection
  • Non Polarity for easier wiring
DC SPD Type2 1000V BUD-40/3 IEC
  • New IEC 61643, UL1449
  • Designed for solar PV protection
  • Higher capacity In 20KA ( IEC, UL )
  • Response time <25ns

SPECIFICATION

Specification
Model Number BHS-6/6
Input 6 strings
Output 6 strings
Max Voltage 1000V
Rated Current of DC Breaker 32A/32A/32A/32A/32A/32A
Max Current Output 40A/40A/40A/40A/40A/40A
Enclosure
Material Poly carbonate/ABS
Degree of Protection IP65
Impacts IK10
Dimensions 400*600*230mm
Input Cable Glands PG09, 2.5-16
Output Cable Gland PG21, 2.5-16
Environment
Operating temperature -25℃ – +60℃
