Ensure durability and stability under high temperatures and intense sunlight.
Offers the highest level of dust and water resistance(IP68 for module-level; IP66 for string-level), suitable for harsh environments.
BENY rapid shutdown solutions accommodate all types of solar modules, available in both module-level and string-level. Regardless of the choice, we ensure that our products comply with NEC standards and specifications.

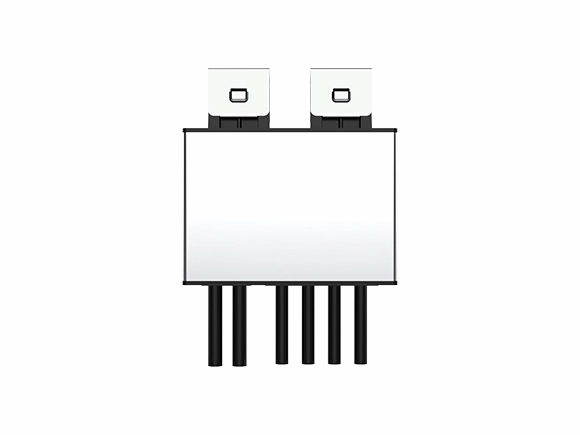

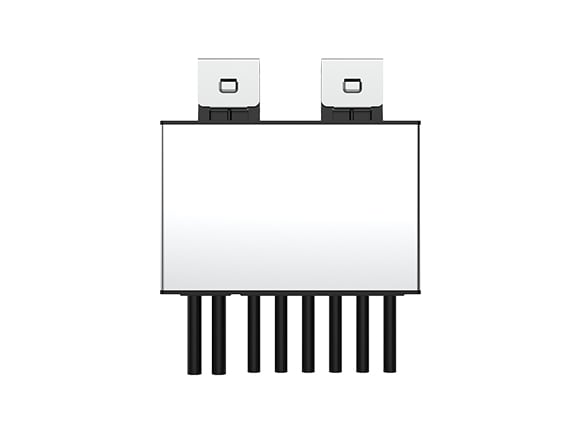

1 Panel (≥40v) or 2 Panels (<40v)
2 Panels (≥40v) or 4 Panels (<40v)
– BFS-S1: 1 string
– BFS-S2: 2 strings
– BFS-S3: 2 strings

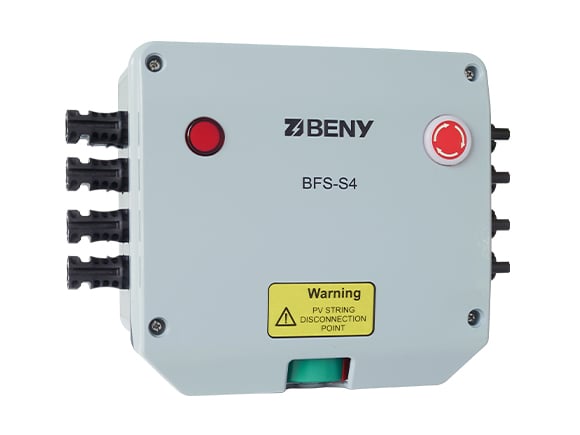

– BFS-S4: 2 strings
– Avoid DC faults like photovoltaic arrays, lightning, or short circuit

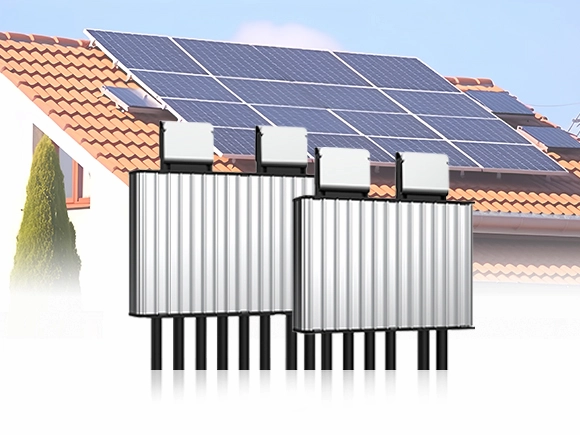

– rooftop photovoltaic system
– solar power station
– fire safety
Choosing a trusted rapid shutdown device supplier safeguards compliance with global regulatory requirements, solidifying customer confidence through a commitment to excellence and long-term reliability in the solar energy sector.

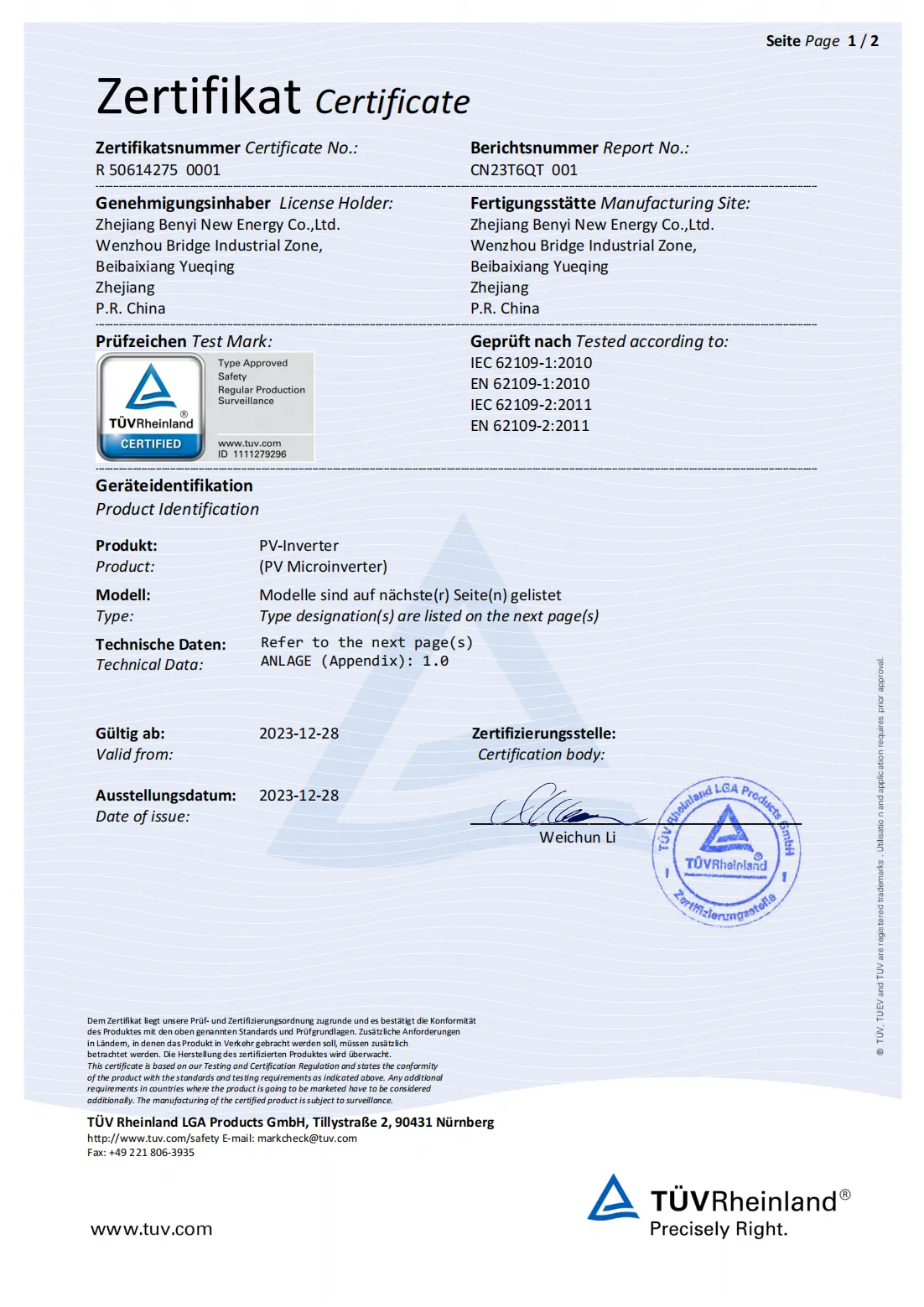

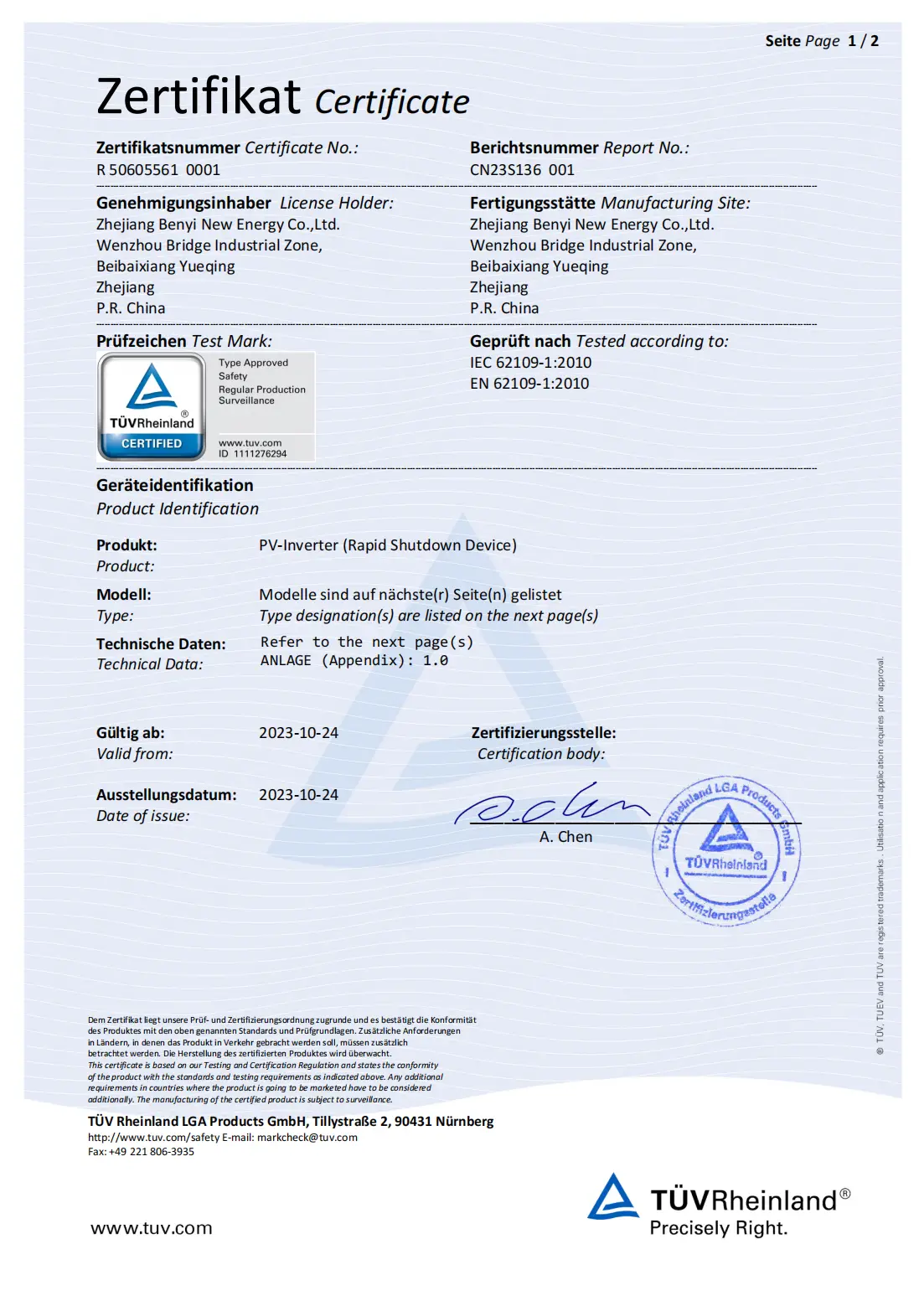

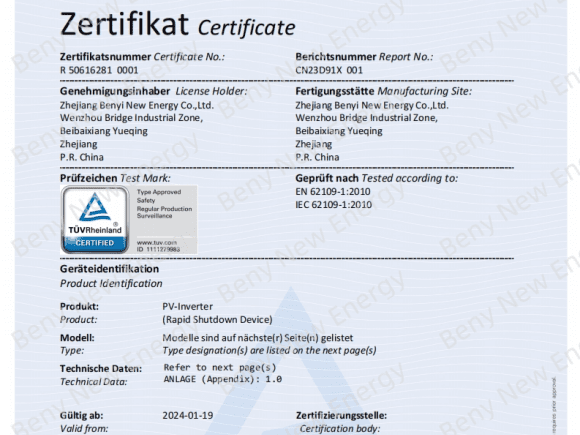

TUV
CE

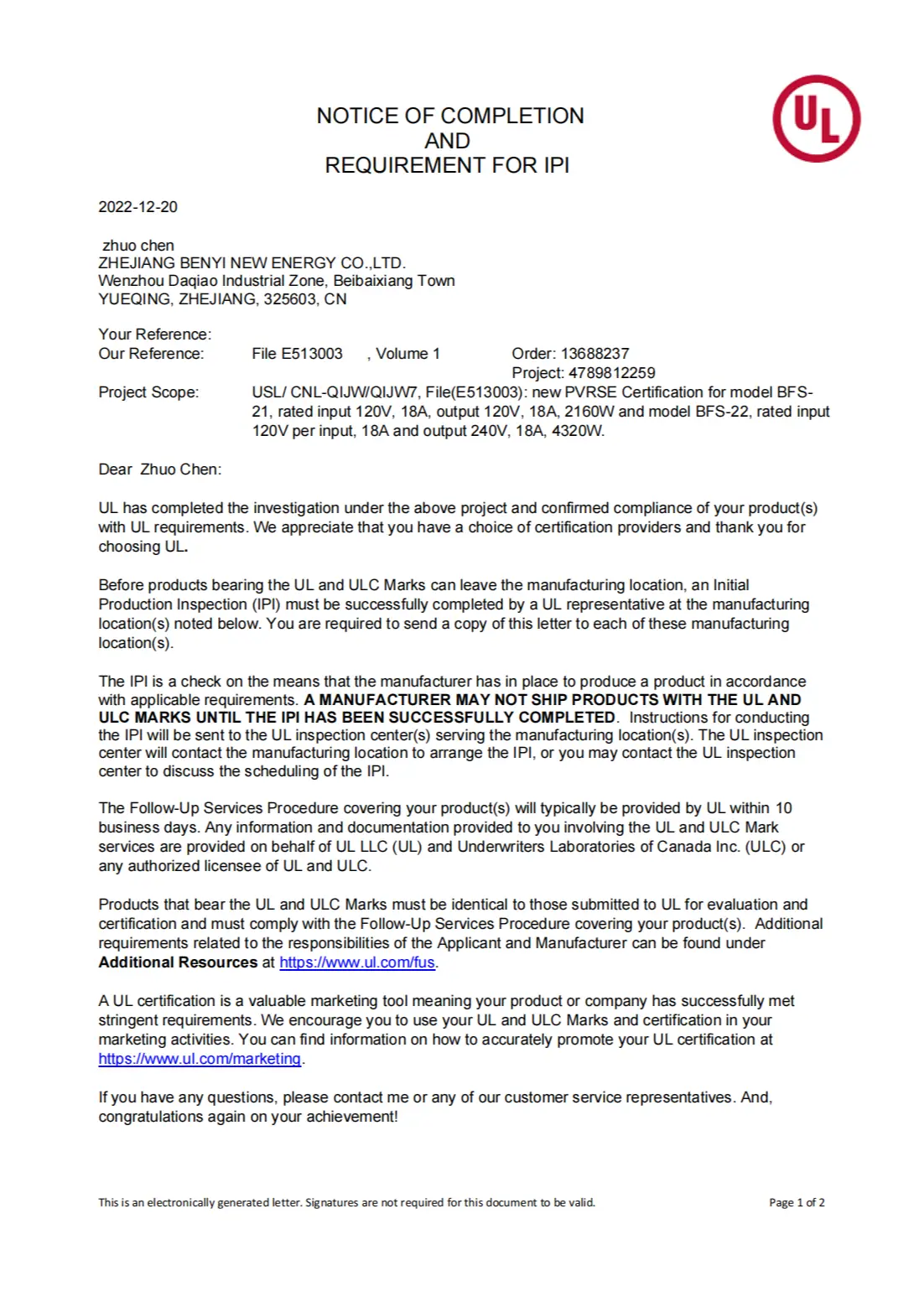

UL

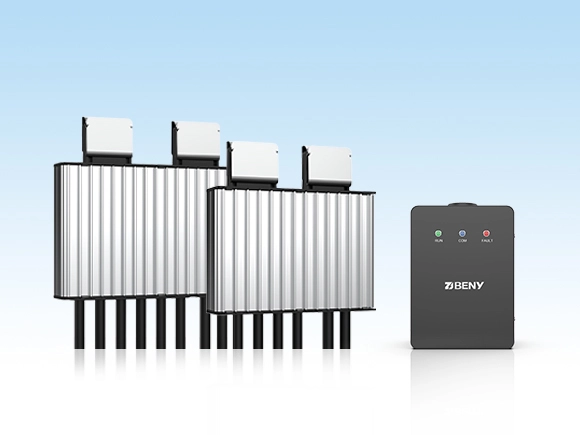

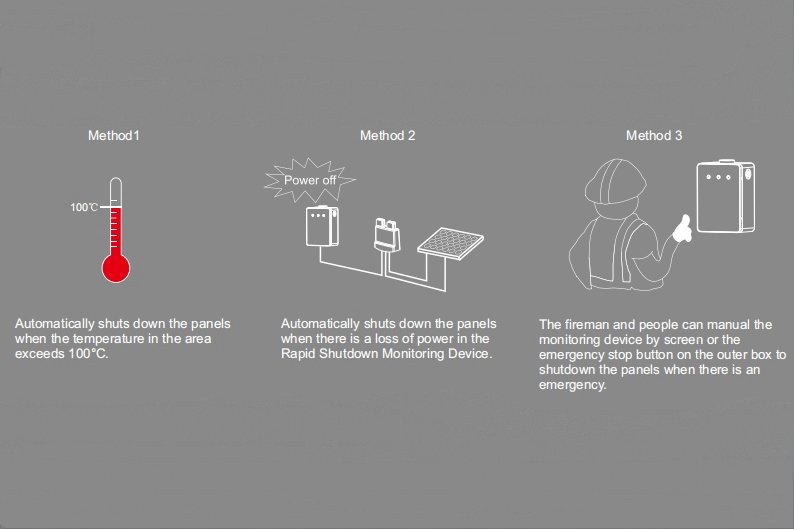

The BENY rapid shutdown system is specifically engineered to improve safety measures for solar installations. It adheres to the stipulations of NEC 2017 Article 690.12, ensuring that in critical situations, the system enhances operational safety by dropping connected panels to 0V.

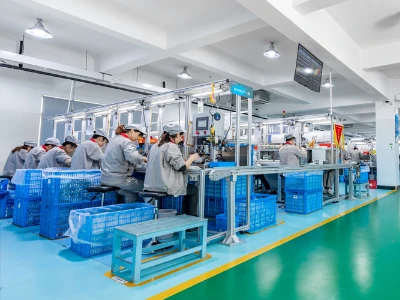

With over 30 years in the field, BENY offers deep expertise in photovoltaic manufacturing. Reach out to our team for detailed product info and free consultations.

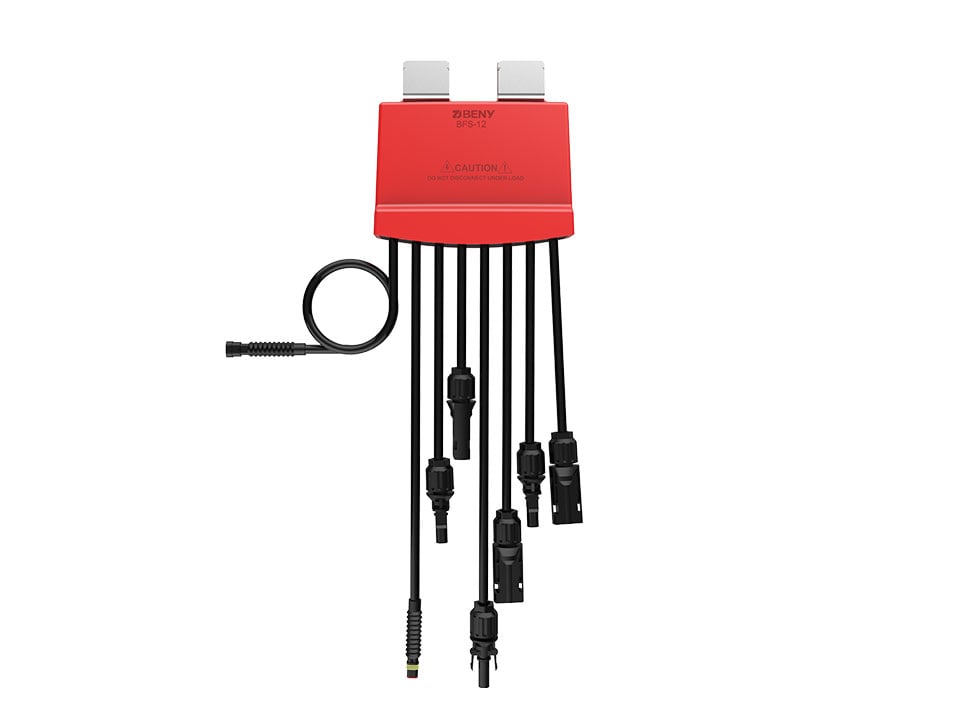

Featuring a plug-and-play design and utilizing MC4 cables, BENY’s RSD device offers effortless and streamlined installation, simplifying the setup process.
Decide which location to install your RSD. You can install RSD horizontally or vertically, depending on your preference.
Remember to ensure the power line is off and wear PPE (personal protective equipment) insulated.
When you’re ready to wire the RSD input and output, make sure that the equipment grounding conductor (EGC) from the array is linked in the inverter. The EGC should connect the inverter and array for the inverter’s ground fault protection to operate.
Look for the input wires on the side of RSD marked as “Input” and connect them to the PV array. The positive end of the PV array should be connected to the +RSD input wire, while the negative end of the PV array must be linked to the -RSD input wire.
Then look for the output wires. Connect the RSD output wires to the inverter inputs. The +RSD output wire must be linked to the positive DC input terminal, and the -RSD output wire must be connected to the negative DC input terminal.
Install the 24V power supply. Open the PV system AC disconnect switch and the PV breaker first to make sure the inverter is disconnected from the grid. Note that the power supply of RSD should be connected to a 2-wire 208V line-to-line or 3-wire 240V line-to-line inverter output.

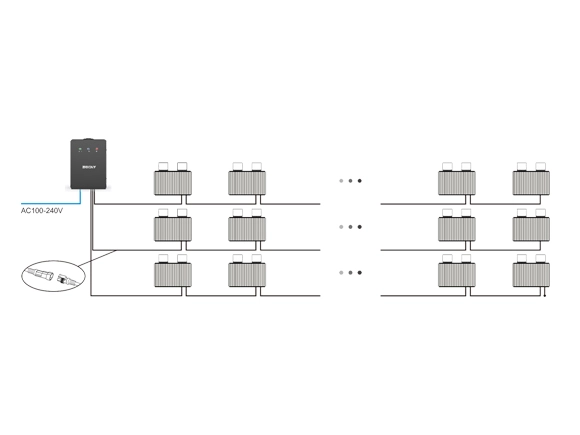

For multiple RSD installations, simply repeat the wiring steps to connect the second RSD control circuit to the second output position on the power supply.
Within the ten-foot perimeter of the PV array, DC voltage must be lowered to no more than 30Vdc, and power to <240VA, within 30 seconds. This is to comply with NEC 690.12 rapid shutdown requirements.
When the PV system has been installed, test the RSD system. Check if the inverter DC input drops to less than 30 Vdc within 30 seconds after AC is removed. If it is, then your RSD installation is a success.
