Discover the untapped potential of solar power and become a vital asset in facilitating the expansion of your business
BENY’s advanced microinverters for solar systems, especially quadin microinverters with 4 independent MPPTs, establish a solid foundation for sustainable business development, offering a blend of efficiency, security, and adaptability.
Innovation-Driven
In response to the substantial power requirements inherent in daily business advancement, BENY offers a diverse range of microinverters spanning from 500W to 2800W and single-in to quad-in, with an exceptional MPPT efficiency of 99.8%. Multiple solar panels can be connected with one MPPT module parallelly, thus saving the costs and upgrading the efficiency. Operating within a voltage range of 16V to 60V, these microinverters not only optimize the utilization of limited solar resources but also guarantee paramount system safety.
BENY offers a variety of microinverters meticulously tailored to different user requirements, ensuring a consistently elevated experience.
The low operating DC voltage of 40V approximately (max. 60V) is within the safe voltage for human body.

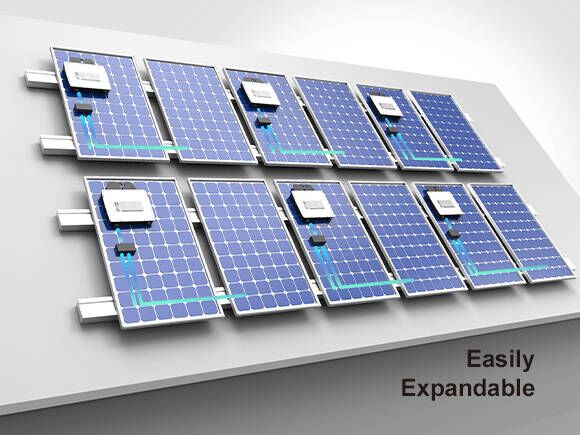

Parallel connection fits with any solar system (like dispersed panels of varied orientations) and easily scalable when your power demand increases.
Work at -40℃ to +70℃ and deal with drastic temperature fluctuations; contoured lower cover to optimize heat dissipation.
Fully-potting design and IP 67 rating; normally work in harsh environments even underwater; up to 25 years' warranty.

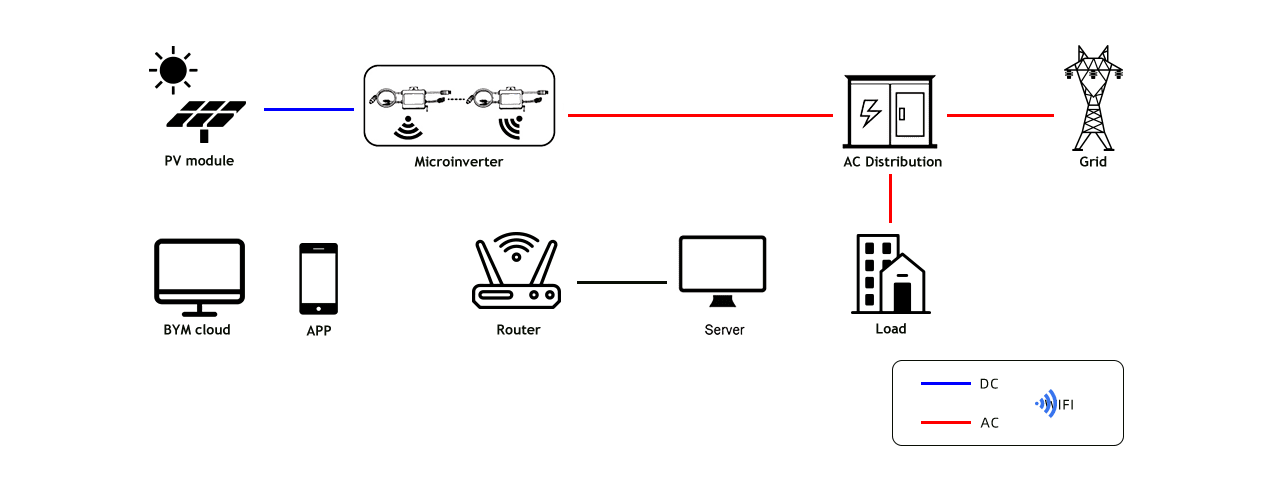

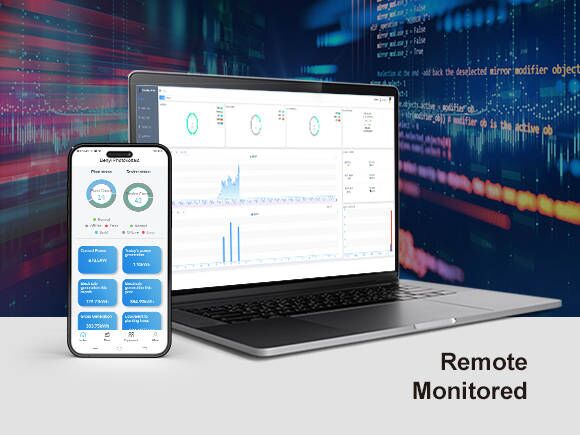

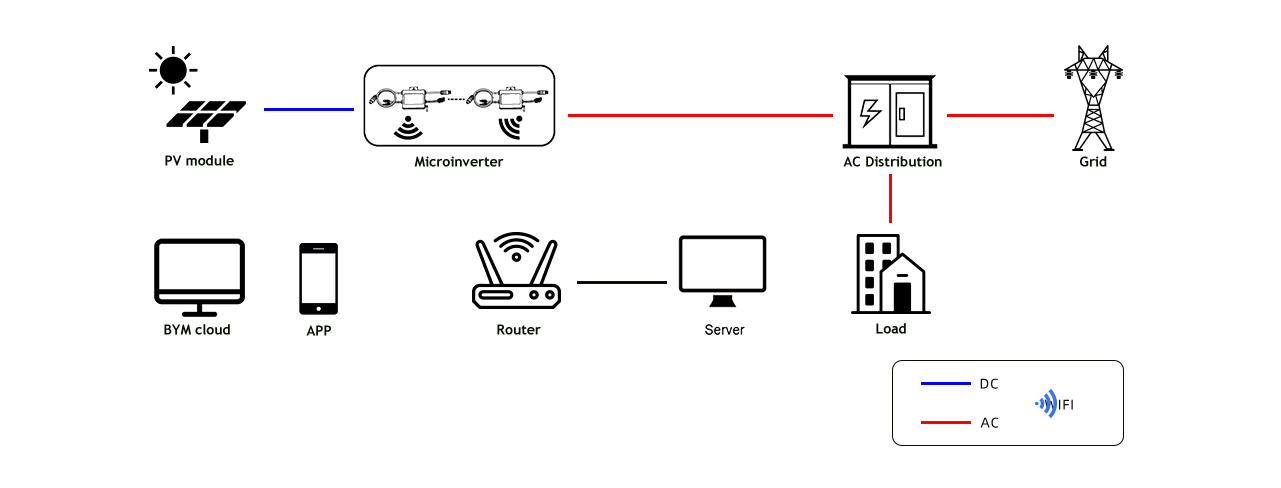

PLCC or Wi-Fi data transmission for module-level online monitoring and data access on cloud platform and BYM cloud APP.
Calculate the installed capacity based on the available building area, while concurrently accounting for fluctuating environmental variables such as parapets and shadows. The parallel configuration of microinverters enables each MPPT module function independently with its respective panels.
Undertake a meticulous assessment of the optimal tilt angle and the interspacing between the front and rear module arrays, tailored to the variable sunlight conditions and roof structure. For instance, in the case of a color steel tile roof, the components are installed in a tiled manner with a gap exceeding 0.5 meters to accommodate ease of future maintenance.

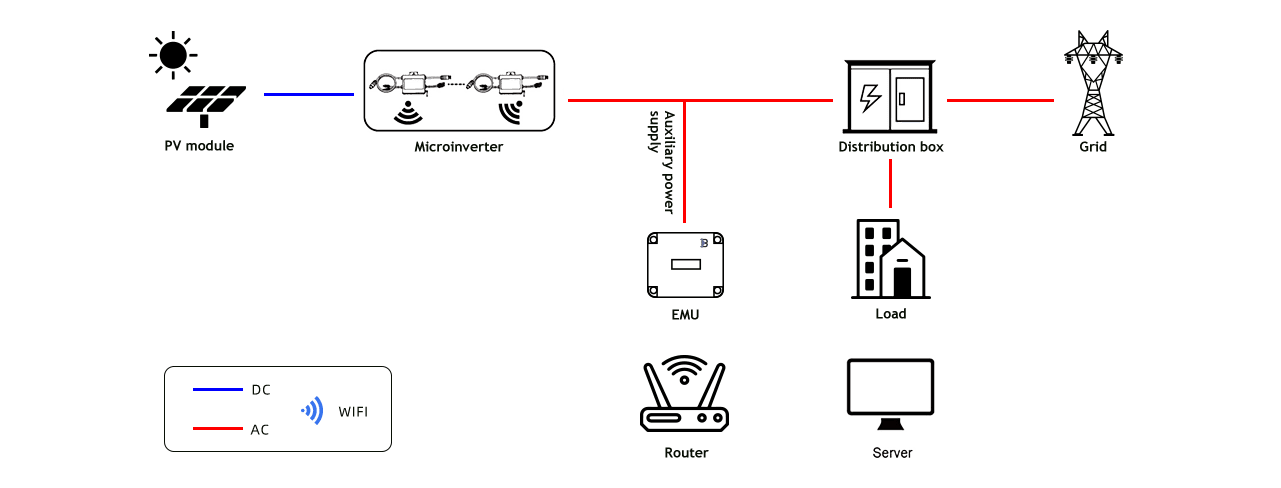

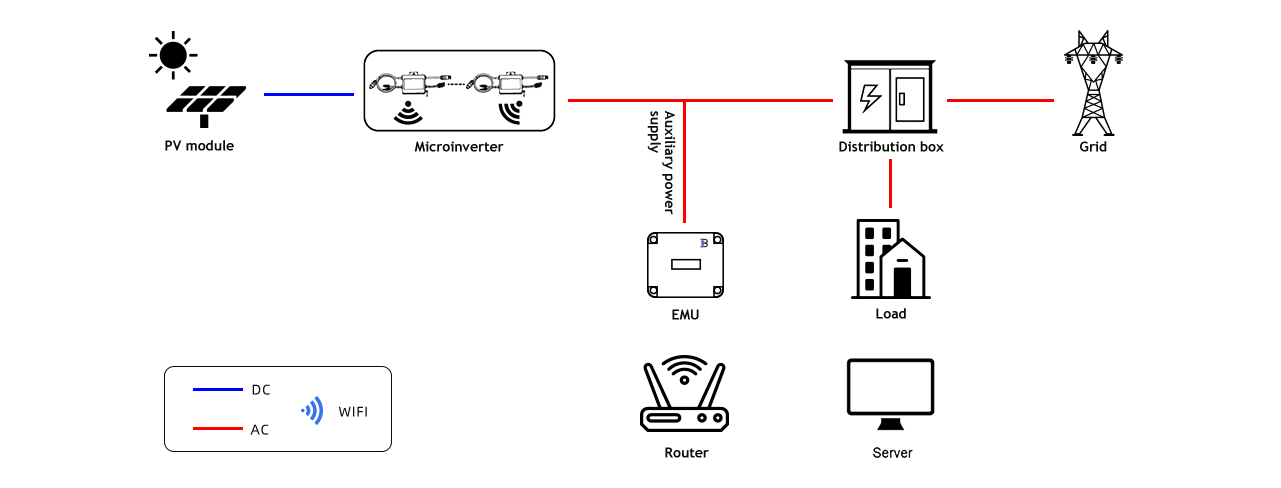

BENY microinverters feature an integrated Energy Monitoring Unit (EMU), empowering users to access and analyze real-time, daily, monthly, and annual production data, alongside module-level problem detection. In the event of a system failure, it can help swiftly pinpoint the issue for the maintenance staff to solve the problem, thereby ensuring the uninterrupted functionality of the system to fulfill power supply requisites.

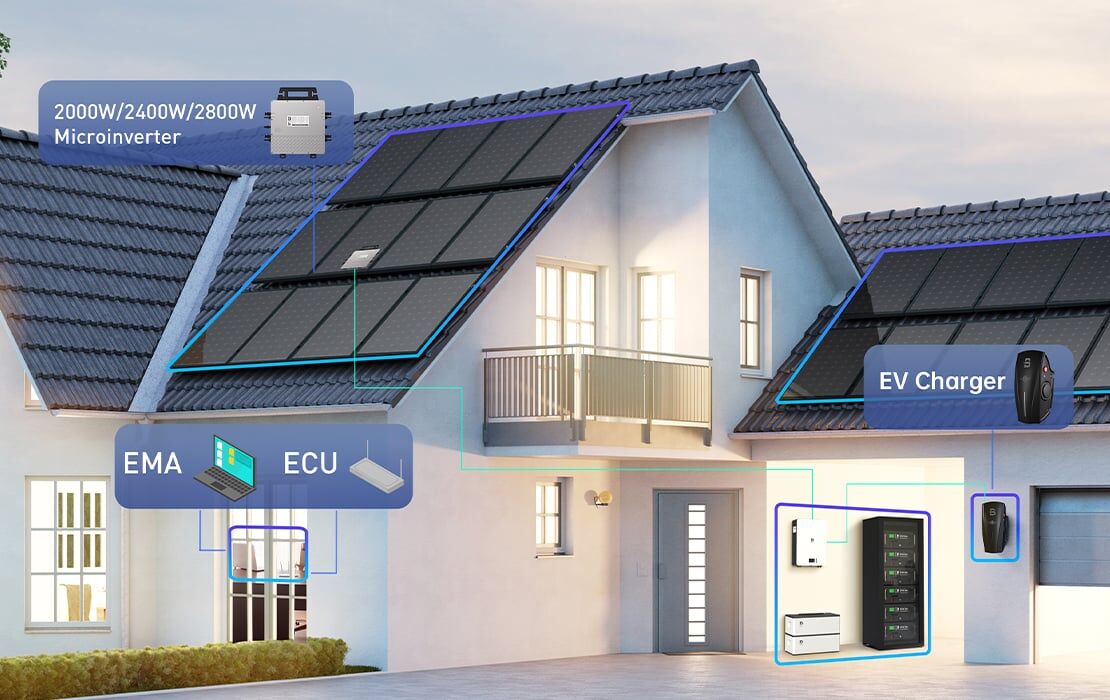

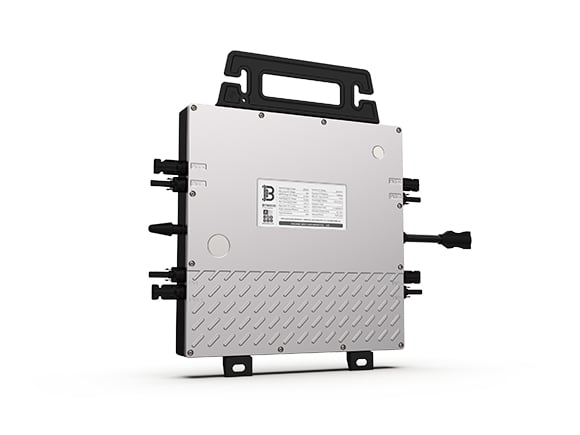

With the rated power of 2800W and high compatiblity of components, BENY microinverters can perfectly meet Commercial&Industrial demands.
Every MPPT works separately to track different parts of the solar panel and it is not affected by the “Buckets Effect”.
One MPPT module can be connected with 2 parallel panels (4 MPPTs with 8 parallel panels) to meet various demands in different scenarios.
