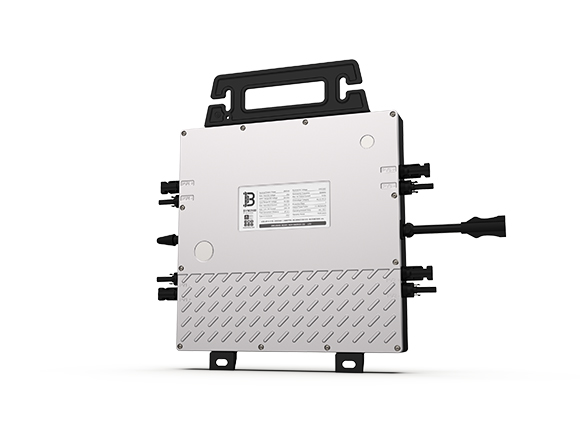

Quad-In Microinverter 2400W

Highlights :

  • Connected to four panels
  • Rated output power 2400VA
  • Peak efficiency 97.5%
  • Maximum short circuit input current 20A x 4
  • Maximum continuous input current 18A x 4
  • Up to 25 years warranty
  • CE-Certified icon
  • TUV 100X100 icon
  • vde logo icon
  • solar microinverter beny

BENY Micro Inverter

The BENY BYM2400 microinverter is designed to connect to 4 panels, providing a rated output power of 2400W. It enables module-level maintenance and management by monitoring the power generation of each module.

Module-level data can be conveniently uploaded to the monitoring platform using BENY data transfer units through PLCC/WIFI communication. This allows for comprehensive monitoring and analysis of the performance of each individual module within the solar system.

  • GAN

Ultra-high output & ultra-high efficiency

The BENY PV BYPO-2 parallel optimizer is an ideal solution for connecting 8 PV modules in parallel. By utilizing the BYPO-2, users can increase the output current of the PV array, resulting in greater overall output power.
The BYPO-2 is characterized by its ultra-low voltage drop and ultra-low loss, effectively addressing issues such as current backflow that can diminish the lifespan or cause damage to parallel-connected PV modules. Furthermore, it significantly improves the MPPT (Maximum Power Point Tracking) efficiency of the parallel-connected PV modules, optimizing their overall performance.

  • Parallel Optimizer Extension 8 in 1 Wiring Diagram


BYPO-2 is a PV parallel optimizer. Users can use BYPO-2 to connect PV modules in parallel to increase the output current of the PV array, thereby obtaining greater output power.


It has the characteristics of ultra-low voltage drop and ultra-low loss, which can solve the problem that the current backflow reduces the life of PV modules or damages PV modules in parallel, and can improve the MPPT efficiency of PV modules in parallel.


  • china micro inverter

Compared with APsystems, Hoymiles, and Deye, BENY Micro-inverter has the most outstanding performance.


BENY Quad-In Micro-inverter has the highest output power (rated, peak), input current (short-circuit, continuous) and conversion efficiency (peak, weighted), far superior to the competition.


VDE-AR-N 4105, EN50549-1, NC RFG, C10/11, INMETRO ABNT ABR 16149/16150/62116, CEI-0-21, AS/NZS 4777, VFR2019, G98, IEC/EN61000, IEC/EN62109

  • Adapted to 60~75 cells/132~150 sub cells PV panels
  • Static MPPT efficiency 99.80%
  • Peak efficiency 97.5%,EURO efficiency 97%
  • High reliability, IP67 (NEMA 6) enclosure, 6000 V surge protection


Input Data(DC)
Model BYM2000 BYM2400 BYM2800
Recommended (450-750)W*4, 60~75 Cell/120~150 Sub Cell
Input Power (STC) (350~550)W*8 parallel, 66~75 Cell/132~150 Sub Cell
MPPT voltage range 24V-50V
Operating voltage range 16V-60V
Maximum Input Voltage 60V
Max. Short Circuit Current 20A*4 24A*4
Max. Input Current 18A*4 20A*4
Output Data(AC)
Rated Output Power 2000VA 2400VA 2800VA
Rated Voltage/range 230V/176-265V
Rated Frequency/range 50Hz/60Hz (46.5-62)Hz
Maximum continuous output current 9.1A 11.0A 12.8A
Maximum Harmonic Distortion <3%
Power Factor >0.99 (Default)
Maximum Connection Number 3 units (32A circuit 2 units (32A circuit 2 units (32A circuit
In One String breaker, 12AWG cable) breaker, 12AWG cable) breaker, 12AWG cable)
Peak efficiency 97.50%
European efficiency 97%
MPPT efficiency >99.8%
Night power consumption <100mW
Other parameters
Communication method PLCC/WIFI Optional
Safety Protection Class I
Enclosure Rating IP67
Operating Temperature -40℃ to +70℃
Storage Temperature -40℃ to +85℃
Relative Humidity 0-98%
Transformer Design High frequency transformer, Electrical isolated
Overvoltage Class OVC III (AC), OVC II (PV)
Dimension(mm) 210*230*34
Weight(kg) 7.96
Warranty Period 10 / 25years Optional
Safety Regulations IEC/EN 61000-6, CISPR11+A1+A2,
IEC/EN 62109-1/2, EN 50549-1:2019
VDE-AR-N 4105:2018/DIN VDE 0124:2020, AS 4777.2 :2020,
INMETRO,UTE C15-712-1/DIN VDE 0126/VFR 2019, G98,
CEI 0-21:2020, NC RFG, NTS DAKKS, etc.

Monitoring Device

Communication with BENY microinverters through PLCC/WIFI enables users to manage

the systems in a smart digital way.
