Single-Plus Microinverter 800W

                    Highlights :
                    Connected to one or two panels
Rated output power 800VA
Peak efficiency 96.5%
Maximum short circuit input current 30A/20A * 2
Maximum continuous input current 26A/13A * 2
Up to 25 years warranty



Download Datasheet Request A Quote

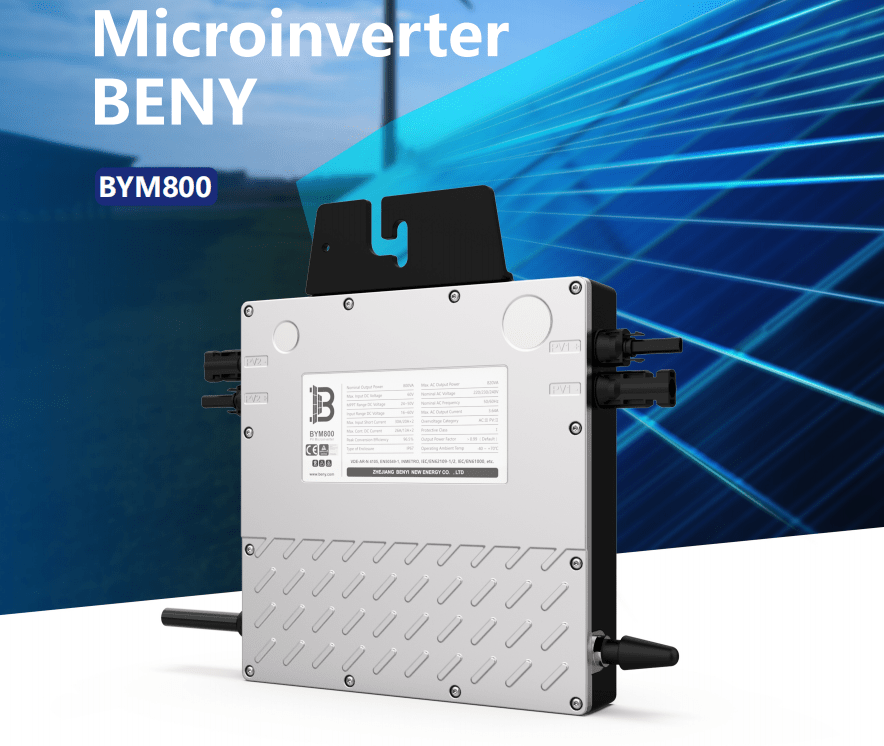

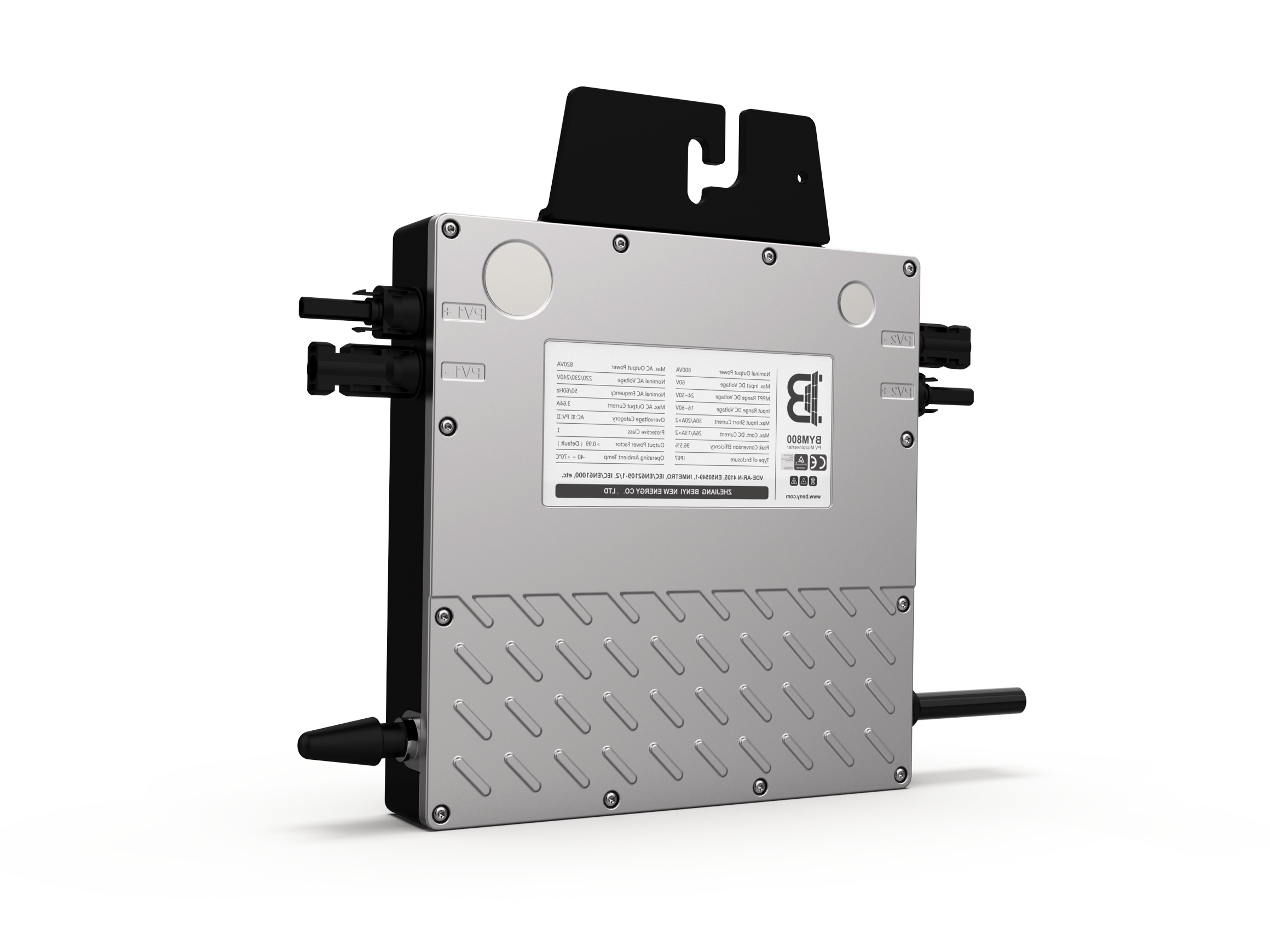

BENY Micro Inverter

With the maximum output power of 820VA , BENY BYM800 microinverter can connect to 1 panel or 2 panels and enable module-level maintenance and management of the PV station by monitoring power generation of each module.

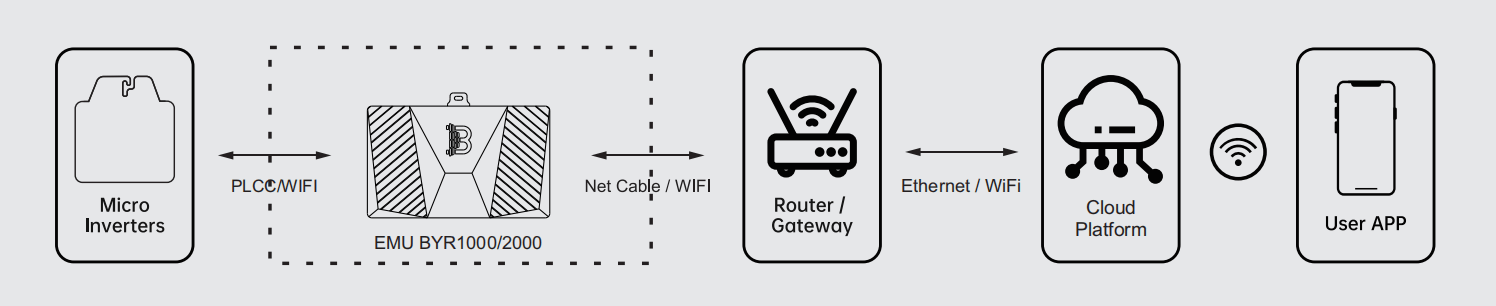

ßModule-level data can be uploaded to the monitoring platform via BENY data transfer units through PLCC/WiFi.

Ultra-high output & ultra-high efficiency

The world’s first mature micro inverter applying GaN, the third-generation semiconductor technology.

FEATURES/ADVANTAGES

Compared with APsystems, Hoymiles, and Deye, BENY Micro-inverter has the most outstanding performance.

BENY Quad-In Micro-inverter has the highest output power (rated, peak), input current (short-circuit, continuous) and conversion efficiency (peak, weighted), far superior to the competition.

Compliance：
VDE-AR-N 4105, EN50549-1, NC RFG, C10/11, INMETRO ABNT ABR 16149/16150/62116, CEI-0-21, AS/NZS 4777, VFR2019, G98, IEC/EN61000, IEC/EN62109

Adapted to 60~75 cells/120~150 sub cells PV panels
Static MPPT efficiency 99.80%
Peak efficiency 97.5%，EURO efficiency 97%
High reliability, IP67 (NEMA 6) enclosure

SPECIFICATION

Input Data(DC)
Model	BYM800
Recommended lnput Power(Single)	(STC)600~700+Wp , 60~75 cells/120~150sub cells
Recommended lnput Power(Dual)	(STC)(350~600 Wp) * 2 , 72~75 cells/144~150 sub cells (NMOT) Vmp≥32V and lmp≤15A
MPPT voltage range	24V-50V
Operating voltage range	16V-60V
Maximum DC input voltage	60V
Maximum short circuit input current	30A * 1 / 20A * 2
Maximum continuous input current	26A * 1 / 13A * 2
Output Data(AC)
Rated Output Power	800W
Maximum Output Power	820VA(Vac≥230,Vmp≥35)
Rated voltage/range	220V/230V/240V/176-265V
Rated frequency/range	50Hz/60Hz (46.5-62)Hz
Maximum continuous output current	3.64A
Maximum harmonic distortion	<3%
Power Factor	>0.99 (Default)
Maximum connection number in one string	6 units（24A circuit breaker, 10AWG cable）
Efficiency
Peak efficiency	96.50%
MPPT Efficiency	>99.8%
Night Power Consumption	<100mW
Other parameters
Communication Method	PLCC/WIFI
Safety Protection	Class I
Enclosure Rating	IP67
Operating Temperature	-40℃ to +70℃
Storage Temperature	-40℃ to +85℃
Relative Humidity	0-98%
Transformer Design	High frequency transformer, Electrical isolated
Overvoltage Class	OVC III (AC), OVC II (PV)
Dimensions(LWH mm)	21821540
Weight（kg）	2.69
Warranty Period	10 / 25years Optional
Safety Regulations	IEC/EN 61000-6, CISPR11+A1+A2, IEC/EN 62109-1/2, EN 50549-1:2019 VDE-AR-N 4105:2018/DIN VDE 0124:2020, AS 4777.2 :2020, INMETRO, UTE C15- 712-1/DIN VDE 0126/VFR 2019, G98, CEI 0-21:2020, NC RFG, NTS DAKKS
