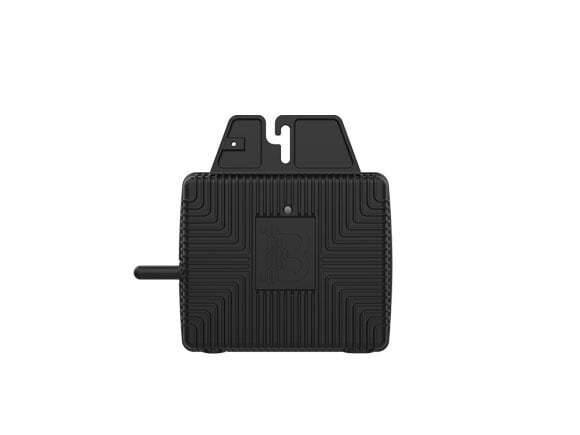

Single-In Microinverter 600W

Highlights :

  • Connected to single panel
  • Rated Output Power 600W
  • Peak Output Power 620VA
  • Peak efficiency 96.5%
  • Maximum short circuit current 20A
  • Maximum continuous current 18A
  • Up to 25 years warranty
  • CE-Certified icon
  • TUV 100X100 icon
  • INMETRO
  • vde logo icon
  • micro inverter beny advantage new

BENY Micro Inverter

BENY BYM500/BYM550/BYM600 microinverter connect to 1 panel and enable module-level maintenance and management of the PV station by monitoring power generation of each module.



Module-level data can be uploaded to the monitoring platform via BENY data transfer units through PLCC/Zigbee.



The products are fully designed, with real materials, the main control chips, power devices, magnetic components and resistance components are all selected from the top international manufacturers, MTBF> 25 years. The structure and heat dissipation design are fully designed to ensure that it can still work at full load when the ambient temperature is 55℃.

  • Parallel Optimizer Extension 2 in 1 Wiring Diagram

Use BENY PV BYPO-2 Parallel Optimizer to connect 2 PV modules

BYPO-2 is a PV parallel optimizer. Users can use BYPO-2 to connect PV modules in parallel to increase the output current of the PV array, thereby obtaining greater output power.



It has the characteristics of ultra-low voltage drop and ultra-low loss, which can solve the problem that the current backflow reduces the life of PV modules or damages PV modules in parallel, and can improve the MPPT efficiency of PV modules in parallel.

FEATURES/ADVANTAGES

  • china micro inverter

Compared with APsystems, Hoymiles, and Deye, BENY Micro-inverter has the most outstanding performance.



BENY Single-In Micro-inverter has the highest output power (rated, peak value), maximum continuous current and warranty years.



Compliance:
VDE-AR-N 4105, EN50549-1, NC RFG, C10/11, INMETRO ABNT ABR 16149/16150/62116, CEI-0-21, AS/NZS 4777, VFR2019, G98, IEC/EN61000, IEC/EN62109

  • Suitable for 60, 66, 72, 75 cell or 120, 132, 144, 150 half-cell type PV panels
  • Static MPPT efficiency 99.80%
  • Peak efficiency 96.5%
  • EURO efficiency 96%
  • High reliability, IP67 (NEMA 6) enclosure, 6000 V surge protection

SPECIFICATION

Input Data(DC)
Model BYM500 BYM550 BYM600
Recommended

Input Power (STC)

(400~700)W Single, 60~75 full/120~150 sub cells

(300~450)W*2 Parallel, 72~75 full/144~150 sub cells

MPPT voltage range 24V-50V
Operating voltage range 16V-60V
Maximum DC input voltage 60V
Maximum short circuit input current 20A
Maximum continuous input current 18A
Output Data(AC)
Rated Output Power 500VA 550VA 600VA
Peak output power 520VA (Vac≥230,Vmp≥34) 570VA (Vac≥230,Vmp≥35) 620VA (Vac≥230,Vmp≥36)
Nominal voltage/range 230V/176-265V
Nominal frequency/range 50Hz/60Hz (46.5-62)Hz
Maximum continuous output current 2.27A 2.5A 2.73A
Harmonic Distortion <3%
Power Factor >0.99 (default)
Maximum number of branch connections 8 units (24A circuit breaker, 10AWG cable)
Efficiency
Peak efficiency 96.50%
European efficiency 96%
MPPT efficiency >99.8%
Night power consumption <100mW
Other parameters
Communication method PLCC/Zigbee Optional
Safety protection class Class I
Enclosure rating IP67
Operating temperature -40℃ to +70℃
Storage temperature -40℃ to +85℃
Relative humidity 0-98%
Transformer design High frequency transformer, Electrical isolated
Overvoltage class OVC III (AC), OVC II (PV)
Dimension(mm) 210*230*34
Weight(kg) 2.39
Warranty 10 / 25years Optional
Safety Regulations IEC/EN 61000-6, CISPR11+A1+A2, IEC/EN 62109-1/2,

EN 50549-1:2019 VDE-AR-N 4105:2018/DIN VDE

0124:2020, AS 4777.2 :2020, INMETRO, UTE C15-

712-1/DIN VDE 0126/VFR 2019, G98, CEI 0-21:2020,

NC RFG, NTS DAKKS.

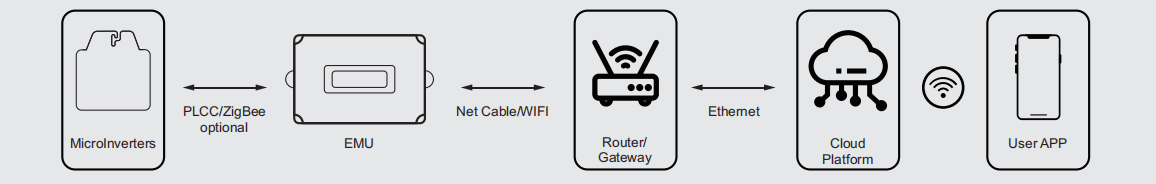

Monitoring Device

Communication with BENY microinverters through PLCC/Zigbee enables users to manage

the systems in a smart digital way.
