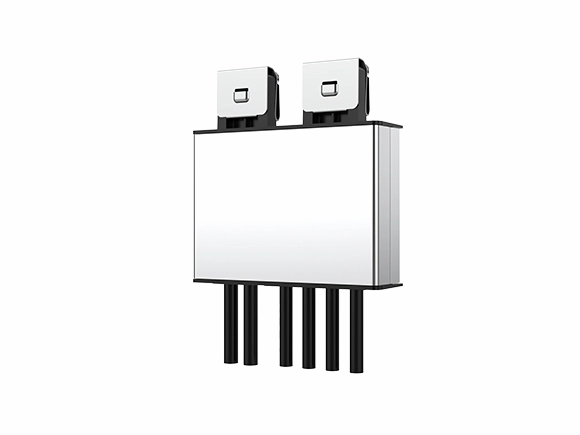

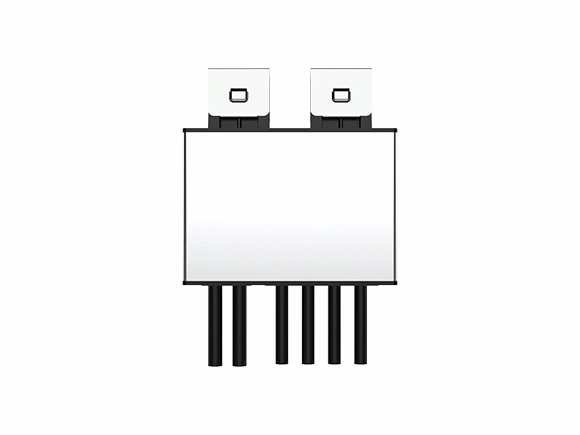

Module-Level Rapid Shutdown Device BFS-A1 With Aluminum Enclosure

BFS-A1 is a rapid shutdown switch for connection to PV panel arrays to achieve compliance with 2014 NEC 690.12 and 2017 NEC 690.12.

                    Highlights :
                    Module Level Rapid Shutdown
Manual Shutdown by Button Switch
Automatic Shutdown on AC Power Loss
Improved Heat Dissipation with Aluminum Casing
Over temperature (>100℃) Automatic Shutdown
Compatible with Most String Inverters and Panels
No cross-talk with Inverter or WIFI
Shutdown Panels to 0V at 8μs
5 Years Warranty



Download Datasheet Request A Quote

Application

BFS-A1, a module-level solar rapid shutdown device, ensures fire safety for solar installations by maintaining continuous rapid shutdown functionality throughout the PV system’s lifespan.
With automatic shutdown at temperatures exceeding 100℃, it requires no setup, is compatible with any string inverter, and offers flexibility in positioning.
The emergency switch unit allows for Manual Emergency Shutdown and responds to local or area grid shutdowns.

How the solution works?

PV RAPID SHUTDOWN DEVICE SOLUTIONS
For NEC 2017/2020 compliance,if the PV panel >40V,1-to-1 configuration should be required in order to meet regulatory compliance.

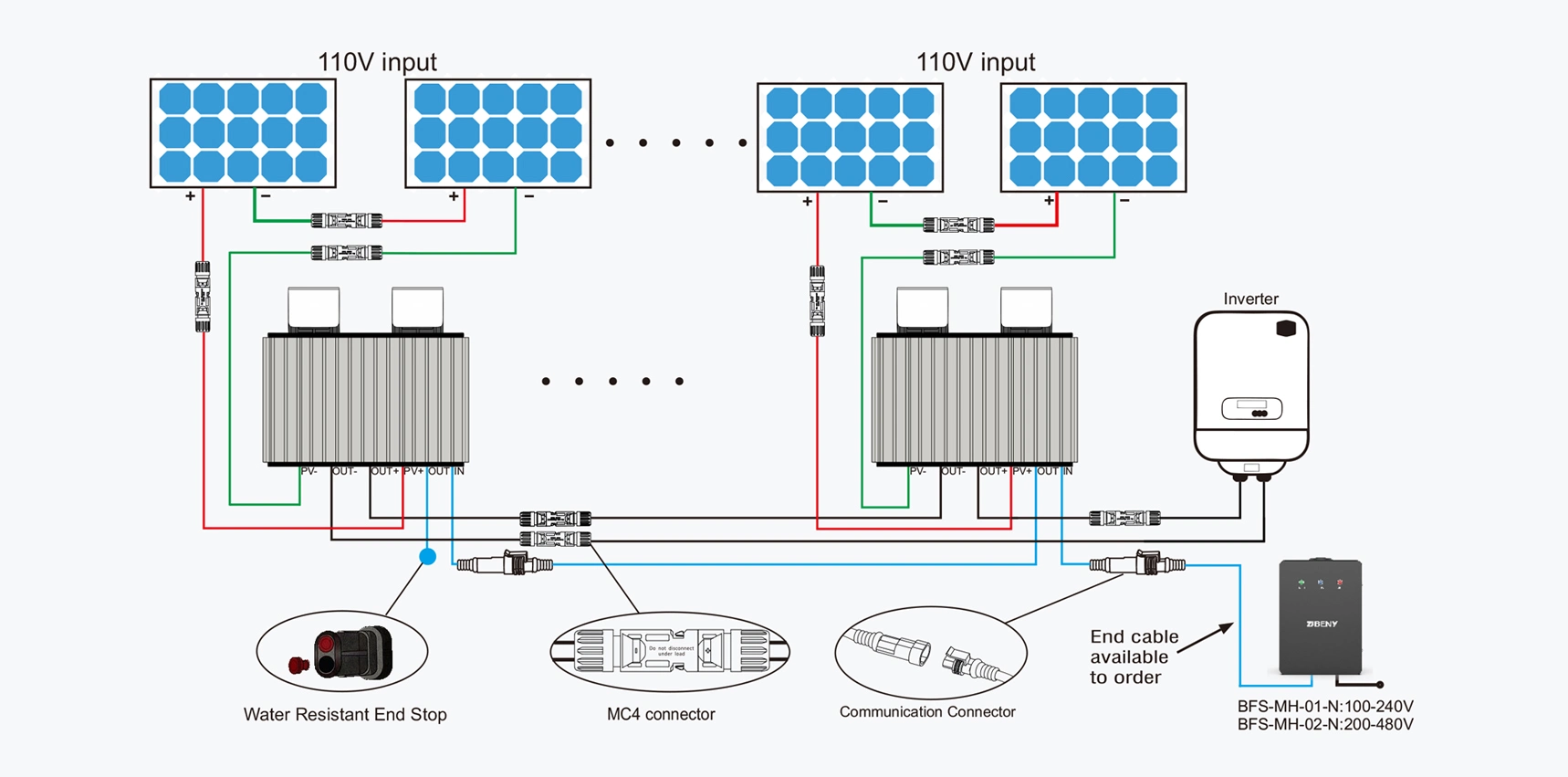

The diagram below illustrates a typical 1-to 1 configured BFS protected installation using three solar panels and three BFS-A1. One more thing on the rooftop is the connection of BFS-11/BFS-12 RSD and the button switch via a communication cable.

FEATURES/ADVANTAGES

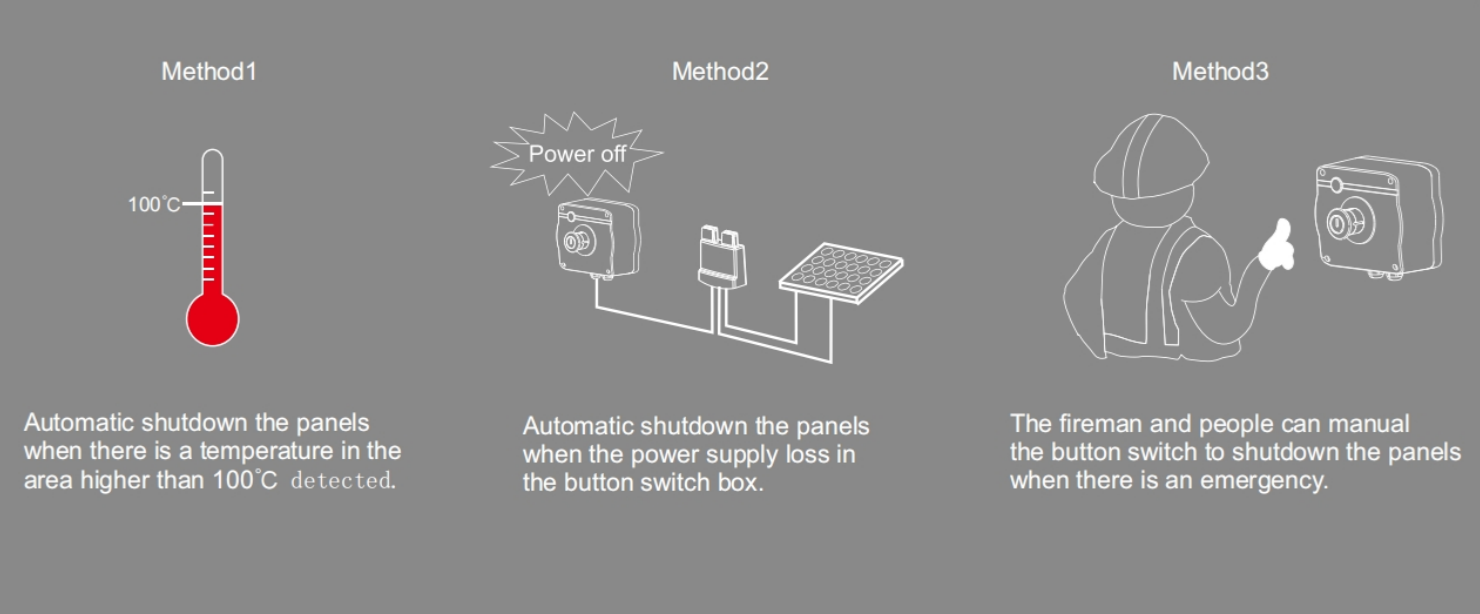

A complete RSD solution

Automatically shut down the panels upon detecting a temperature in the area exceeding 100℃.
Automatically shut down the panels in the button switch box in case of AC power supply loss.
The firefighter can manually use the button switch to shut down the panels in case of an emergency.

Case Study

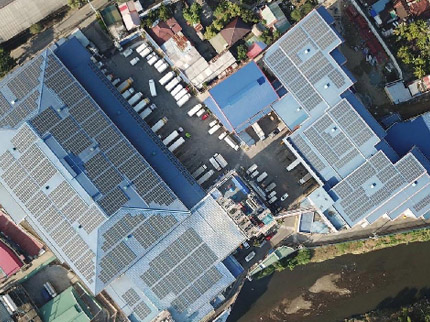

Philippines with 1.2MW solar installation
Philippines with 1.2MW solar installation

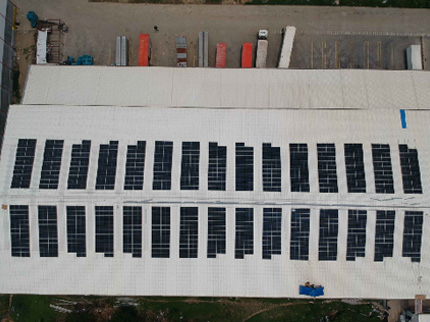

Philippines with 200kwp solar installation

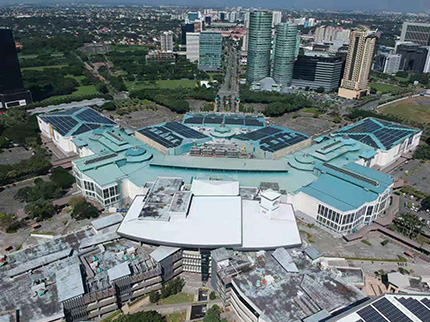

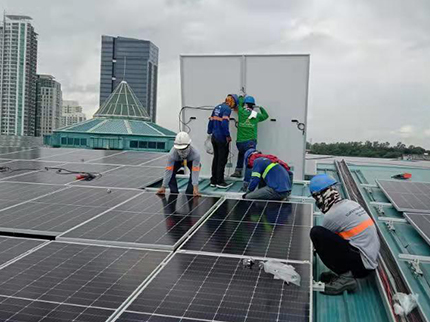

Festival Supermall Alabang Solar Rooftop 2.8MW
Festival Supermall Alabang Solar Rooftop 2.8MW
Pampanga, Philippines 1.3MW

SPECIFICATION

Model	BFS-A1
Maximum Input Voltage	110V
Maximum Input Current	20A
Maximum Power（Input1+Input2）	2200W
PV Input and Output Cables	4.0mm²（12AWG） Cables + MC4 Connectors
PV Input Cables Length	180mm
PV Output Cables Length	1800mm
IP Protection	IP68
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Standard Compliance	EN 62109-1:2010, EN 61058-1:2018
PV Connectors	Staubli MC4 (Standard) Jinko connectors for option
DC Power Supply for each RSD
Voltage Range	14V ~ 28V
Maximum Current	8mA
Maximum Power	0.15W
Power Supply Cables (Signal Cables)	2×0.823mm² (18AWG) Signal Cables + Signal Connectors
Power Supply Cables Length	1800mm
