1000V DC Combiner Box 6 In 2 Out BHS-6/2

IP65 DC string box is designed for 6 string PV system.

                    Highlights :
                    1000V DC
6 Input 2 Output
IP65



Download Datasheet Request A Quote

6 Input 2 Output 1000VDC

IP65 DC string box is designed for 6 string PV system.

For surge protection and over-load protection at solar DC side.

RELATED COMPONENTS

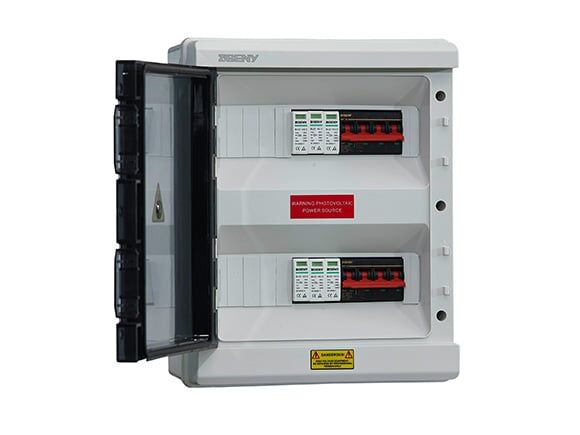

combiner box 6 2 2

DC Mini Circuit Breaker 1200V 63A BB1-63 IEC&AS

UL489B design, IEC60947-2 PV standard
Over-load, short circuit Protection
Non Polarity for easier wiring
Anti re-flux protection

DC SPD Type2 1000V BUD-40/3 IEC

New IEC 61643, UL1449
Designed for solar PV protection
Higher capacity In 20KA ( IEC, UL )
Response time <25ns

SPECIFICATION

Specification
Model Number	BHS-6/2
Input	6 strings
Output	2 strings
Max Voltage	1000V
Rated Current of DC Breaker	40A/40A
Max Current Output	63A/63A

Enclosure
Material	Poly carbonate/ABS
Degree of Protection	IP65
Impacts	IK10
Dimensions	L302W373H131mm
Input Cable Glands	PG09, 2.5-16
Output Cable Gland	PG21, 2.5-16

Environment
Operating temperature	-25℃ – +60℃
