Home Products Combiner Box 1000V DC Combiner Box Solar DC String Box DC 1000V BHS-1/1

Solar DC String Box DC 1000V BHS-1/1

Customized solutions are available for different projects requirements

                    Highlights :
                    1000V DC
1 Input 1 Output
Maximum Current Output: 15A
Max DC Short Circuit Current Per Input(Isc): 15A(Changeable)



Download Datasheet Request A Quote

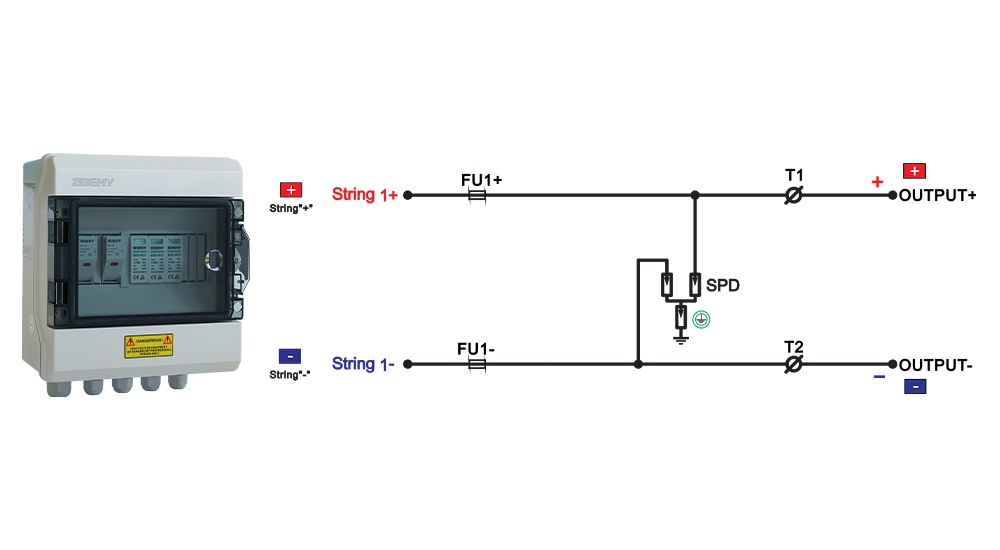

1 Input 1 Output 1000VDC

IP65 DC string box is designed for 1 string PV system.

For surge protection and over-load protection at solar DC side.

RELATED COMPONENTS

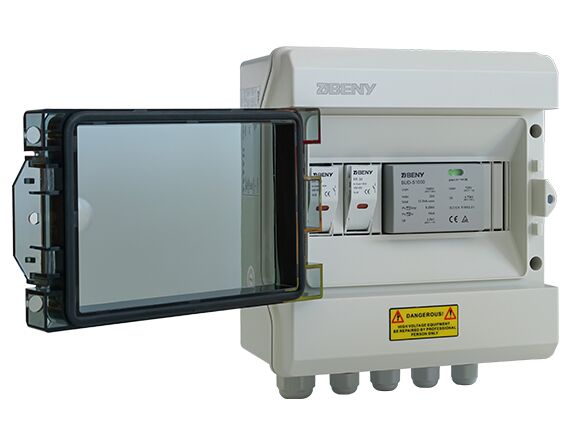

Solar DC String Box BHS-1/1 0018 DSC04871

DC Fuse Holder 1000V 30A BR-30 IEC

1000V 30A
LED Indicator
UL, CE, CB

DC SPD Type2 1000V BUD-40/3 IEC

EN 50539 Type 2
Maximum Discharge Current 40 KA
TUV, CE

SPECIFICATION

Model	BHS-1/1
Input	1 string
Output	1 string
Maximum Voltage	1000V
Maximum Current Output	15A
Max DC Short Circuit Current Per Input (Isc)	15A (Changeable)
Degree of Protection	IP65
