Solar DC String Box BHS-2/2

Customized solutions are available for different projects requirements

                    Highlights :
                    1000V DC
2 Input 2 Output
Maximum Current Output: 15A
Max DC Short Circuit Current Per Input(Isc): 15A(Changeable)



Download Datasheet Request A Quote

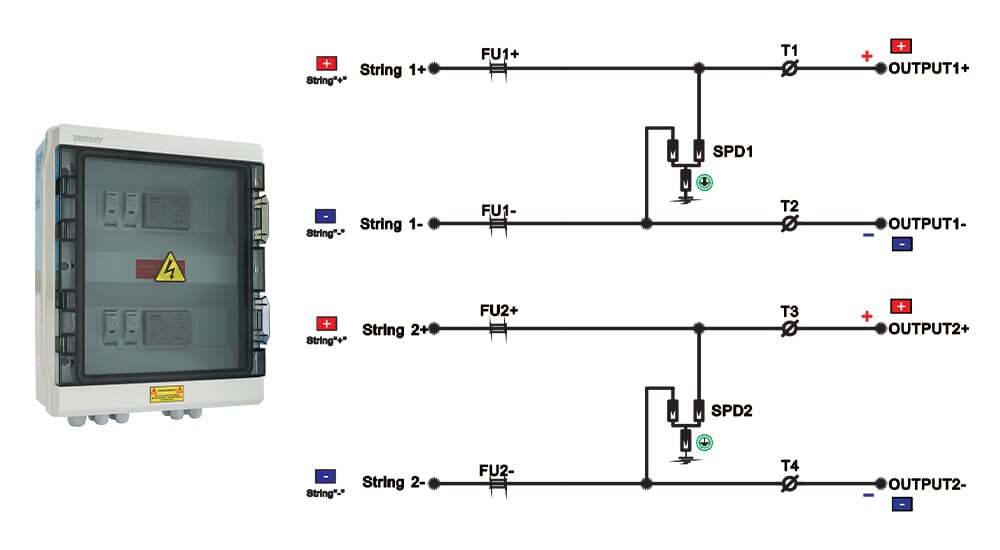

2 Input 2 Output 1000VDC

IP65 DC string box is designed for 2 strings PV system.

For surge protection and over-load protection at solar DC side.

RELATED COMPONENTS

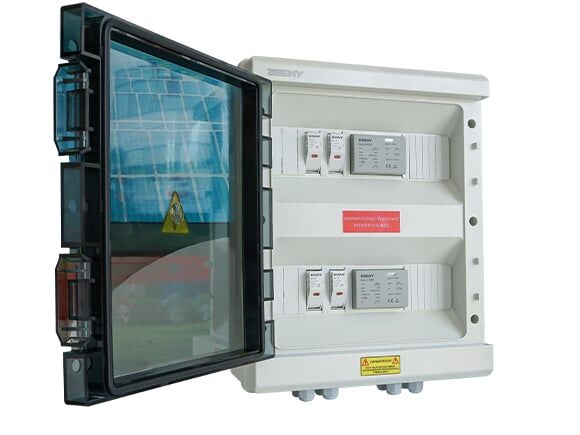

Solar DC String Box BHS-2/2 0004 DSC04891

DC Fuse Holder 1000V 30A BR-30 IEC

1000V 30A
LED Indicator
UL, CE, CB

DC SPD Type 1+2 1000V BUD-S1000 IEC

EN 50539 Type1+2
Maximum Discharge Current 40 KA
TUV, CE

SPECIFICATION

Model	BHS-2/2
Input	2 strings
Output	2 strings
Maximum Voltage	1000V
Maximum Current Output	15A
Max DC Short Circuit Current Per Input(Isc)	15A(Changeable)
Degree of Protection	IP65
