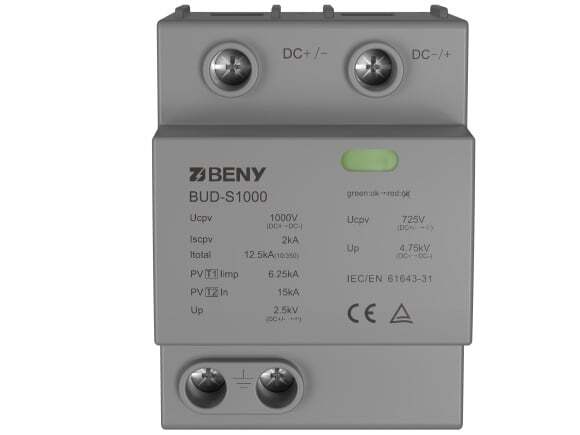

  • DC SPD Type 1+2 1000V BUD S1000 02

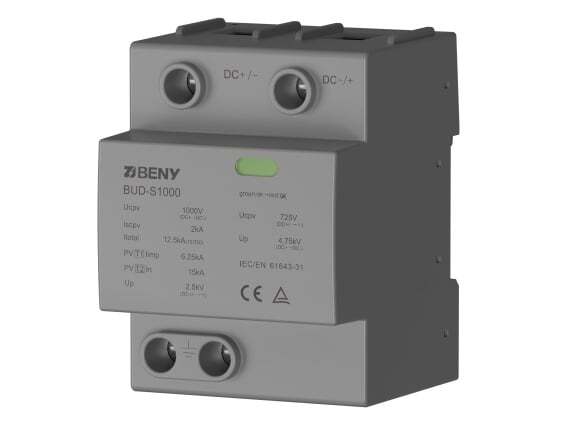

  • DC SPD Type 1+2 1000V BUD S1000 03
  • DC SPD Type 1+2 1000V BUD S1000 04

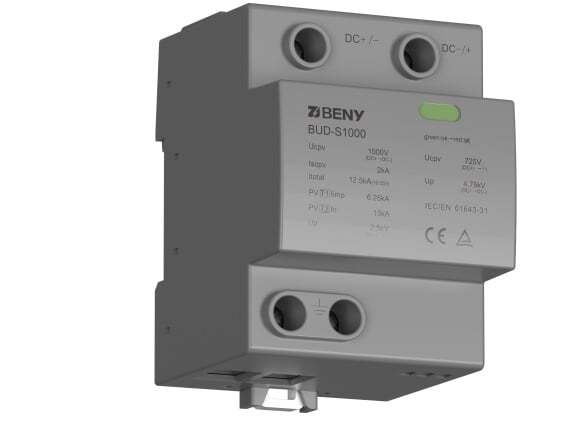

  • DC SPD Type 1+2 1000V BUD S1000 05
  • DC SPD Type 1+2 1000V BUD S1000 06
  • DC SPD Type 1+2 1000V BUD S1000 01
  • DC SPD Type 1+2 1000V BUD S1000 02
  • DC SPD Type 1+2 1000V BUD S1000 03
  • DC SPD Type 1+2 1000V BUD S1000 04
  • DC SPD Type 1+2 1000V BUD S1000 05
  • DC SPD Type 1+2 1000V BUD S1000 06

DC SPD Type 1+2 1000V BUD-S1000 IEC

BENY New Energy BUD-S1000 DC Surge Protector 1000V Type1 + Type 2 Surge Protective Devices DC SPD TUV/CE Certified

Highlights :

  • Type 1+2 DC SPD for 1000V solar photovoltaic application
  • According to IEC 61643-31:2018
  • Thermal disconnect for fault indication
  • Remote signal contact for options
  • RoHS material
  • 5 years warranty
  • rohs
  • TUV 100X100 icon
  • CE-Certified icon

Lightning/ Surge Protector type 1 + type 2 at 1000VDC to protect the solar PV circuit from over-voltage or directly lightning damage

The 1000V T1+2 DC SPD BUD-S1000 is developed according to the newest PV standard IEC 61643-31:



Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.



Remote status signaling (BUD-S1000R) is optional

SPECIFICATION

Model BUD-S1000
Number of ports 1
SPD according to IEC 61643-31 Type 1+2
Max PV Voltage (DC+ –> DC-) Ucpv ≤1000V
Max PV Voltage (DC+ /DC- –> PE) Ucpv ≤725V
Short-circuit current rating 2kA
Total discharge current (8/20 µs) [(DC+/DC-) –> PE] (Itotal) 30kA
Total discharge current (10/350 µs) [(DC+/DC-) –> PE] (Itotal) 12.5KA
Nominal discharge current (8/20 µs) [(DC+/DC-) –> PE] (Itotal) 15kA
Lightning impulse current (10/350 µs) 6.25kA
Voltage protection level (DC+/DC-) –> PE Up 2.5kV
Voltage protection level (DC+ –> DC-) Up 4.75kV
Response time  (tA) ≤ 25ns
Operating state / fault indication Green / Red
Din rail 35mm DIN rails
Degree of protection IP20
Certificate TUV / CE
