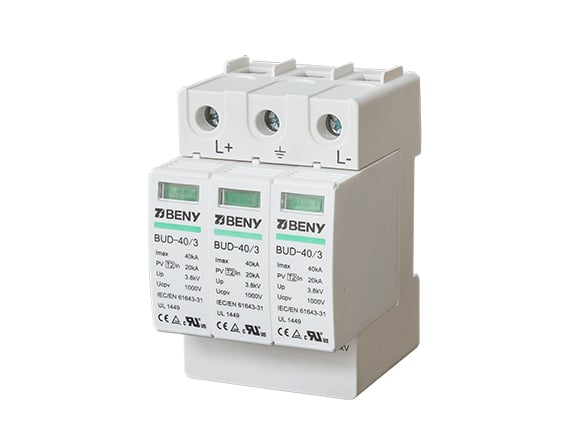

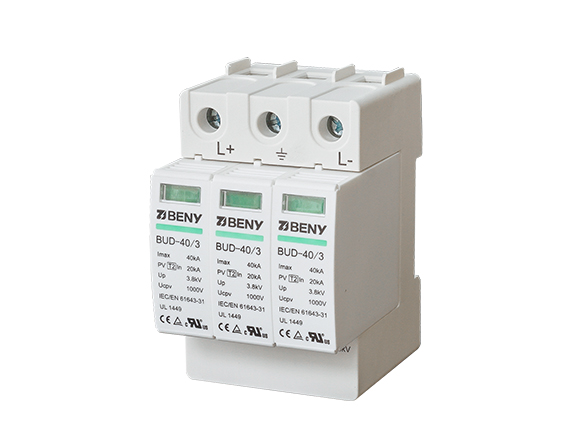

DC SPD Type2 1000V BUD-40/3 UL Version

BENY Electric BUD-40/3 DC Surge Arrester 1000V Type 2 Surge Protective Devices DC SPD UL1449

Highlights :

  • Suitable For Use in All Photovoltaic Systems
  • Comply with : IEC/EN 61643-31/UL 1449
  • Plug-in Protection Module, Easily Installation and Maintainance
  • High Energy Varistor, Response Time Less Than 25 Nanosecond
  • rohs
  • cURus
  • TUV 100X100
  • CE-Certified icon

Application

PV DC BUD-40/3 Surge Protection Device was designed and manufactured, complying the PV standard IEC/EN 61643-31/UL1449, It widely used in PV DC combiner box, inverter, controller, and PV DC cabinet.



Rated voltage 1000V DC, Maximum discharge current 40KA, High Energy Varistor, high effective for lightning protection.

SPECIFICATION

Model BUD-40/3
Pole 3P
Standard IEC/EN 61643-31/UL 1449
Category IEC/EN IEC II/EN2
Open Voltage

Uoc Max

1000V DC



Max Continuous Operational Voltage

Uc

1000V DC



Nominal Discharge Current

In(8/20)μs

20KA



Maximum Discharge Current

Imax(8/20)μs

40KA
Voltage Protection Level

Up

≤3.8KV
Response Time ≤25ns
Operating Temperature Range

(TU)

-40°C~+80°C



For Mounting on TH35-7.5/DIN35
Relative Humidity 30%~90%
