DC SPD Type2 600V BUD-40/2 IEC

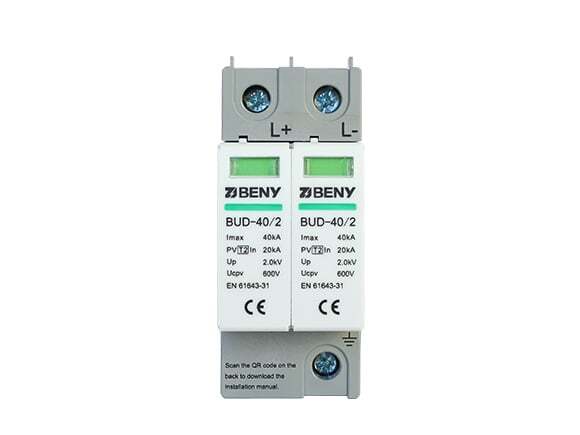

BENY Electric BUD-40/2 DC Surge Protector 600V Type 2 Surge Protective Devices DC SPD TUV Certified

Highlights :

  • RoHS material
  • 600V Type 2 DC SPD for solar PV application
  • According to EN 50539-11, IEC 61643-31
  • Thermal disconnect inside for fault indication
  • 5 years warranty
  • rohs
  • TUV 100X100
  • CE-Certified icon

SPECIFICATION

Model BUD-40/2
Moulds 2
SPD according to EN 50539-11 Type 2
Open Voltage Uoc Max 600V
Max. discharge current (8/20 µs) [(DC+/DC-) –> PE] (Imax ) 40KA
Nominal discharge current (8/20 µs) [(DC+/DC-) –> PE] (In ) 20KA
Voltage protection level  Up ≤ 3.8KV
Response Time (tA ) ≤ 25 ns
Operating state / fault indication Green/Red
Remote Signalling Contact (optional) Changeover contact
For mounting on 35mm DIN rails
Degree of protection IP20
Certificate TUV
