Solar DC String Box DC 1000V BHS-2/2

Customized solutions are available for different projects requirements

Highlights :

  • 1000V DC
  • 2 Input 2 Output
  • Maximum Current Output: 15A
  • Max DC Short Circuit Current Per Input(Isc): 15A(Changeable)

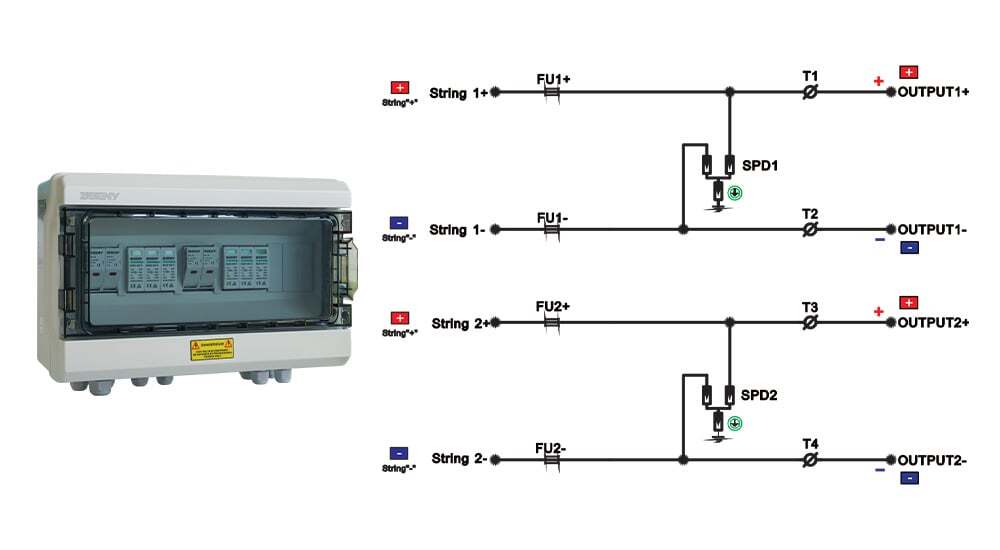

  • 04

2 Input 2 Output 1000VDC

IP65 DC string box is designed for 2 strings PV system.

For surge protection and over-load protection at solar DC side.

RELATED COMPONENTS

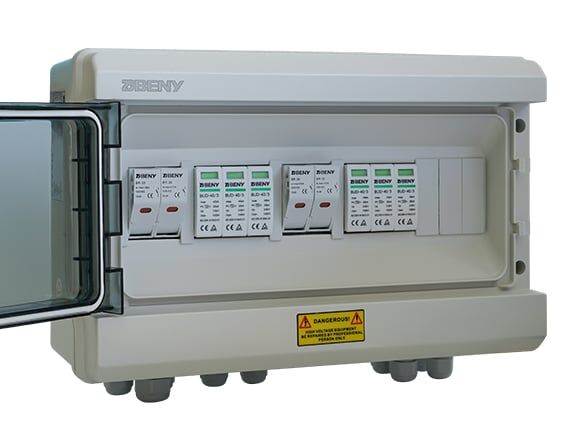

Solar DC String Box DC 1000V BHS-2/2 0008 DSC04886
DC Fuse Holder 1000V 30A BR-30 IEC
  • 1000V 30A
  • LED Indicator
  • UL, CE, CB
DC SPD Type2 1000V BUD-40/3 IEC
  • EN 50539 Type 2
  • Maximum Discharge Current 40 KA
  • TUV, CE

SPECIFICATION

Model BHS-2/2
Input 2 strings
Output 2 strings
Maximum Voltage 1000V
Maximum Current Output 15A
Max DC Short Circuit Current Per Input (Isc) 15A (Changeable)
Degree of Protection IP65
