BENY New Energy BYSS DC Disconnect Switch 1000V DC 50A 2P 4P 6P 8P Solar Isolator Switch UL508i Listed

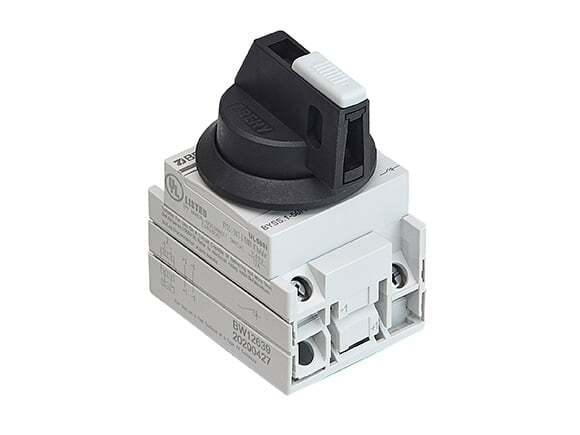

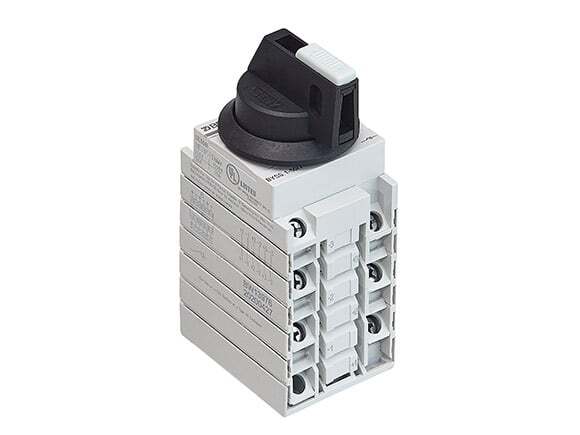

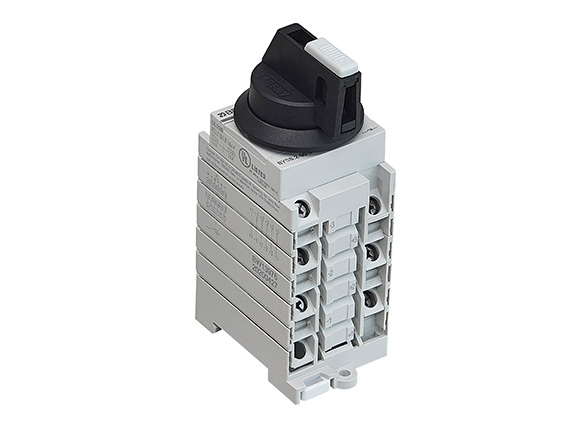

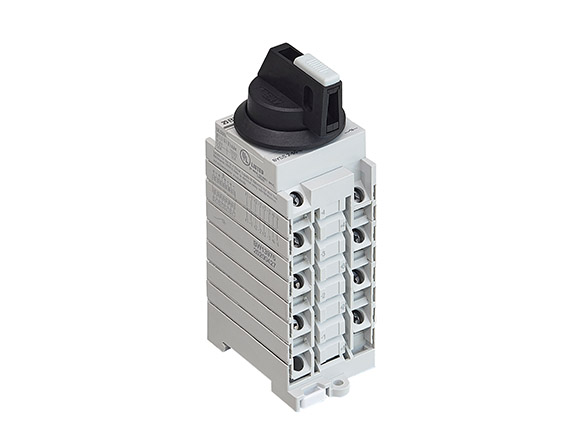

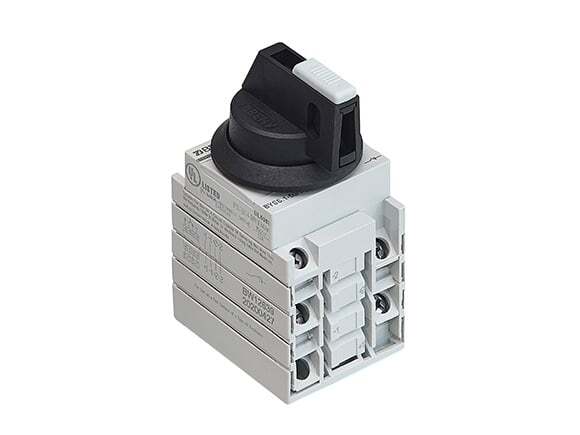

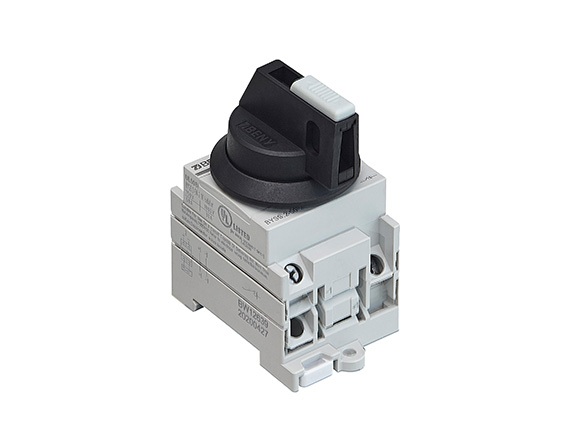

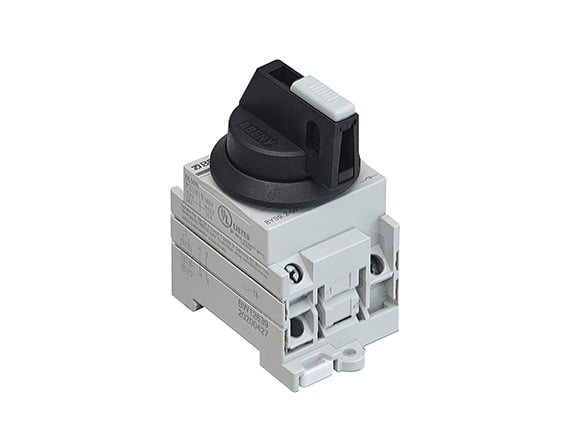

The BYSS.1-50/T (panel mounting) and BYSS.2-50 (din rail mounting) DC switches are developed for solar PV high power voltage.
Compact body design is for solar inverter DC side, solar combiner box and battery energy storage systems application.
Patented arc extinguishing chamber ensure safety and longer working life.
350V 500V 600V 750V voltage levels at a direct current range from 16A to 50A.
1000V max with current from 16A to 30A.
| Model | BYSS.1 -50/T, BYSS.2-50 |
| Poles | 2P 4P 6P 8P |
| Rated Operational Voltage (Ue) | 350V,500V,600V,750V,1000V |
| Rated Current | 16A-50A |
| Certificate | UL508i Listed |
| Mechanical Cycle | 10000 |
| Electrical Cycle | 6000 |
