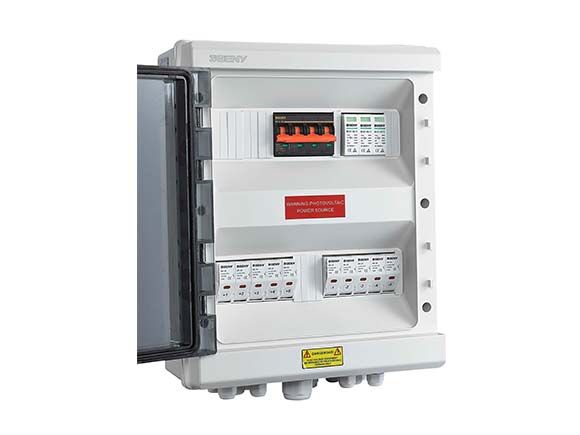

  • BHS 5 OPEN
  • BHS 5
  • BHS 5 OPEN

1000V DC Combiner Box 5 In 1 Out BHS-5-1

BENY New Energy BHS-5/1 1000V DC Solar PV Combiner Box 5 In 1 Out 63A DC Isolator Switch for On/Off Grid Solar Panel System

Highlights :

  • 1000V
  • 5 strings input, 1 string output
  • DC Switch up to 1000V 63A
  • TUV certificate
  • rohs
  • TUV 100X100 icon

1000V DC combiner box for solar PV systems

BHS-5/1 DC combiner box at 1000V voltage installed between solar panels and solar inverter.


For protect the solar DC circuit from over-current and over-voltage damage, longer the solar system working life and improve the system safety.


Equipped with the most reliable DC components bring maximum protection.


Modular Enclosure 26-way BX-26
  • IP65 protect degree for outdoor and indoor
  • UV resistance, flame retardant PC material
  • Dimension 292*370*132mm
DC SPD Type2 1000V BUD-40/3 IEC
  • Over-voltage protection
  • 1000V 40KA
  • IEC61643 / EN50539
  • Recommend by top inverter brands
DC Fuse Holder 1000V 30A BR-30 IEC
  • Over-current protection
  • LED indicator
  • Finger safe touch
  • 10x38mm LITTEL 1000V 15A


Model BHS-5/1
Certificate TUV
Voltage IEC60947.3,AS60947.3:2018
Warranty 5 Years for any quality problems
Protection Degree IP65
Dimension 292*370*132mm
