1000V DC Combiner Box 4 In 2 Out BHS-4-2

BENY Electric BHS-4/2 1000V DC Solar PV Combiner Box 4 In 2 Out 32A DC Isolator Switch for On/Off Grid Solar Panel System

Highlights :

  • 1000V
  • 4 strings input, 2 strings output
  • TUV certificate
  • DC Switch up to 1000V 32A
  • rohs
  • TUV 100X100

1000V DC combiner box for solar PV systems

BHS-4/2 DC combiner box at 1000V voltage installed between solar panels and solar inverter.



For protect the solar DC circuit from over-current and over-voltage damage, longer the solar system working life and improve the system safety.



Equipped with the most reliable DC components bring maximum protection.

RELATED COMPONENTS

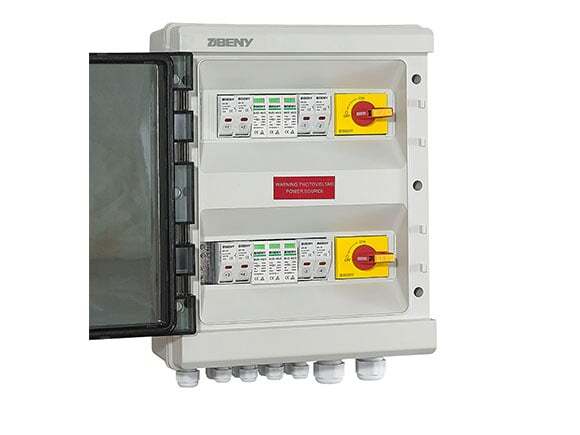

BHS 4 2 open
Modular Enclosure 26-way BX-26
  • IP65 protect degree for outdoor and indoor
  • UV resistance, flame retardant PC material
  • Dimension 292*370*132mm
DC SPD Type2 1000V BUD-40/3 IEC&UL
  • Over-voltage protection
  • 1000V 40KA
  • IEC61643 / EN50539
  • Recommend by top inverter brands
DC Fuse Holder 1000V 30A BR-30 IEC
  • Over-current protection
  • LED indicator
  • Finger safe touch
  • 10x38mm LITTEL 1000V 15A

SPECIFICATION

Model BHS-4/2
Certificate TUV
Voltage IEC60947.3,AS60947.3:2018
Warranty 5 Years for any quality problems
Protection Degree IP65
Dimension 292*370*132mm
