1000V DC Combiner Box 3 In 1 Out BHS-3-1

BENY Electric BHS-3/1 1000V DC Solar PV Combiner Box 3 In 1 Out 32A DC Isolator Switch for On/Off Grid Solar Panel System

Highlights :

  • 1000V
  • 3 strings input, 1 string output
  • DC Switch up to 1000V 32A
  • TUV certificate
  • rohs
  • TUV 100X100 icon

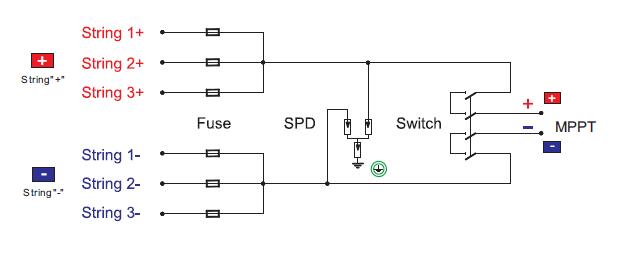

  • BHS 3 接线图

1000V DC combiner box for solar PV systems

BHS-3/1 DC combiner box at 1000V voltage installed between solar panels and solar inverter.


For protect the solar DC circuit from over-current and over-voltage damage, longer the solar system working life and improve the system safety.


Equipped with the most reliable DC components bring maximum protection.

Enclosure: BX-15

* IP65 protect degree for outdoor and indoor


* UV resistance, flame retardant PC material


* Dimension 331*210*122mm

Type 2 DC Surge Arrester: BUD-40/3

* Over-voltage protection


* 1000V 40KA


* IEC61643 / EN50539


* Recommend by top inverter brands

DC Fuse: BR-30

* Over-current protection


* LED indicator


* Finger safe touch


* 10x38mm LITTEL 1000V 15A


Model BHS-3/1
Certificate TUV
Voltage IEC60947.3,AS60947.3:2018
Warranty 5 Years for any quality problems
Protection Degree IP65
Dimension 331*210*122mm
