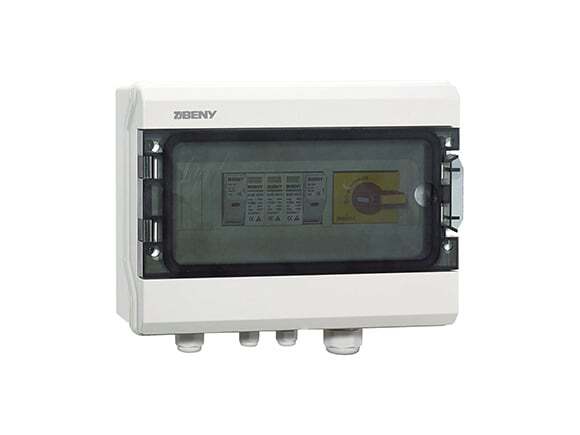

1000V DC Combiner Box 1 In 1 Out BHS-1-1

BENY Electric BHS-1/1 1000V DC Solar PV Combiner Box 1 In 1 Out 32A DC Isolator Switch for On/Off Grid Solar Panel System

Highlights :

  • 1000V DC
  • 1 string input, 1 string output
  • DC Switch up to 1000V 32A
  • TUV certificate
  • TUV 100X100 icon
  • rohs

1000V DC String Box for one string solar PV systems

BHS-1/1 DC string box at 1000V voltage installed between solar panels and solar inverter.


For protect the solar DC circuit from over-current and over-voltage damage, longer the solar system working life and improve the system safety.


Equipped with the most reliable DC components bring maximum protection.


BHS 1 1
Modular Enclosure 13-way BX-13
  • IP65 protect degree for outdoor and indoor
  • UV resistance, flame retardant PC material
  • Dimension 292*220*120(H) mm
DC SPD Type2 1000V BUD-40/3 IEC
  • Over-voltage protection
  • 1000V 40KA
  • IEC61643 / EN50539
  • Recommend by top inverter brands
DC Fuse Holder 1000V 30A BR-30 IEC
  • Over-current protection
  • LED indicator
  • Finger safe touch
  • 10x38mm LITTEL 1000V 15A


Model BHS-1/1
Certificate TUV
Voltage IEC60947.3,AS60947.3:2018
Warranty 5 Years for any quality problems
Protection Degree IP65
Dimension 292*220*120mm
