600V/1000V Door Clutch DC Box 3 In 3 Out BHS-3/3

3 input 3 output 600VDC / 1000VDC Door Clutch DC Box

Highlights :

  • 3 In 3 Out
  • 600VDC / 1000VDC
  • UL508i Approval, IEC60947-3 PV2
  • IP66 Enclosure
  • TUV 100X100
  • UL-Certifed icon
  • CE-Certified icon

3 IN 3 OUT 600VDC / 1000VDC DOOR CLUTCH DC BOX

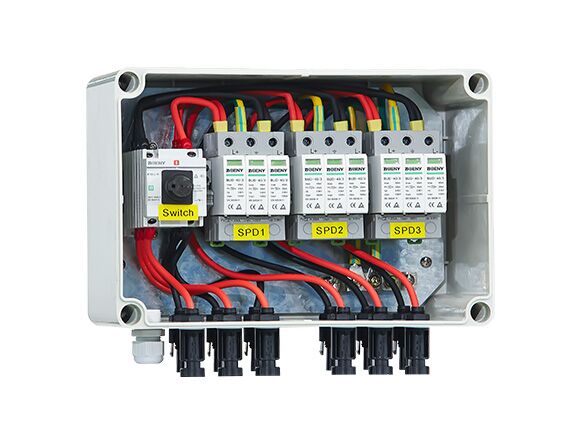

IP66 DC string box is designed for 3 string PV system.



For surge protection and isolating at solar DC side.

RELATED COMPONENTS

Door Clutch DC Box BHS 3 3 2
DC Disconnect Switch 1000V 50A BYSS Series UL Listed
  • UL508i approval, IEC60947-3 PV2 Cut off reverse current and over current
  • Door clutch easier operating and lockable handle
  • Patented DC arc extinguish chamber
  • Magnetic Steels inside ensure rapid and safe extinguishing
DC SPD Type2 1000V BUD-40/3 IEC
  • New IEC 61643, UL1449
  • Designed for solar PV protection
  • Higher capacity In 20KA ( IEC, UL )
  • Response time <25ns

SPECIFICATION

Specification
Model Number BHS-3/3
Input 3 string
Output 3 string
Max Voltage 600V 1000V
Short Circuit Current per Input (Isc) 15A-30A (changeable)
Max Current Output 50A 50A
Enclosure
Material Polycarbonate
Degree of Protection IP66
Impacts IK10
Dimensions (W*H*D)
Input Cable Glands PG09, 2.5-16
Output Cable Gland PG21, 2.5-16
Environment
Operating temperature -25℃ – +60℃
