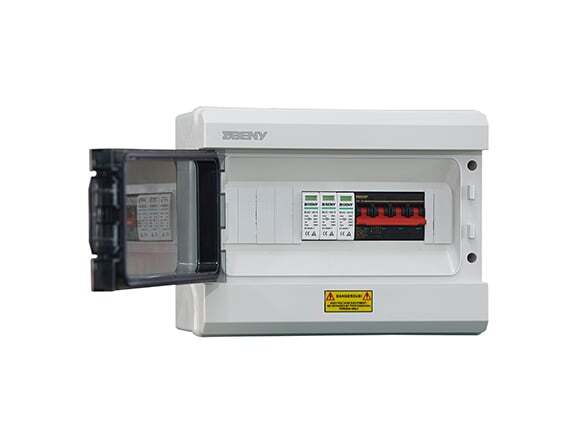

600V/1000V DC Combiner Box 2 In 1 Out BHS-2/1

IP65 DC string box is designed for 2 string PV system.

Highlights :

  • 600V DC/ 1000V DC
  • 2 Input 1 Output
  • IP65

2 Input 1 Output 600VDC / 1000VDC

IP65 DC string box is designed for 2 string PV system.

For surge protection and over-load protection at solar DC side.

RELATED COMPONENTS

combiner box bhs 1 1 2
DC Mini Circuit Breaker 1200V 63A BB1-63 IEC&AS
  • UL489B design, IEC60947-2 PV standard
  • Over-load, short circuit Protection
  • Non Polarity for easier wiring
DC SPD Type2 1000V BUD-40/3 IEC
  • New IEC 61643, UL1449
  • Designed for solar PV protection
  • Higher capacity In 20KA ( IEC, UL )
  • Response time <25ns

SPECIFICATION

Specification
Model Number BHS-2/1
Input 2 strings
Output 1 strings
Max Voltage 600V 1000V
Rated Current of DC Breaker 25A 25A
Max Current Output 63A 40A
Enclosure
Material Poly carbonate/ABS
Degree of Protection IP65
Impacts IK10
Dimensions (W*H*D) BX-13: L290*W220*H120mm
Input Cable Glands PG09, 2.5-16
Output Cable Gland PG21, 2.5-16
Environment
Operating temperature -25℃ – +60℃
