600V/1000V Door Clutch DC Box 2 In 2 Out BHS-2/2

2 input 2 output 600VDC / 1000VDC Door Clutch DC Box

Highlights :

  • 2 In 2 Out
  • 600VDC / 1000VDC
  • UL508i Approval, IEC60947-3 PV2
  • IP66 Enclosure
  • TUV 100X100 icon
  • UL-Certifed icon
  • CE-Certified icon
  • rohs

2 IN 2 OUT 600VDC / 1000VDC DOOR CLUTCH DC BOX

IP66 DC string box is designed for 2 string PV system.



For surge protection and isolating at solar DC side.

RELATED COMPONENTS

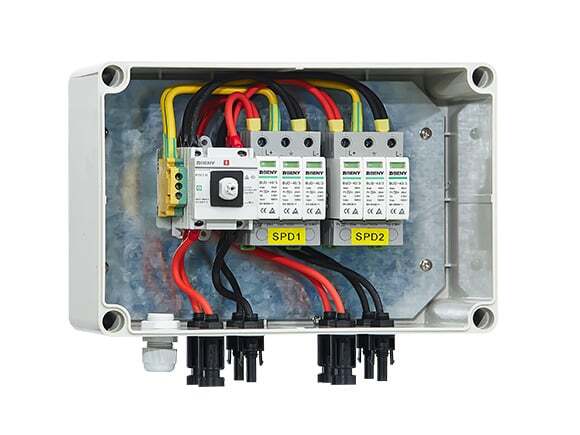

Door Clutch DC Box BHS 2 2 2
DC Disconnect Switch 1000V 50A BYSS Series UL Listed
  • UL508i approval, IEC60947-3 PV2 Cut off reverse current and over current
  • Door clutch easier operating and lockable handle
  • Patented DC arc extinguish chamber
  • Magnetic Steels inside ensure rapid and safe extinguishing
DC SPD Type2 1000V BUD-40/3 UL Version
  • Suitable For Use in All Photovoltaic Systems
  • Comply with : IEC/EN 61643-31/UL 1449
  • Plug-in Protection Module, Easily Installation and Maintainance
  • High Energy Varistor, Response Time Less Than 25 Nanosecond

SPECIFICATION

Specification
Model Number BHS-2/2
Input 2 string
Output 2 string
Max Voltage 600V 1000V
Short Circuit Current per Input (Isc) 15A-30A (changeable)
Max Current Output 50A 50A
Enclosure
Material Polycarbonate
Degree of Protection IP66
Impacts IK10
Dimensions (W*H*D) 300*200*150mm
Input Cable Glands MC4
Output Cable Gland MC4
Environment
Operating temperature -25℃ – +60℃
