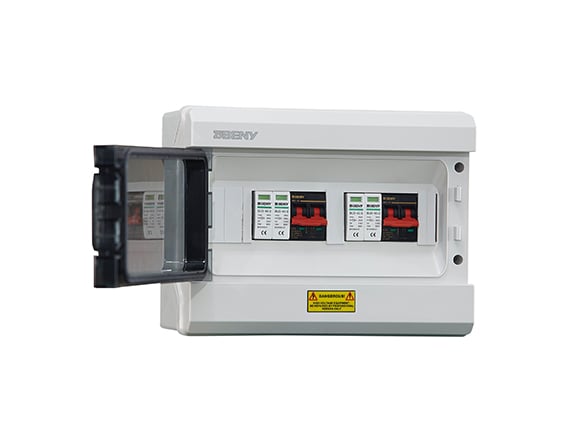

600V/1000V DC Combiner Box 2 In 2 Out BHS-2/2

IP65 DC string box is designed for 2 string PV system.

                    Highlights :
                    600V DC/ 1000V DC
2 Input 2 Output
IP65



Download Datasheet Request A Quote

2 Input 2 Output 600VDC / 1000VDC

IP65 DC string box is designed for 2 string PV system.

For surge protection and over-load protection at solar DC side.

RELATED COMPONENTS

600V 1000V BHS 2 2 2

DC Mini Circuit Breaker 1200V 63A BB1-63 IEC&AS

UL489B design, IEC60947-2 PV standard
Over-load, short circuit Protection
Non Polarity for easier wiring

DC SPD Type2 1000V BUD-40/3 IEC

New IEC 61643, UL1449
Designed for solar PV protection
Higher capacity In 20KA ( IEC, UL )
Response time <25ns

SPECIFICATION

Specification
Model Number	BHS-2/2
Input	2 strings
Output	2 strings
Max Voltage	600V	1000V
Rated Current of DC Breaker	15A	15A
Max Current Output	63A	40A

Enclosure
Material	Polycarbonate/ABS
Degree of Protection	IP65
Impacts	IK10
Dimensions	BX-13: L290W220H120mm
Input Cable Glands	PG09, 2.5-16
Output Cable Gland	PG21, 2.5-16

Environment
Operating temperature	-25℃ – +60℃
