Single Phase DC+AC Combiner Box 600V 1000V 2 In 2 Out BHS-2-2(DC+AC)

IP65 DC + AC box for the system Solar PV + BESS

Highlights :

  • IP65
  • DC and AC protection
  • AC breaker and AC surge arrester at AC side
  • Over-voltage protection and isolating at solar DC side
  • TUV 100X100
  • UL-Certifed icon
  • CE-Certified icon

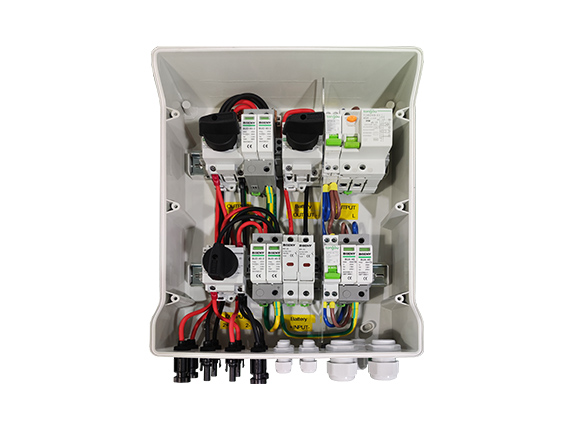

DC+AC Box for Solar PV System

IP65 DC + AC box for the system Solar PV + BESS.



Including over-voltage protection and isolating at solar DC side.



Equips AC breaker ( RCCB or RCBO for options ) and AC surge arrester at AC side.



An isolating plastic plate between DC components and AC components ensure safety operating.

RELATED COMPONENTS

BHS 2 2(DCAC)
DC Disconnect Switch 1000V 50A BYSS Series UL Listed
  • UL508i approval and design, IEC60947
  • Patented DC arc extinguish chamber
  • Magnetic Steels inside ensure rapid and safe extinguishing
DC SPD Type2 1000V BUD-40/3 IEC
  • New IEC 61643, UL1449
  • Designed for solar PV protection
  • Higher capacity In 20KA ( IEC, UL )
  • Response time <25ns

SPECIFICATION

Specification
Model Number BHS-2/2(DC+AC)
DC Input 2 strings
DC Output 2 strings
Max Voltage 600V 1000V
Max Current Output 50A
Battery System 1 string with switch and fuses
AC RCCB (RCBO for option) Type A 40A 300mA
AC Breaker 1 Single Phase For AC load
AC Breaker 2 Single Phase For AC SPD
Enclosure
Material Polycarbonate
Degree of Protection IP65
Impacts IK10
Dimensions (W*H*D) 26 modules: 292*370*132mm
DC Input / Output MC4 connectors
AC Cable Gland PG 21
Environment
Operating temperature -25℃ – +60℃
