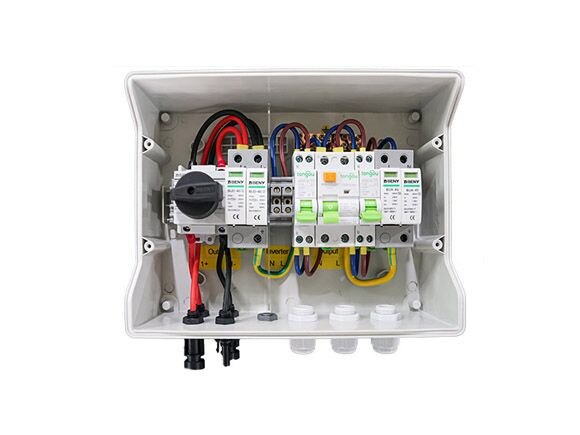

DC+AC Combiner Box 600V 1000V 1 In 1 Out BHS-1-1(DC+AC)

IP65 DC + AC box includes the DC and AC protection for solar PV system

Highlights :

  • IP65
  • DC and AC protection
  • AC breaker and AC surge arrester at AC side
  • Over-voltage protection and isolating at solar DC side
  • TUV 100X100
  • UL-Certifed icon
  • CE-Certified icon

DC+AC Box for Solar PV System

IP65 DC + AC box includes the DC and AC protection for solar PV system.



Including over-voltage protection and isolating at solar DC side.



Equips AC breaker ( RCCB or RCBO for options ) and AC surge arrester at AC side.



An isolating plastic plate between DC components and AC components ensure safety operating.

RELATED COMPONENTS

BHS 1 1
DC Disconnect Switch 1000V 50A BYSS Series UL Listed
  • UL508i approval and design, IEC60947
  • Patented DC arc extinguish chamber
  • Magnetic Steels inside ensure rapid and safe DC extinguishing
DC SPD Type2 1000V BUD-40/3 IEC
  • New IEC 61643, UL1449
  • Designed for solar PV protection
  • Higher capacity In 20KA ( IEC, UL )
  • Response time <25ns

SPECIFICATION

Specification
Model Number BHS-1/1(DC+AC)
DC Input 1 string
DC Output 1 string
Max Voltage 600V 1000V
Max Current Output 50A
AC RCCB (RCBO for option) Type A 40A 300mA
AC Breaker 1 For AC load protection
AC Breaker 2 For AC SPD protection
Enclosure
Material Polycarbonate
Degree of Protection IP65
Impacts IK10
Dimensions (W*H*D) 13 modules: 292*220*120mm
DC Input / Output MC4 connectors
AC Cable Gland PG 13.5
Environment
Operating temperature -25℃ – +60℃
