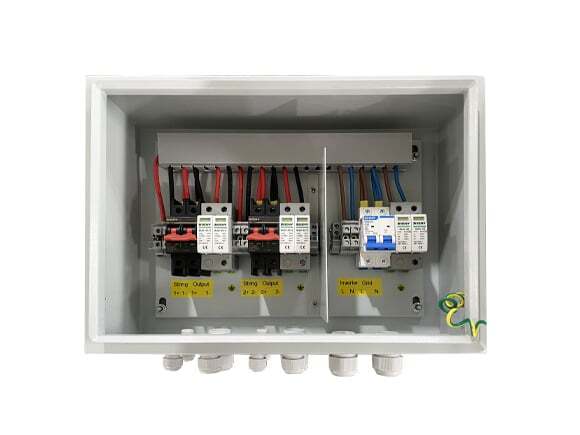

DC+AC Combiner Box 600V 1000V 2 In 2 Out BHT-2/2

IP65 DC + AC box includes the DC and AC protection for solar PV system

Highlights :

  • 2 In 2 Out
  • 600VDC /1000VDC
  • TUV 100X100 icon
  • UL-Certifed icon
  • CE-Certified icon

DC+AC Box for Solar PV System

IP65 DC + AC box includes the DC and AC protection for solar PV system.



Over-voltage and over-load protection for solar DC side.



AC breaker and AC surge arrester at AC side.



An isolating plastic plate between DC components and AC components ensure safety operating.

RELATED COMPONENTS

BHT 2 2
DC Mini Circuit Breaker 1200V 50A BB1-63 UL Listed
  • UL508i approval and design, IEC60947
  • Over load protection
  • Non-polarity for easier wiring
DC SPD Type2 1000V BUD-40/3 IEC
  • New IEC 61643, UL1449
  • Designed for solar PV protection
  • Higher capacity In 20KA ( IEC, UL )
  • Response time <25ns

SPECIFICATION

Specification
Model Number BHT-2/2
Input 2 string
Output 2 string
Max Voltage 600V 1000V
Rated Current of DC Breaker 15A 15A
Max Current Output 63A 40A
AC Breaker 220V 20A-63A
AC SPD 275V AC
Enclosure
Material Power Coating Metal
Degree of Protection IP65
Impacts IK10
Dimensions (W*H*D) 400*300*150
Input Cable Glands PG09, 2.5-16
Output Cable Gland PG21, 2.5-16
Environment
Operating temperature -25℃ – +60℃
