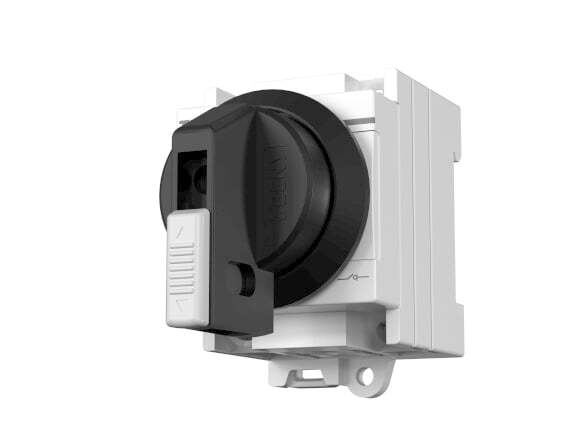

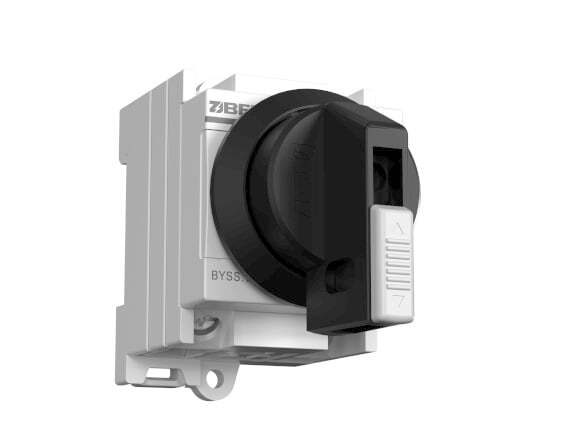

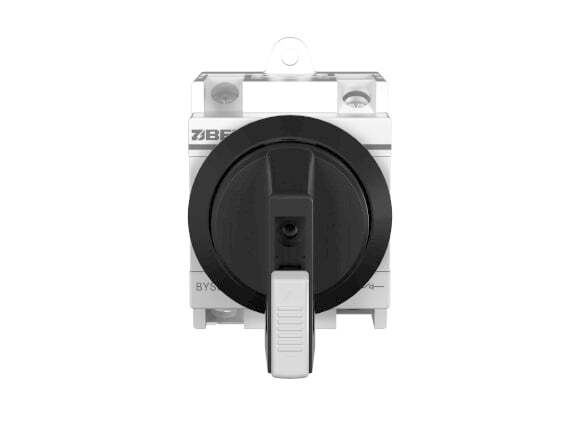

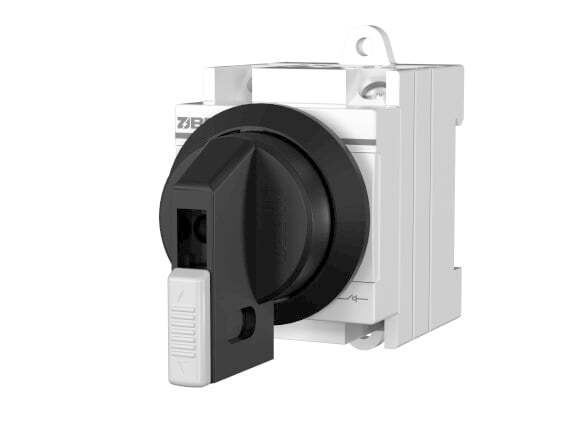

DC Disconnect Switch 1500V 50A BYSS.2-50 IEC&AS

BENY Electric BYSS.2-50 DC Isolator 1500V DC 40A Din Rail Mounting 2P 4P 6P 8P Solar Isolator Switch

Highlights :

  • Din rail mounting
  • IEC60947.3/AS60947.3
  • 1500V at 16A to 30A
  • 800V/1000V/1200V at 15A to 50A
  • Patented arc extinguishing instruction for arc interruption in 3ms
  • rohs
  • TUV 100X100
  • SAA Aproved icon

800V 1000V 1200V 1500V levels DC disconnect switch IEC60947.3

The BYSS.2-50 (din rail mounting) series DC switch is developed for solar PV high power voltage.



Compact switch body design for solar inverter build-in DC switch, solar combiner box and a full range of DC applications.



Up to 1000VDC 50A circuit with single conductor.



1500V max with current from 16A to 30A.

SPECIFICATION

Model BYSS.2 -50
Poles 2P 4P 6P 8P
Rated Operational Voltage (Ue) 800V,1000V,1200V,1500V
Rated Current 15A-50A
Mechanical Cycle 10000
Electrical Cycle 300
