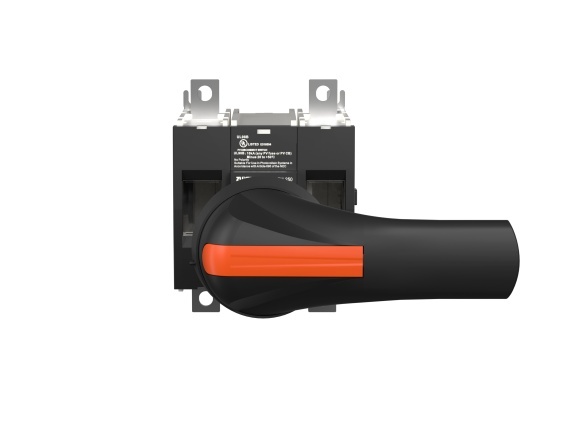

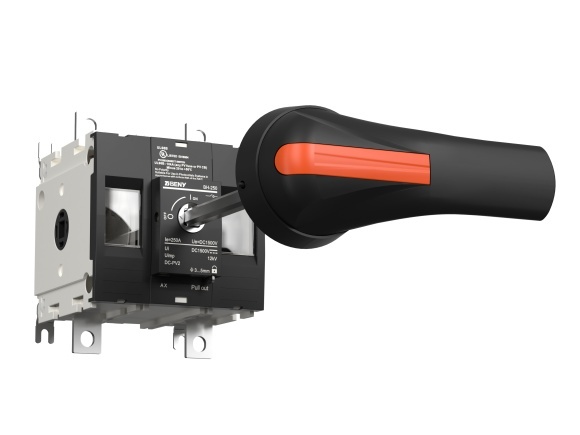

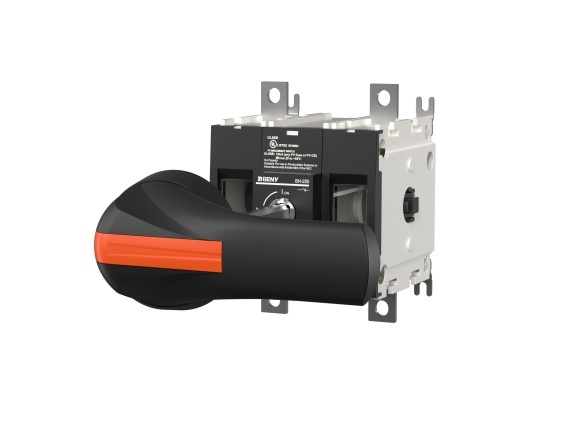

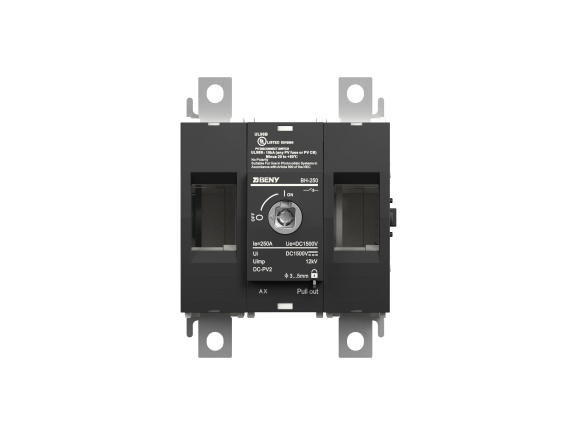

  • BH 250 1500V 250A 2P
  • BH 250 4P 1500V 250A
  • BH 250 1500V 250A 2P
  • BH 250 4P 1500V 250A

DC Disconnect Switch 1500V 250A BH-250 IEC

BENY New Energy BH-250 DC Isolator 1500V DC 250A 2P 3P 4P Solar Isolator Switch TUV Certified

Highlights :

  • IEC60947.3 and AS60947.3
  • 2P 4P 1000V 80A-250A
  • 3P 1500V 80A-250A
  • Reliable DC arc extinguishing technology with PCT patents
  • High capacity 10kA for 50ms test
  • Lower power losing
  • Non-polar switch
  • rohs
  • TUV 100X100 icon

Solar DC switch disconnect up to 1500V 250A

BH-250 DC switch according to IEC60947.3 and AS60947.3 PV standard.



One BH-250-2P DC switch disconnect can hold one 1000V string, current range from 80A to 250A.



One BH-250-3P switch can hold one DC string at 1500V, current range from 80A to 250A.



One BH-250-4P DC switch disconnect can hold two 1000V strings, current range from 80A to 250A.



BH-250 series solar disconnect is developed for 1000V 1500V utility-scale photovoltaic power plants.

Advantages

* Non-polar switch



* Modular and compact design



* Reliable DC arc extinguishing technology with PCT patents



* High capacity 10KA for 50ms test.



* Lower power losing

SPECIFICATION

Model BH-250
Poles 2P 3P 4P
Standard IEC60947.3/ AS60947.3
Rated Current 80A,100A,125A,160A,200A,250A
Rated Operational Voltage (Ue) 1000V,1500V
Mechanical Cycle 10000
Electrical Cycle Ie<=100A: 300 , Ie>100A: 400
Protection Degree IP20 switch body, IP66 for enclosure
Polarity No Polarity
Certificate TUV
