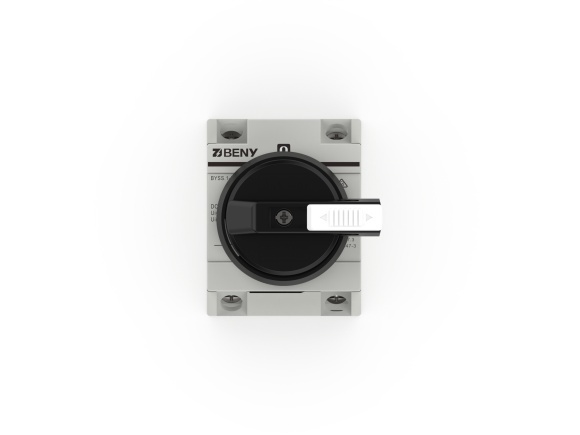

  • DC Disconnect Switch 1500V 50A BYSS 1 50T AS 01

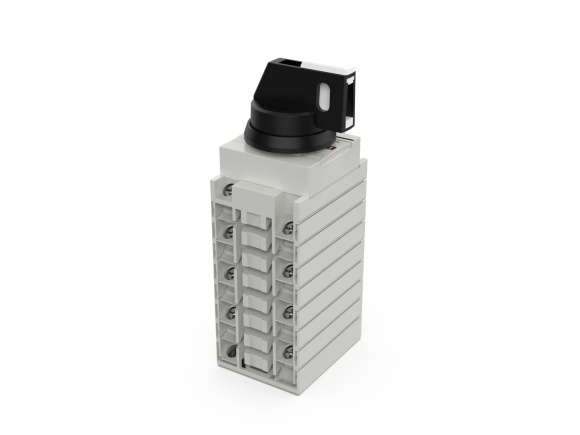

  • DC Disconnect Switch 1500V 50A BYSS 1 50T AS 02
  • DC Disconnect Switch 1500V 50A BYSS 1 50T AS 03

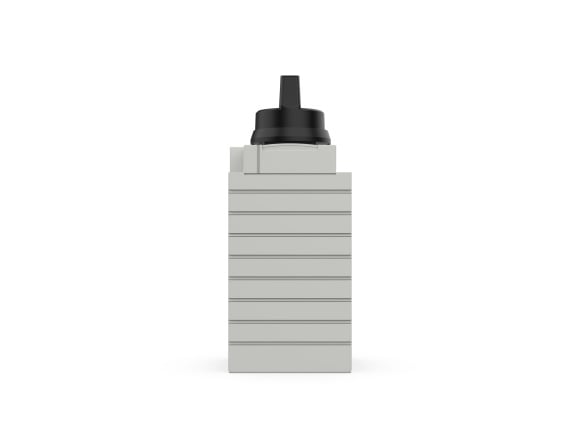

  • DC Disconnect Switch 1500V 50A BYSS 1 50T AS 04
  • DC Disconnect Switch 1500V 50A BYSS 1 50T AS 05
  • DC Disconnect Switch 1500V 50A BYSS 1 50T AS 01
  • DC Disconnect Switch 1500V 50A BYSS 1 50T AS 02
  • DC Disconnect Switch 1500V 50A BYSS 1 50T AS 03
  • DC Disconnect Switch 1500V 50A BYSS 1 50T AS 04
  • DC Disconnect Switch 1500V 50A BYSS 1 50T AS 05

DC Disconnect Switch 1500V 50A BYSS.1-50/T AS

BENY New Energy BYSS.1-50/T DC Isolator 1500V DC 40A Panel Mounting 2P 3P 4P 6P 8P 9P Solar Isolator Switch

Highlights :

  • Panel mounting
  • AS 60947.3
  • 1500V at 16A to 30A
  • 800V/1000V/1200V/1500V at 15A to 50A
  • Patented arc extinguishing instruction for arc interruption in 3ms.
  • DC Disconnect Switch 1500V 50A BYSS 2 50 AS TUV
  • rohs

800V 1000V 1200V 1500V levels DC disconnect switch

The BYSS.1-50/T (panel mounting) series DC switch is developed for solar PV high power voltage.



Compact switch body design for solar inverter build-in DC switch, solar combiner box and a full range of DC applications.



Up to 1000VDC 50A circuit with single conductor.



1500V max with current from 16A to 30A.

SPECIFICATION

Model BYSS.1-50/T
Poles 2P, 3P, 4P, 6P 8P, 9P
Rated Operational Voltage (Ue) 800V, 1000V, 1200V, 1500V
Rated Current 15A-50A
Mechanical Cycle 10000
Electrical Cycle 300
