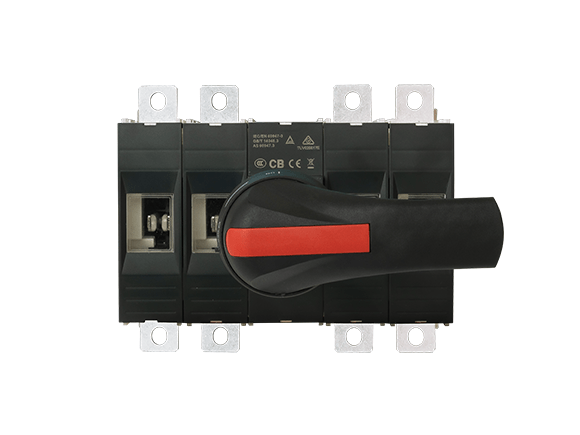

  • BH 400 4p ce 2
  • BH 400 4p ce
  • BH 400 4p ce 2

DC Disconnect Switch 1500V 400A BH-400-4P AS&IEC

BH-400-4P DC Isolator 1500V DC 400A 4P Solar Isolator Switch AS 60947.3 , IEC/EN 60947-3

Highlights :

  • 1500V DC, 400A
  • 4 Pole
  • AS 60947.3 , IEC/EN 60947-3
  • Reliable DC arc extinguishing technology with PCT patents
  • Lockable handle
  • Non-polar switch
  • Modular and compact design
  • rohs
  • as tuv icon
  • TUV 100X100 icon
  • CE-Certified icon
  • CB icon

Solar DC switch disconnect up to 1500V 400A

BENY BH -400 DC disconnect switch is designed and developed for solar PV inverter,combiner box or any DC equipments build-in according to lEC60947-3.



The DC load break switches provide safety isolationfor one DC circuit up to 1500vDC 400A.



Advantages

* Non-polar switch



* Modular and compact design



* Reliable DC arc extinguishing technology with PCT patents



* High capacity 10KA for 50ms test.



* Lower power losing

SPECIFICATION

Model BH-400-4P
Poles 4P
Standard IEC60947.3/ AS60947.3
Rated Working Voltage (Ue) 1000V/1500V
Rated Current (le) 320A/400A
Rated impulse withstand voltage (Uimp) 12kV
Rated short-time withstand current (1s)(lcw) 10kA
Rated short-circuit making capacity (lcm) 10kA
Rated conditional short-circuit current(kA) 10kA
Utiizatin category DC DC-PV2
Number of cycles of operation(With current) 200
Number of cycles of operation(Without current) 5000
IP rating terminals IP20
Outside the ark handle IP66
