600V DC Combiner Box 2 In 1 Out with MC4 BHS-2-1M

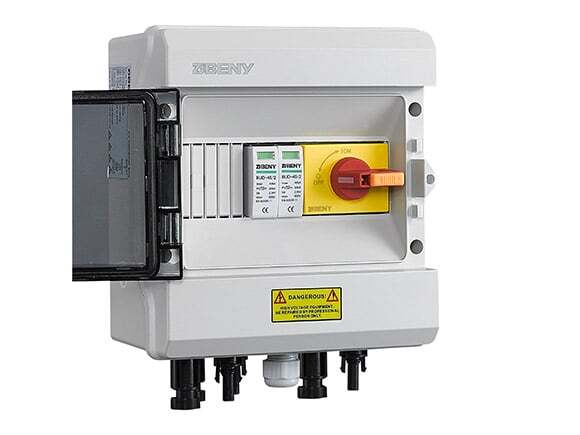

BENY Electric BHS-2/1M 600V DC Solar PV Combiner Box Pre-wired MC4 Connectors 2 In 1 Out for On/Off Grid Solar Panel System

Highlights :

  • 600V DC
  • 2 strings input, 1 string output
  • Enclosure: BX-08
  • IP65 protect degree for outdoor and indoor
  • UV resistance, flame retardant PC material
  • TUV 100X100
  • rohs

Solar DC combiner box build-in premium DC components for maximum protection

BHS-2/1M 600V solar box is equipped with a true solar DC disconnect switch, A 600V type 2 DC surge arrester for over-voltage protection.



All the true and reliable DC components are pre-assembled in a durable PC enclosure.



Pre-wired MC4 connectors on input and output for option.

SPECIFICATION

Model BHS-2/1M 600V
Certificate TUV
Standard IEC62109-1, IEC61439
Warranty 5 Years for any quality problems
Number of input strings 2
Number of output strings 1
Protection Degree IP65 (polycarbonate)
Dimension 210*194*120mm
