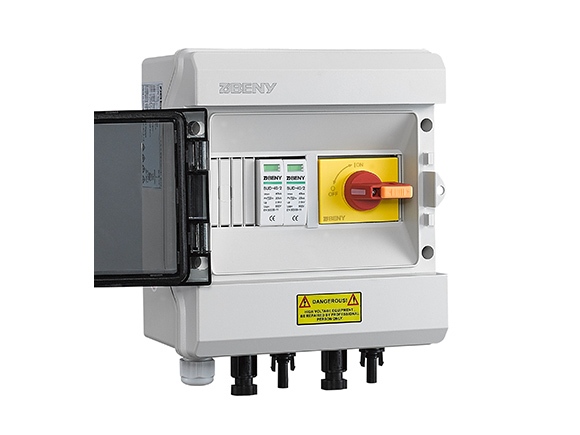

  • BHS 1M 600V open
  • BHS 1M 600V
  • BHS 1M 600V open

600V DC Combiner Box 1 In 1 Out with MC4 BHS-1-1M

BENY Electric BHS-1/1M 600V DC Solar PV Combiner Box Pre-wired MC4 Connectors 1 In 1 Out for On/Off-Grid Solar Panel System

Highlights :

  • 600V DC
  • 1 string input, 1 string output
  • Enclosure: BX-08
  • IP65 protect degree for outdoor and indoor
  • UV resistance, flame retardant PC material
  • TUV 100X100
  • rohs

Solar DC box build-in premium solar DC components for maximum protection

BHS-1/1M 600V solar box is equipped with a true solar DC disconnect switch.



A 600V type 2 DC surge arrester for over-voltage protection.



All the true and reliable DC components are pre-assembled in a durable PC enclosure.



Pre-wired MC4 connectors on input and output for option.

SPECIFICATION

Model BHS-1/1M 600V
Certificate TUV
Standard IEC62109-1, IEC61439
Warranty 5 Years for any quality problems
Number of input strings 1
Number of output strings 1
Protection Degree IP65 (polycarbonate)
Dimension 210*194*120mm
