Circuit Breaker vs Surge Protector: Which One Do You Need?

Did you know that electrical surges rank among the top causes of house fires with over 50,000 cases reported annually? As our living and working spaces increasingly rely on electrical and solar energy systems, the need for protection becomes more critical. However, how can one determine when a circuit breaker is required when a surge protector is essential, or both? These two devices are often confused but perform different functions in safeguarding against different types of electrical events. This article will go through the core differences, applications, and maintenance needs of circuit breakers and surge protectors to help you make an informed decision on how best to secure both your conventional electrical systems and renewable energy installations.

What is a Circuit Breaker?

A circuit breaker is a crucial safety device found in the electrical panels of homes, offices, and even renewable energy systems like solar panels and battery storage setups. The primary function of a circuit breaker is to halt the flow of current when it detects an overload in the system, which can cause the risk of overheating and potentially lead to fire outbreaks. Overloading can happen when multiple appliances are running on a single circuit or if there is a fault in an appliance causing excessive current flow, which heats up the wires. Circuit breakers monitor the flow of electrons, and safety regulations mandate their installation to prevent electrical hazards. When a circuit breaker trips, it indicates an underlying issue that needs to be addressed before it can be reset. By addressing the underlying problem, you can easily reset the breaker and restore power.

What is a Surge Protector?

A surge protector is an apparatus used for safeguarding your electronic instruments from unexpectedly high voltage. These elevations might arise due to thunderstorms or when power lines collapse. When too much voltage tries to flow into your appliances, a surge protector blocks or redirects the excess electricity thus saving them from damage. The most common places where we find this device are usually the sockets found in our computers, hot water heaters, and fridge sets among others which are very delicate devices. Surge protectors are not legally required but it’s highly advised to use them to reduce any risk of damaging valuable things during unexpected short supply caused by electrical equipment.

Circuit Breaker vs Surge Protector: Core Differences

Difference	Circuit Breaker	Surge Protector
Common Applications	Used in breaker boxes to protect the entire home’s electrical system and specific high-power circuits.	Commonly used with power strip surge protectors to protect multiple electrical appliances like TVs and computers.
Installation	Installing the breaker panel often requires a professional electrician for proper setup.	Plug-and-play installation for power strip surge protectors; whole-house versions need professional installation
Maintenance	Minimal maintenance should be tested periodically to ensure functionality.	Requires periodic replacement after absorbing multiple surges; monitoring for failure is essential.
Installation Location	Installed in the home’s main breaker panel.	Placed near electronic devices, often in living rooms or offices; whole house units in the main panel.
Indicator Lights	May have a reset switch and status indicator.	Often has a “protected” light; no reset, replace if failed.
Reset Function	It can be manually reset after tripping.	No reset function; must be replaced if it fails.

Pros and Cons of Circuit Breakers vs Surge Protectors: How to Choose?

Understanding the specific roles of circuit breakers and surge protectors in your home’s electrical system is important when choosing between them. However, they are both necessary but serve different purposes.

Circuit Breakers: The Foundation of Electrical Safety

Circuit breakers are critical parts of an electrical system equipped with technological features that automatically stop the power supply once they detect overloads or short circuits. Such action prevents overheating; which often leads to fires and/or damage to wires and connected devices.

Pros:

• Overcurrent Protection: The entire electrical system can be protected from hazardous overloads using circuit breakers.
• Fire Prevention: In case of an issue, cutting off power helps prevent any potential fire caused by electricity.
• Durability: Once you have installed them, most circuit breakers do not need much attention and can last for many years.

Cons:

• No Voltage Spike Protection: There is no defense provided by circuit breakers against abrupt voltage spikes that can ruin electronics.
• Complex Installation: Professional electricians often are needed for setting up or upgrading circuit breakers.

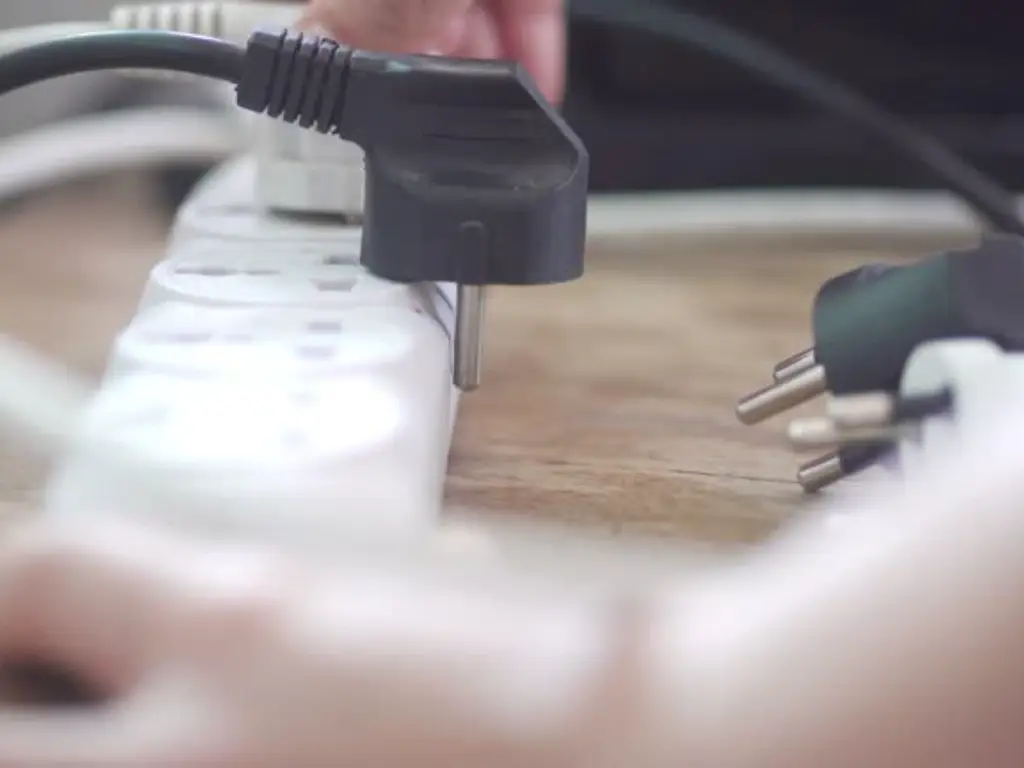

Surge Protectors: Shielding Your Electronics

Surge protectors are specifically designed to shield your electronic devices from voltage surges, such as those that occur during lightning strikes or when there are fluctuations in the power grid. These gadgets either absorb or divert extra voltage so that it does not reach your electronic apparatuses where it could spoil them.

Pros:

• Device Protection: Unexpected spikes in voltages can lead to severe harm to fragile electronics hence surge protectors become crucial here.
• Simple to Use: Most surge protectors are plug-and-play, making them easy to integrate into your setup.
• Whole-House Solutions: To guard anything in your house permanently, whole house surge protection systems may be installed thus covering every device within a home place entirely.

Cons:

• No Overcurrent Protection: Cases like electrical overloads or situations of short circuits cannot be averted by surge protectors but circuit breakers can handle that.
• Limited Lifespan: Surge protectors degrade with time thus they have to be replaced after certain voltage events especially major ones.

When selecting between a circuit breaker and a surge protector, it is important to acknowledge the benefits of each. Circuit breakers are essential for overall electrical safety, while surge protectors are necessary for protecting delicate electronic devices. In the majority of cases, they offer extensive protection against various electrical problems thereby ensuring your home and appliances’ security.

Troubleshooting Common Issues with Circuit Breakers

Circuit breakers are a must-have as they maintain the safety of your home electrical system by automatically cutting off power when there is an overload or short circuit. However, frequent tripping of your circuit breaker may be an indication of deeper problems that need to be fixed. Here is how to go about troubleshooting:

1. Identify the Cause of Frequent Tripping

Frequent tripping can be due to things like faulty wiring and undersized breakers. Faulty wiring or poor installation are common causes because they lead to short circuits that cause repeated trips. Look out for such symptoms as burnt outlets, frayed wires, and odd smells near electrical outlets. Furthermore, if a breaker is too small and not rated for the load that flows through it, it will trip frequently to avoid overheating.

2. Check on the Circuit and Breaker

Begin by checking your electrical setup for any visible damage. Look for burn marks, wires, or other signs of wear and tear that may indicate potential problems. Also crucial is whether the rating of a breaker matches what the circuit can reasonably bear in terms of load. If a breaker is too small and trips frequently, you might have to replace it with one more capable.

3. Consult a Professional

If you cannot determine what’s causing the problem or if this happens even after addressing obvious issues, it would be best to consult an electrician who specializes in this field. They will be able to examine your entire electrical system, identify any faults that lie beneath it, and make necessary repairs. Sometimes they could advise upgrading the breaker to meet its requirements for that particular circuit.

4. Regular Maintenance

Regular maintenance is key to preventing future issues. Periodically testing your circuit breakers ensures they function properly under both normal and exceptional conditions. Additionally, routinely inspecting your electrical system, particularly in older homes, can help you catch and address potential issues before they lead to frequent trips.

5. Long-Term Solutions

In addition, frequent tripping may mean that your house’s electrical system is old-fashioned or not suited for modern power consumption levels In such cases an upgrade will be necessary to make sure it sustainably carries the electrical load efficiently and safely enough.

Signs of Surge Protector Failure and Solutions

Surge protectors are quite useful in protecting your computers, TVs, and other electronic appliances against power spikes, but they lose their effectiveness with time due to the absorption of these surges. You need to be able to recognize when a surge protector is no longer functioning properly so that you can protect your electronics.

Identifying Signs of Failure

One of the most obvious indicators of a failing surge protector is visible damage. If you see burn marks, discoloration, or a melted power cord on it, then it has likely absorbed a considerable powerful surge and could be rendered ineffective. Another sign of this is if any devices connected to it will not turn on or behave erratically, which means that the piece of equipment is not secure enough.

Some brands have an indicator light labeled as “protected.” This light signalizes that there are still some internal components capable of absorbing surges. Once this light goes off, it indicates that even though the device still turns on other electronics, its ability to safeguard them from voltage spikes is gone. In such cases, replace your surge protector immediately.

Taking Action and Preventive Measures

If you notice any of these signs then the first thing you should do in all those situations is to replace your surge protector. Using damaged surge protection leaves your items vulnerable to future spikes in voltage.

To avoid problems inspect your surge protectors frequently mainly after major electrical incidents such as storms or blackouts. Even if there are no evident signs of harm incurred by them replace your surge protectors every couple of years based on how often they are used along with how many power surges occur in your area. Keeping records showing purchase dates and installation dates for each surge protector will help remind you when it’s time for new ones.

For more advanced protection, especially where voltages keep fluctuating, consider investing in a whole house surge system which gives wider coverage because it shields all circuits in your home.

Conclusion

It’s not just a matter of being an electrical expert to differentiate between a circuit breaker and a surge protector; it is the first step toward securing your household electric system and everyday-use appliances. Although they serve different purposes, circuit breakers and surge protectors work together to provide comprehensive protection against various electrical hazards, including different events like voltage spikes and overcurrent situations.

By understanding the role these gadgets play uniquely and maintaining them properly, you can safeguard your home and cherished electronics while ensuring that your system is equipped to handle the expected usage without risk. When assessing your home’s electric installation next time, think about how both circuit breakers and surge protectors can boost overall safety.
