Anyone constructing electrical circuitry must ensure the safety of users and electrical equipment. As a result, they must choose between using a circuit breaker or a fuse. Every house should have both of them. Where and when to employ either will presumably differ. Additionally, homeowners occasionally purchase fuses to replace damaged ones for particular gadgets.

These two electrical gadgets differ greatly from one another. Cost, application, operating principle, and reusability are only a few of the differences. In today’s blog, we discussed the topic of circuit breaker vs fuse.

What Is a Circuit Breaker and How Does It Work?

Circuit breakers are electrical switches that guard against overloads and circuit short circuits, which typically affect many devices at once including entire homes. It will allow power to flow through it normally when connected and turned on. Depending on the jurisdiction, circuit breakers are required or a necessity for wiring houses and businesses, and they typically contain a variety of sorts.

Typically, a circuit breaker is installed to serve a specific space, such as the kitchen, or a need, such as all of a room’s lighting requirements. One typically serves multiple devices simultaneously. The gadget will trip and cut off the power if the power load is too high or if a connected device or piece of circuitry is short-circuiting.

A bimetallic strip might ideally be mechanically attached to the electrical connection so that it will overheat and warp, cutting off the power. When there is a short circuit or excessive power load, two strips are employed, and the thinner one will warp and move the switch to the off position to cut the power.

A typical power supply would ordinarily connect these two strips. Others employ electromagnetic connections, which trip when there is too much power or a short circuit, disconnecting the switch. Tripping signifies an automatic changeover to the off position. Circuit breakers are rated as well. Larger and higher-rated ones safeguard homes, while smaller and lower-rated ones protect individual devices.

The circuit breakers available today not only provide protection but also distinguishes themselves from the fuse with additional features like annunciation, voltage & power metering, current, communication capability, energy measurement, etc. Additionally, the use of a circuit breaker results in less maintenance time, less inventory, and ultimately cost savings.

What Is the Fuse and How Does It Work?

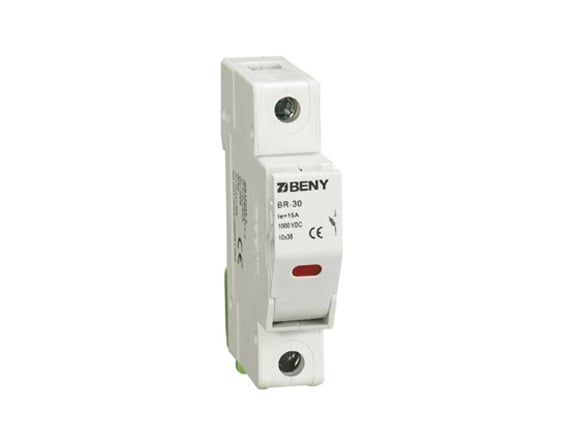

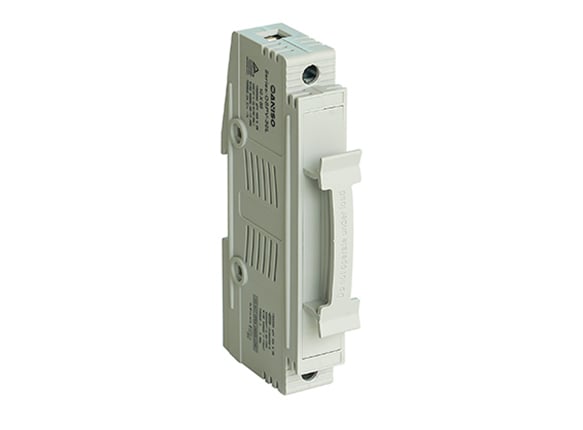

A fuse holder
Source: Beny

The positive terminal of electrical equipment has two power terminals, and fuses are electrical devices fitted between those two terminals. It is made up only of a wire piece that will readily melt away if something goes wrong. The fuse wire should ideally melt to cut off electricity to the gadget and prevent damage. When the power supply is greater than what the device needs, this occurs. Until a current or power surge, also known as an overload or high power supply, occurs, the fuse will obviously permit normal current or power flow via the line.

When there is an overload in the system the solder, as depicted, engages in a chemical process that cuts off the supply. Due to the tremendous electrodynamic force that is applied to the component in a short circuit due to the high current, the component breaks. The pop-up indicator, which appears anytime the fuse interrupts, makes it simple to identify a blown fuse. The purpose of the quartz sand is to effectively quench the arc and absorb the pressure, preventing the fuse from blowing.

Fuses are created specifically for the gadget and take into account its power requirements. They are nevertheless produced in the typical current ratings of 3 A, 5 A, and 13 A. A fuse should be installed on a device that can handle more current than it needs. For instance, if a gadget operates at 3 A, a 5 A fuse should be used. As opposed to 3A, 5A current will cause the fuse to blow, providing stronger protection.

The thin wire is protected by glass, ceramic, or metal covering. After that, the setup is housed. The entire house can be safeguarded with a central fuse. In that instance, it is placed in a central fuse box from which all of the house’s electrical wiring emerges to power the residence.

The fuse is the system’s most tenacious defender since it is the electrical system’s fastest interrupting mechanism. The maximum amount of energy let through is saved as the fuse blows within 2 to 5 milliseconds.

Common Grounds

  • One resemblance between fuses and circuit breakers can be found in their main purposes. Fuse and circuit breaker functions include protecting electrical circuits from current overloads that could start fires and cause damage. They accomplish this by interfering in various ways with the electrical flow through. When overheated, a fuse will melt a piece of metal, whereas a circuit breaker employs a switching mechanism.
  • Miniature circuit breakers can protect specific household items when low voltage is needed by preventing overloading and short-circuiting, just like fuses are beneficial for electric equipment and homes that use low current loads. Circuit breakers will function in this situation like resettable fuses.
  • Circuit breakers and fuses are divided into various groups according to various characteristics including voltage capacity. Air brake, air blast, vacuum, and sulfur hexafluoride circuit breakers are different types of circuit breakers. Fuse types can also be divided into AC fuses and DC fuses.

What’s the Difference Between Circuit Breaker and Fuse?

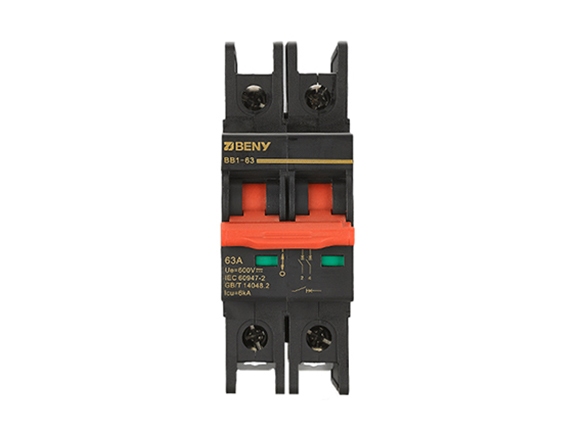

A circuit breaker
Source: Beny

The primary distinction between a circuit breaker and a fuse is that a circuit breaker works to mechanically cut off the connection once the power load exceeds the supply. By doing so, fires and other issues with connected devices are avoided. On the other side, a fuse stops a specific device from deteriorating if the incoming current is greater than what is needed.


A fuse will blow out if the incoming current is greater than what the gadget needs, but it cannot be used again after that. A circuit breaker, on the other hand, operates by mechanically tripping and cutting the connection. It can easily be turned back on, allowing for multiple uses.

Operation Principle

A fuse uses conducting materials whose electrical and thermal properties harm when the current exceeds the required level, as opposed to a circuit breaker, which electromagnetically interrupts the connection.

Response Time

Fuse reaction time is 0.002 seconds, while circuit breaker response time is between 0.02 and 0.05 seconds. Due to the speed at which the metal fuse melts, fuses have an advantage over circuit breakers in that they can interrupt the flow of power more quickly. Nevertheless, because of this melting process, fuses will eventually need to be changed. When a circuit breaks, a circuit breaker only has to be reset.


The cost of installation and maintenance is a major factor to take into account when choosing an electric system for the home. It can be pricey to install a circuit breaker inside your house. This is because the circuit breaker’s components are expensive and the system is complex. The amount of time it takes for a circuit breaker to react to a spike in household electricity is another important factor.

Your electrical equipment could be harmed during the surge because the circuit breaker doesn’t react to surges for a few minutes. Additionally, fuses can offer a higher level of protection because they halt the flow of energy almost instantaneously.


The various uses for which circuit breakers and fuses are utilized are another important factor to take into account. For instance, fuses are frequently employed in residences with modest electrical loads and in electronic equipment that draws a low current. However, circuit breakers make use of motors and other heavy machinery that consume a lot of electrical power. It’s an important factor to take into account for buildings where increased power loads could exceed conventional fuse-based systems.

Instead of just one or two electronic gadgets, the entire home is protected by circuit breakers. Fuses only cover certain gadgets, not the entire house or apartment. When choosing between a fuse box and a circuit breaker, this is also crucial.

Status Indication

Circuit breakers show the status of their working and if they need any repairs. On the other hand, fuses show no indication of the status of their work.


Circuit breakers shield houses and equipment from both power overloads and short-circuiting, whereas fuses only protect against power overloads. This is a crucial factor to take into account while deciding between a fuse and a circuit breaker.

The Advantages of A Circuit Breaker Over A Fuse

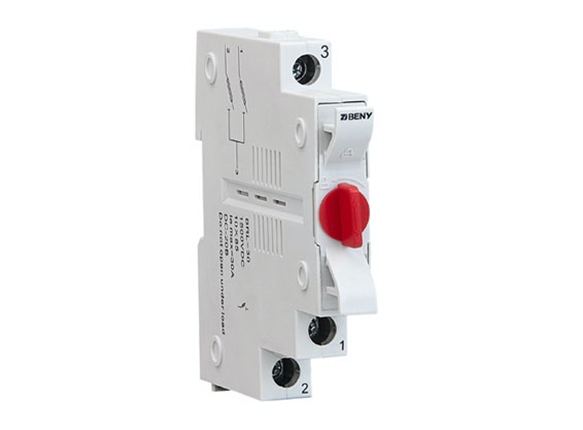

A quality Beny DC fuse holder
Source: Beny
  • Circuit breakers are front-facing dead. Live parts were exposed by fuses.
  • For correct operation, circuit breakers can be tested. A fuse would need to be destroyed in the process in order to be properly tested. It serves as a sacrifice.
  • If changed while powered on, a fuse may arc. (Despite the manufacturer’s warning NOT to change a fuse while the power is still on.) Some contemporary busbar tiny circuit breaker systems are made to allow breakers to be changed while the power is still on, although adoption of these systems has not been widespread.
  • The only magnetic protection provided by a fuse is thermal. When compared to fuses, circuit breakers are distinct due to their dual trip-curve feature.
  • The status of circuit breakers can be seen from the outside. Some fuses have a fuse-blown external indication.
  • Both a circuit breaker and an ON/OFF switch can be used.
  • It is simple to replace a blown fuse with the incorrect size, or even jerry-rig (use a wire or small copper bar to replace the fuse), which poses a safety risk.
  • Fuse start-up tripping is a problem (need to oversize the fuse for inrush current). Larger wiring may be needed for fuses to account for inrush current.
  • A fuse cannot offer ground fault protection; a circuit breaker can.
  • Over time, fuses “age” and “degrade,” which can lead to annoying tripping.
  • Three-pole circuit breakers prevent single phasing on three-phase loads. All circuits trip simultaneously. Individual fuses used for a three-phase power supply can cause single phasing, which can harm electronics.

The Advantages of A Fuse Over A Circuit Breaker

  • Fuses are easy to use and straightforward.
  • More quickly than a circuit breaker, fuses trip.
  • Circuit breakers are initially more expensive than fuses.
  • Fuses take up less space inside a control cabinet.
  • Fuse types come in a wide range to suit various uses.
  • Due to the absence of moving elements, fuses tend to be more dependable over time.
  • Fuses don’t need to be maintained frequently. Circuit breakers with molded cases, among others, do.
  • Every time an overcurrent trip occurs, a fuse is replaced, guaranteeing the same degree of circuit protection efficacy. If a circuit breaker trips too frequently, it may eventually wear out.
  • Circuit protection provided by fuses is quick, simple, and inexpensive. Perhaps their greatest advantage over circuit breakers is the quicker circuit protection time.

Which One is Better for Your Needs?

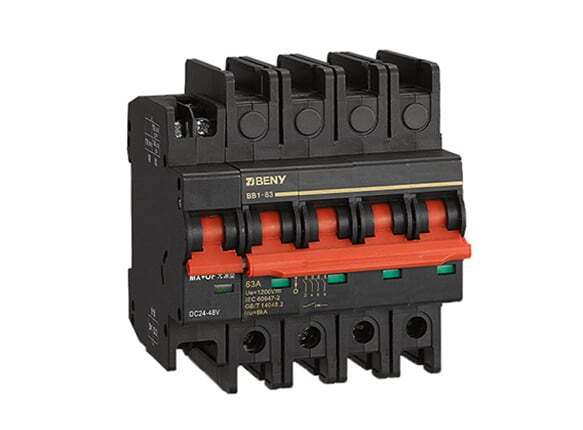

Circuit Breaker 2
Source: Beny

In comparison to a fuse box, a circuit breaker is more sophisticated, may be reused, and requires no replacement. Circuit breakers are superior to fuse boxes despite their slow response time for the following reasons:

Consistent Operation

As fuses age, their performance frequently deteriorates, causing them to trip in routine circumstances. Additionally, there is no method to determine the precise current value that will blow a fuse. To preserve their effectiveness, circuit breakers are typically tested and can be tested again later.

Improved Safety And Uptime

It’s important to realize that using fuses exposes technical staff and unskilled people to risks owing to exposed conductors and the ongoing requirement to replace them. However, because the connections are hidden behind the gadget and may be controlled remotely, circuit breakers are safer. Since circuit breakers do not need to be replaced when they trip, there is no risk of fires from using the incorrect versions, as was the case with fuses.

Optimal Functionality

Techniques like ground fault prevention can be used to continuously increase the effectiveness of circuit breakers. Circuit breakers also enable coordination between breakers, and the more sophisticated ones have a flexible architecture that enables field upgrades. Futures for circuit breakers include status indication and remote control, among others.

Increased Protection

Compared to identical fuses, circuit breakers have breaking capabilities up to 150 kA higher. They can trip up to 1000 times faster than fuses in an overload situation. Specific fuse types only have current restrictions. Circuit breakers have three phases operating simultaneously, unlike fuses. These characteristics guarantee trustworthy protection.

It is critical to realize that these components are not always interchangeable for all power usages when comparing fuses and circuit breakers. Fuse usage should be avoided in some situations in favor of circuit breakers instead, such as where a GFCI is required. As a result, hiring an electrician is the safest approach to guard your home and your electrical appliances against surge damage.

Circuit protection provided by fuses is quick, simple, and inexpensive. Perhaps their greatest advantage over circuit breakers is the quicker circuit protection time. When defending delicate electronic equipment, this is crucial. For applications involving three phases, circuit breakers offer better protection.

Power can be restored more swiftly without having to look for a spare fuse since circuit breakers are not sacrificial and do not need to be replaced, as a fuse does. Think about the application, the operating environment, and the location of the application. Circuit breakers and fuses both will continue to be used in the installation of electrical equipment.

Installation Insights

A Beny's fuse holder in display
Source: Beny

Even while people can have their own ideas about how to use fuses and circuit breakers around the house, it’s crucial to let a licensed electrician make the final call. Let’s examine the factors that cause property owners to consult electricians when making this crucial choice:

Electricians are aware of security issues

A home’s power requirements may be well understood, but how much do people know about the dangers that could arise from adding new systems? It is best to get advice from qualified electricians on the best type of electricity system for the house. With their design experience, they can help reduce the dangers associated with putting fuses and circuit breakers in older homes.

Electricians can help save money

While hiring a professional electrician may cost more upfront, the price is quite low when compared to the expense of fixing a house after an electrical fire. Additionally, an electrician may assist in designing the system so that it meets the power requirements throughout the house and provides the ease of having easy access to the power required for all gadgets and appliances.

Electricians can do the job swiftly

People can also be integrating the system themselves if they choose a circuit breaker or fuse system for the house. This is not only extremely risky, but the procedure itself can take several weeks. This is particularly true if one is unaware of the system’s numerous points of failure. It could be necessary to maintain making minor improvements and repairs to cover new areas. A competent electrician is aware of the technology’s capabilities. Additionally, they have a higher probability of designing the system right the first time.

Safety Precautions

A DC molded case circuit Breaker produced by Beny
Source: Beny
  • When adding circuits or wiring to a house, always check the regional construction codes and confirm.
  • Unless there is an experienced electrician, never remove the cover from the electrical box to expose it.
  • Find out the primary reason why a fuse or breaker tripped. Homeowners frequently try to fix fundamental issues by either changing the fuse or resetting the breaker. Verify that no circuits are being overloaded with excessively numerous devices or other electrical equipment.
  • When working with electrical equipment, never wear rings or metal watchbands, use metallic pencils or rulers. This rule is quite simple to overlook, especially when aiming a metallic pencil at an electrical component.
  • Do not attempt to alter your panel. To remedy the issues, consult a certified electrician.
  • Always check to see if the breakers are operational.
  • Make sure that the power is disconnected while repairing a circuit breaker or a fuse.
  • Avoid using electrical equipment in cold spaces or places where condensation is prone to occur. Mount the device on a wall or vertical panel if it must be utilized in such places.

Electrical equipment could be damaged by an excess of electricity, and electric fire could even endanger people’s lives. Therefore, it is imperative to have a proper device (a fuse or circuit breaker) placed in the home to protect it from any electricity-related problems. It would also be wise to make that decision with the assistance of a licensed and skilled electrician.

In conclusion, one of your home’s most important safety features is its circuit breakers or fuses. If you have added additional locations or outlets, you might think about having your service updated if necessary. If so, consult an electrician to make sure you have the right kind of electrical service for your house and family.


Both circuit breakers and fuses are made to stop the flow of electricity. But they use several techniques to function. The fuse functions as a metal component that melts away when it becomes too hot. When an electrical overflow is detected, a circuit breaker operates a switching mechanism.

It’s critical to take into account the distinctive advantages both fuses and circuit breakers can provide throughout the property when choosing the best option for your construction project. Hopefully, in this post, we have cleared any doubts you have about circuit breakers or fuses. If you want to purchase these products you can contact Beny. You can get bulk options here too, along with various other OEM/ODM facilities for your business.

Talk to Our Expert
