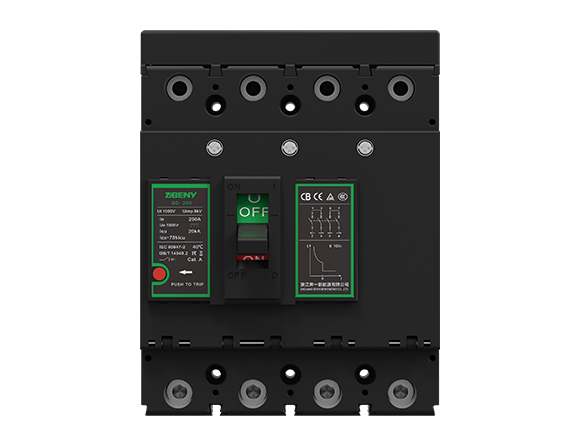

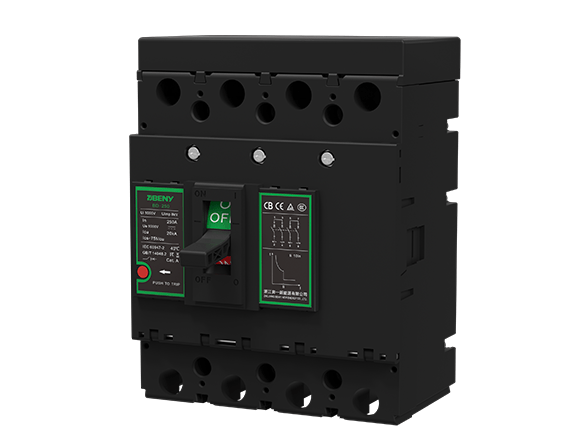

DC Molded Case Circuit Breaker 1000V 250A BD-125/ BD-250 IEC

BENY Electric BD-125/ BD-250 DC Molded Case Circuit Breaker 1000V 250A 4 Pole DC MCCB TUV Certified

Highlights :

  • IEC 60947-2 standard
  • Can be applied in grounded or ungrounded systems
  • Tested to extreme ambient conditions from –40 to 85º C
  • Available up to 65A-250A 1000V
  • 5 years warranty for free replace
  • rohs
  • TUV 100X100 icon
  • CB icon
  • CE-Certified icon

Direct Current Molded Case Circuit Breaker for Solar PV application

BD series PV DC Moulded Case Circuit Breaker (MCCB) are mainly used in large solar power system, which are applied for solar DC combiner box, inverter and DC power distribution cabinet. Rated voltage up to 1000V DC, current up to 250A, with the function of overload protection and short-circuit protection.


The breakers are designed for applications including solar photovoltaic, electric vehicle charging stations, commercial battery storage and UPS applications.


For DC circuit over-current protection and controlling.


Model BD-125; BD-250
Poles 4P
Standard IEC60947.2
Utilization Category DC-21B
Rated Operational Voltage (Ue) 1000V
Rated Current 63A,80A,100A,125A; 160A,200A,250A
Mechanical Cycle 14000
Electrical Cycle 2000
Protection Degree All Sides IP40, Connection Terminal IP20
Polarity No Polarity
Certificate TUV, CE, CB, CCC
