Understanding DC MCCBs and DC MCBs: Similarities and Essential Differences

DC Molded Case Circuit Breakers (MCCB) and DC Miniature Circuit Breakers (MCB) are both electrical protection devices used to prevent overcurrents that can lead to faults or damage. They play crucial roles in electrical systems, and understanding the significant similarities and differences between the two in terms of design, function, and application is practical and necessary when choosing the appropriate product.

DC Molded Case Circuit Breakers primarily serve the purpose of protecting against overloads and short circuits in low-voltage distribution systems and motor circuits. Their reliability and stability make them widely applied in industrial scenarios. DC Miniature Circuit Breakers are also extensively used circuit protection devices, primarily designed to interrupt current in case of overload or short circuit in electrical distribution devices for residential and commercial use.

Similarities Between MCCB and MCB

First, let’s understand their fundamental similarities. Both MCCBs and MCBs are types of circuit breakers and adhere to some basic product standards, operating on similar principles.

Overload and Short Circuit Protection: Both can monitor the circuit current, and when the current exceeds the rated value or a short circuit occurs, the circuit is rapidly interrupted to prevent fires and protect electrical equipment from damage.

Manual Operation: Both types of circuit breakers typically offer manual operation capabilities, allowing personnel to manually open or close circuits for maintenance or emergency shutdowns.

Differences Between MCCB and MCB

Size and Enclosure: MCCBs are typically larger, with enclosures made from materials like thermosetting Dough Molding Compounds (DMC) or flame-retardant Bulk Molding Compounds (BMC) with a V-0 rating, while MCBs are much smaller, with enclosures usually made from flame-retardant PA66 with a V-0 rating.

Current Ratings: MCCBs generally have current ratings below 1600A, while MCBs have maximum current ratings below 125A. The difference in capacity means that MCCBs have wider application scenarios and accommodate thicker wires, sometimes reaching several hundred square millimeters, whereas MCBs are suitable for 50 square millimeters or less wires.

Mounting Methods: MCCBs are primarily installed using screws, which provides a secure and stable connection. MCBs are typically mounted on DIN rails. The different mounting methods make MCCBs more stable and easier to install compared to MCBs.

Product Lifespan: MCCBs have greater spacing between phases and incorporate arc extinguishing chambers, possessing stronger arc-extinguishing capability. They can withstand larger short-circuit currents and are less likely to cause phase-to-phase short circuits, resulting in a longer lifespan compared to MCB.

Application Fields: MCCBs are mainly used in industrial and large commercial electrical systems, while MCBs are commonly used in residential, small commercial, and light industrial applications, making them more suitable for installation in compact spaces.

Beny’s Secure and Reliable Circuit Breaker Solutions

As a DC circuit breaker manufacturer, Beny offers a range of solutions to meet various application needs, including DC Molded Case Circuit Breakers and DC Miniature Circuit Breakers.

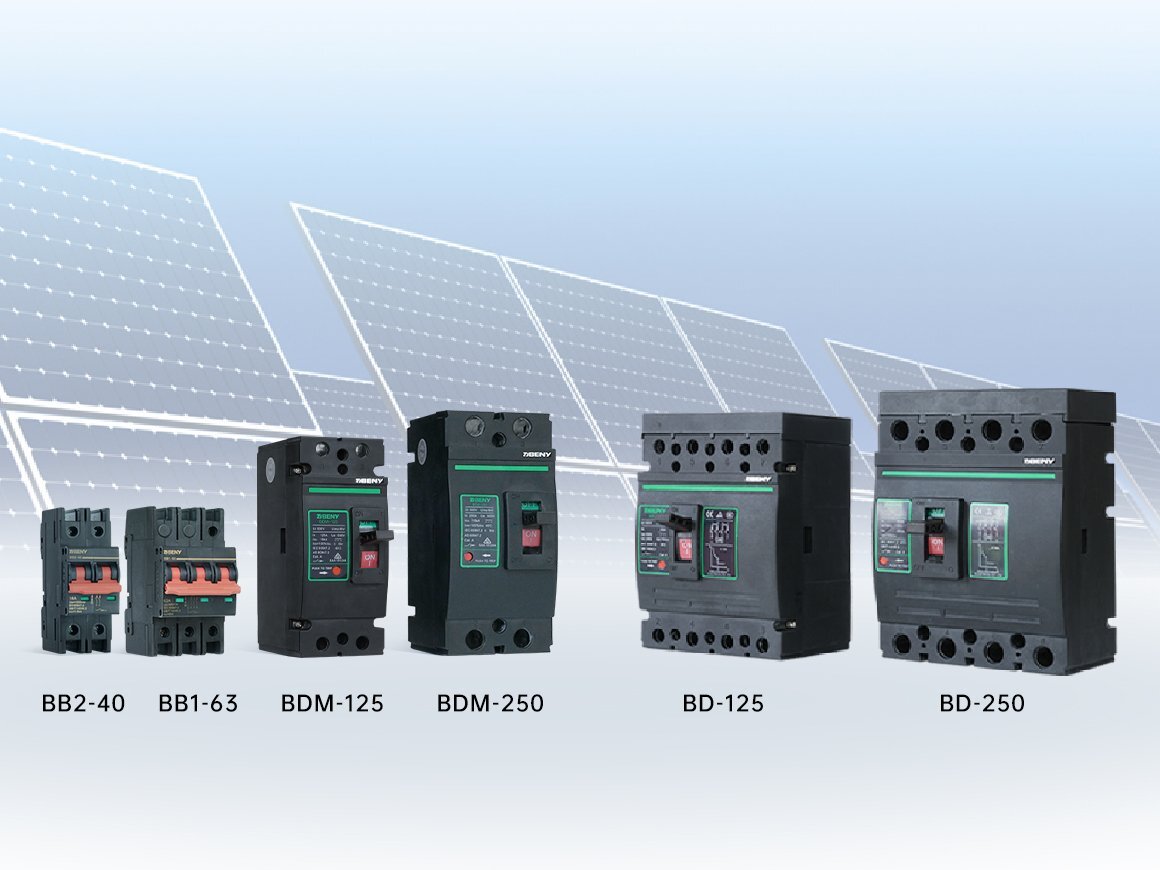

BB1-63/BB2-40 DC MCB: These MCBs serve as DC breakers for solar and energy storage systems, providing essential functions like overload protection, short-circuit protection, and reverse-flow prevention, along with arc flash barriers to enhance system safety and stability. BB1-63 is designed to operate at a DC system voltage of 1200V, with a frame current rating of up to 63A. Meanwhile, BB2-40 is suitable for DC1500V systems and is ideal for applications with frame currents below 40A. These MCBs meet market demands and hold certifications from TUV Rheinland, CE, CB, Australia’s RCM, and UL (BB2-40 only).

BD Series Photovoltaic DC MCCB: Primarily intended for use in large-scale solar power generation systems, such as inverters, DC distribution cabinets, and DC combiner box components. They are designed to handle high-voltage and high-current loads and come equipped with essential features like overload protection and short-circuit protection. These MCCBs are rated for DC voltages of up to 1000V, with current load ranges spanning from 63A to 250A. They have undergone rigorous environmental testing, enduring temperatures from -40°C to +85°C. Certifications include RoHS, CE, CB, TUV Rheinland, and compliance with other industry standards.

BDM Series DC MCCB: Tailored for commercial applications, including solar PV battery energy storage systems, electric vehicle charging stations, commercial battery storage, and UPS setups. These MCCBs provide robust protection and isolation capabilities. They adhere to IEC standards and offer a rated working voltage of DC500V, with a current range from 65A to 250A, ensuring reliable overload protection and control for DC circuits. The products have successfully undergone extreme environmental testing in conditions ranging from -40°C to +85°C. Additionally, they can be configured with IP65-rated UV-resistant enclosures suitable for outdoor installations, making them adaptable to challenging operating environments.

In addition to its standard product offerings, Beny also provides DC circuit breaker customize services to cater to specific customer requirements and system configurations, guaranteeing safety, reliability, and the highest level of customer satisfaction.

In summary, Molded Case Circuit Breakers and Miniature Circuit Breakers exhibit significant similarities in current monitoring and circuit protection. However, they have unique design features that make them suitable for different application scenarios. Users should choose the right product based on their specific application requirements. Beny has consistently maintained a leading position in DC circuit breakers thanks to its outstanding technological innovation and high-quality products. With the rapid development of renewable energy and electric transportation, the demand for DC circuit breakers continues to grow. Beny will continue to invest resources in research and development to meet market demands and provide customers with safer and more reliable DC power distribution solutions.
