Solar Panel Microinverters: What Are They Exactly?

Home Solar Panel Microinverters: What Are They Exactly?
07/09/2022
Share:

A photovoltaics plug-and-play device, known as a solar microinverter, converts direct current (DC) produced by a single solar module to alternating current (AC). The usual string and central solar inverters, in which a single inverter is connected to a number of solar panels, contrast with microinverters. It is possible to aggregate the output from numerous microinverters and frequently feed it into the power grid.

Compared to normal inverters, microinverters provide a number of benefits. The key benefit is that they electrically isolate the panels from one another, so that even a full module failure or minor quantities of shade, debris, or snow lines on one solar module do not significantly diminish the output of the entire array.

What is a Solar Microinverter?

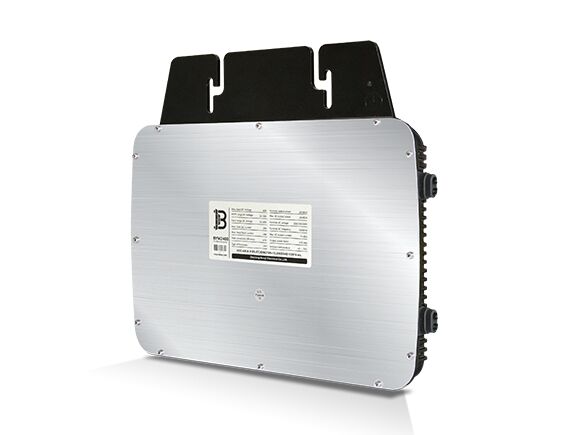

beny quad micro inverter china
Source: Beny

A very tiny inverter called a microinverter is made to be mounted to each individual solar panel. The typical string solar microinverter, which is often mounted on a wall some distance away from the string of solar panels and connected via DC cable, is very dissimilar from this. In systems using string inverters, the inverter converts the DC electricity from the string of panels to AC. Each solar panel functions independently from the rest of the solar array due to the microinverters attached to each one, and DC power is instantly converted to AC on the roof.

How does a Solar Microinverter work?

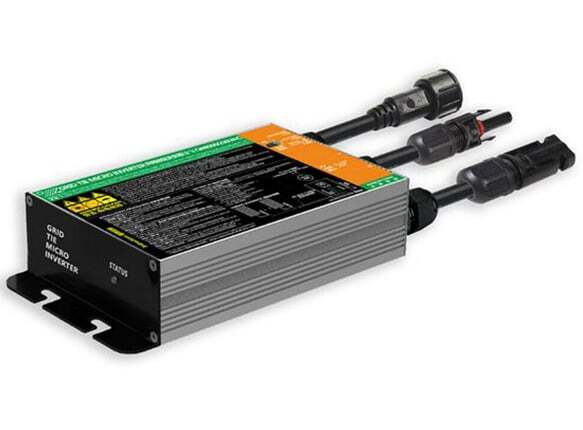

Solar Microinverter
Source: Pinterest

Understanding a microinverter’s function in the creation of solar energy is helpful.

In a nutshell, the solar panels’ solar cells convert solar energy into Direct Current (DC) electricity. People need a technique to instantly transform solar power into household power because the majority of homes use Alternating Current (AC) energy. a microinverter is introduced.

A microinverter is incredibly efficient at converting DC electricity to AC power. This is due to the fact that each solar panel’s back is connected directly to a microinverter. Due to their independence from the other solar panels, they produce power more effectively.

Types

String Inverter
Source: Pinterest

Solar panel microinverters can be categorized based on their intended use, which includes the following:

  • Microinverters- These inverters make a suitable choice for both residential and business applications. These are module-level electronics, just like power optimizers, since one inverter is put on each panel. Microinverters do not require a string-type inverter because they convert power from DC to AC precisely at the panel. Compared to traditional inverters, solar microinverters provide a number of benefits. The key benefit is that they electrically separate the panels from each other so that even a complete module failure or minor levels of shade, debris, or snow lines on one solar module do not significantly diminish the output of the overall range.
  • Inverter powered by batteries- Day by day, the market for battery-based inverters is expanding. These are unidirectional and come with a battery charger and an inverter. This can be operated with the assistance of a battery. Based on UL design and rating, these inverters are classified as grid-tied, grid-interactive, and off-grid.

Need For Solar Microinverters

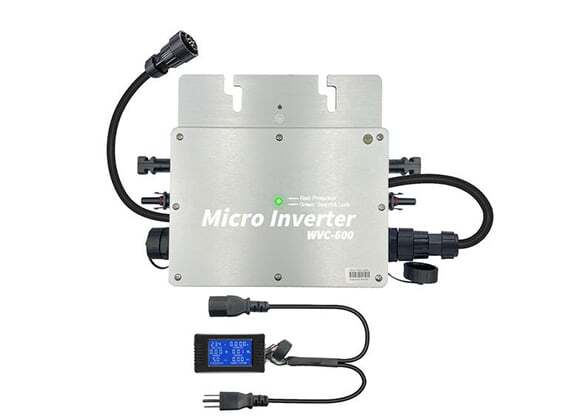

Solar Grid Tie Micro Inverter
Source: Pinterest

A mechanism is needed to send the power from the solar panels directly to the electrical breaker box in a house, just like with any other solar panel installation. In our opinion, a microinverter is superior to the older string inverters in terms of effectiveness and efficiency.

A typical string inverter has the drawback of allowing the solar system to only generate as much electricity as its least productive panel. The others will also collapse if one panel does. For instance, seven of the eight solar panels on the roof are operating at maximum capacity. In that case, only 25% of the energy generated by the panels is received if the eighth panel is only producing at a 25% efficiency.

On the other hand, a microinverter is set up underneath each panel in the area between the solar panel and the roof. The system will be able to use all of the electricity that each solar panel is capable of producing because each solar panel has its own microinverter.

Every panel receives its maximum output since a microinverter system has no single point of failure. Not to mention the increased security. Microinverters for solar panels keep high-voltage DC off the roof, making them safer than other inverters.

Additional benefits include:

  • Easy Expansion: A solar system can be readily expanded from a single panel to several panels that are independent of one another because of its modularity.
  • Suitable for Residential Structures: Due to its size and modular design, it is ideal for residential buildings because each panel can have a distinct daytime shade pattern or be positioned differently.
  • Simple Installation: Since there are no particular limitations on the origination of solar panels, installation of micro-inverter solar on grid systems can be done quite quickly and easily by anyone.
  • Extended warranty: Microinverters often survive far longer than central inverters because they are not subjected to the same high power and heat loads. The normal warranty period for microinverters is 20–25 years, which is 10–15 years longer than that of central inverters.

How long do they last?

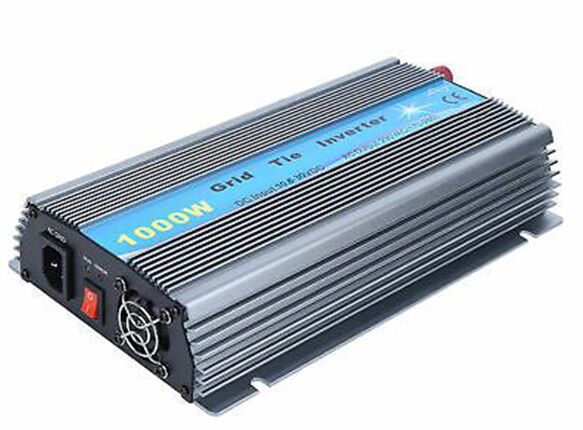

Solar Inverter
Source: Pinterest

A domestic solar inverter’s productive lifespan is influenced by a variety of factors. While inverters typically have a shorter lifespan due to components that age more quickly than solar panels, they can last for 25 to 30 years or longer.

Standard warranties for string inverters typically range from 5 to 10 years, with the possibility to extend many of them to 20 years. When choosing inverters, it is a good idea to consider whether any free maintenance and monitoring are included in the solar contract.

Maintenance

Micro Solar Inverter
Source: Beny

The best location for a solar microinverter is one that is cold, dry, and has plenty of moving fresh air if one wants it to operate more effectively for a longer amount of time. Although certain manufacturers of outdoor inverters are built to tolerate more sunlight than others, it is also advised to avoid installing them in regions with direct sunlight. Additionally, it’s crucial to check the clearance between each inverter in multi-inverter installations to prevent heat transfer between them.

Additionally advised are regular inverter maintenance inspections. According to best practices, the inverter’s exterior (if it is accessible) should be checked every three months to ensure there are no obvious signs of damage and that all vents and cooling fins are clear of debris.

Moreover, it is advised to arrange for an inspection every five years through a certified solar installer. Although some solar contracts include free maintenance and monitoring for 20–25 years, these standups often cost $200–$300. The inspector should look inside the inverter during the inspection for evidence of corrosion, damage, or bugs.

Cost

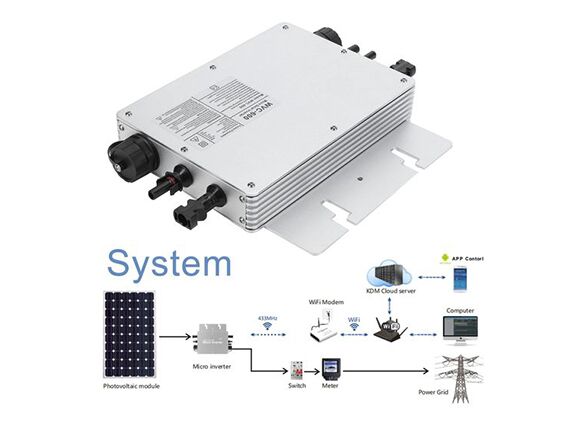

Solar Grid Inverter
Source: Pinterest

According to several sources, the average cost of a central inverter was $0.40/Wp (watt peak), whereas the cost of a microinverter was $0.52/Wp. Microinverters may initially cost more per watt peak, but this does not guarantee they will cost more in the long run. There are plenty of other things to consider.

Micro-inverter solar installations are quicker and easier to complete, which often reduces installation costs by 15%. Additionally, better longevity and durability should be taken into account.

Two numbers help us determine the cost-analysis or how useful microinverters are:

  • Continual expenses ($)
  • Energy production over a lifetime (kWh)

In essence, this is how it all works: divide expenses by energy output to get the cost per kilowatt-hour (kWh) that the solar system generates. Every circumstance is different – there are a lot of variables to take into account in order to find those two numbers.

Conclusion

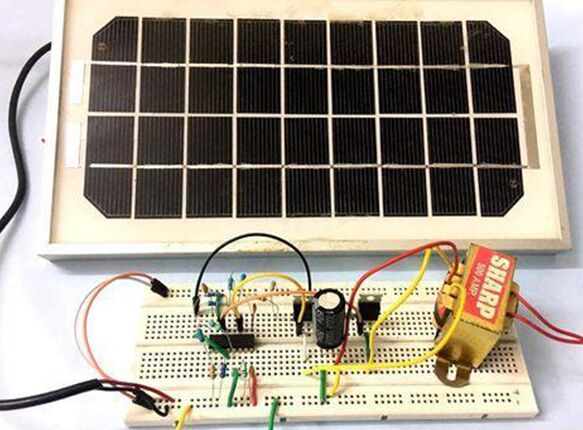

Solar inverter circuit
Source: Pinterest

When array sizes are small and getting the most performance out of every panel is a problem, microinverters have become popular. The residential sector has seen the most success with microinverters since there is less room for panels, which limits array size, and there is frequently a problem with shade from surrounding trees or other objects.

Additionally, manufacturers of microinverters contend that while their technology has a higher initial cost than string inverters, it will end up costing less overall. It makes sense that micros would have a better payback over time if they improved the efficiency and output of the solar system and were more dependable. The extent to which they do so relies on a variety of elements, including the cost of the string inverter system, shading, and soiling of the system, and electricity tariffs.
