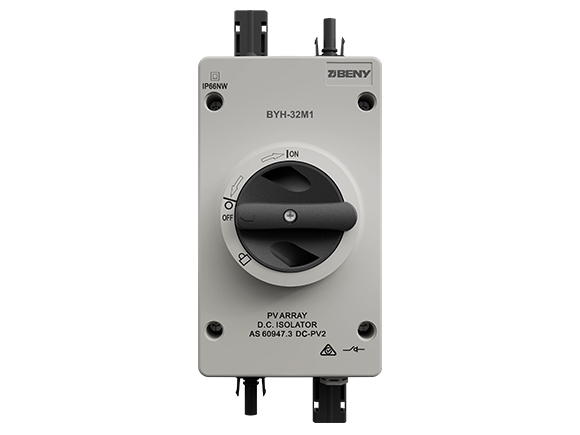

  • DC ISOLATOR BYH 32M1 2

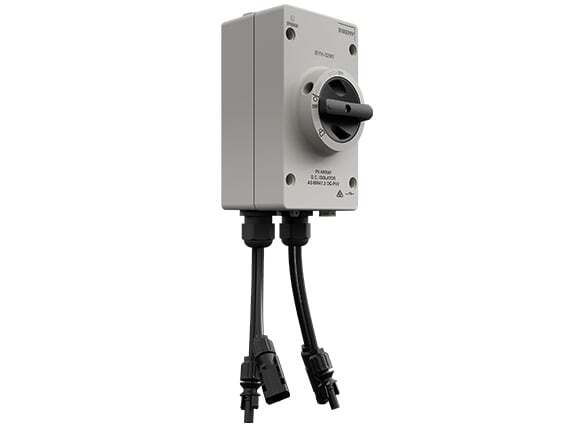

  • DC ISOLATOR BYH 32M1 with cable 2
  • DC ISOLATOR BYH 32M1 2
  • DC ISOLATOR BYH 32M1 with cable 2

DC Isolator 1000V 32A with MC4 IP66 BYH-32M1 IEC&AS

BENY New Energy BYH-32M1 IP66 DC Isolator with MC4 1000V DC 32A 2 Pole Solar Isolator Switch TUV/ CB Certified

Highlights :

  • 1000Vdc 32A
  • IP66 for any positions mounting
  • UV resistance and flame retardant material
  • 3ms arc suppression
  • AS 60947.3:2018 DC-PV2, IEC 60947.3
  • Breather valve
  • Pre-wired MC4 connectors
  • Lockable at off position
  • as tuv icon
  • TUV 100X100 icon
  • rohs

The first DC isolator fully compliant with AS 60947.3:2018 DC-PV2

In Australia and New Zealand DC isolating switches must have a valid Certificate of Conformity confirming the product complies with AS 60947.3:2018 DC-PV2.



And a breathing valve shall be attached on the DC isolator.



BYH-32M1 solar DC isolator up to 1000V is designed according to IEC60947-3 DC-21B / AS60947.3:2018 DC-PV2 standard.



The first DC isolator compliant with AS 60947 requirements, and can be used in worldwide solar DC systems.

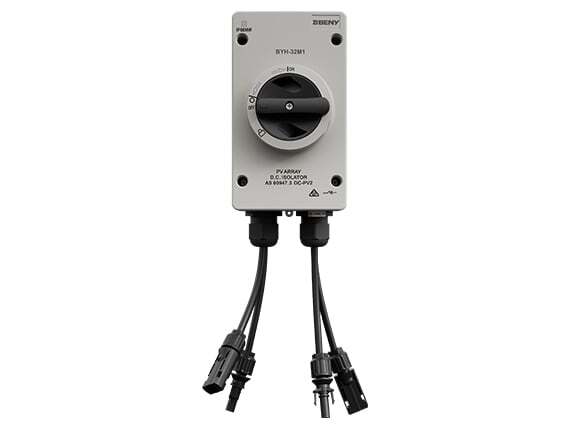

Pre-wired DC isolator with MC4 connectors

The DC isolator switch BYH-32M1 is wired with MC4 for faster and safer installation.



Pre-wired MC4 in factory avoid the loose wiring or failure installation.

SPECIFICATION

Model BYH-32M1
Poles 2P
Standard AS60947.3:2018,IEC60947.3
Utilization Category DC-PV2 / DC-21B
Rated Operational Voltage (Ue) 500V,600V,800V,1000V
Rated Current 9A-40A
Mechanical Cycle 15000
Electrical Cycle 1000
Protection Degree IP66 enclosure/IP20 switch body
Polarity No Polarity
Certificate TUV / CB
