DC Disconnect Switch 1000V 50A BYSS.1-50/T IEC&AS

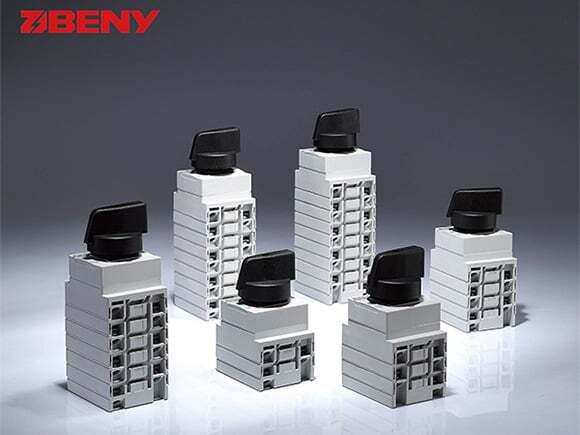

BENY Electric BYSS.1-50/T DC Isolator 1000V DC 50A Panel Mounting 2P 3P 4P 6P 8P 9P Solar Isolator Switch

Highlights :

  • Panel mounting
  • IEC60947.3/AS60947.3
  • 800V/1000V at 15A to 50A
  • Patented arc extinguishing instruction for arc interruption in 3ms.
  • rohs
  • TUV 100X100
  • as tuv icon

800V 1000V levels DC disconnect switch IEC60947.3

The BYSS.1-50/T (panel mounting) series DC switch is developed for solar PV high power voltage.



Compact switch body design for solar inverter build-in DC switch, solar combiner box and a full range of DC applications.



Up to 1000VDC 50A circuit with single conductor.

SPECIFICATION

Model BYSS.1-50/T
Poles 2P 3P 4P 6P 8P 9P
Rated Operational Voltage (Ue) 800V,1000V
Rated Current 15A-50A
Mechanical Cycle 10000
Electrical Cycle 300
