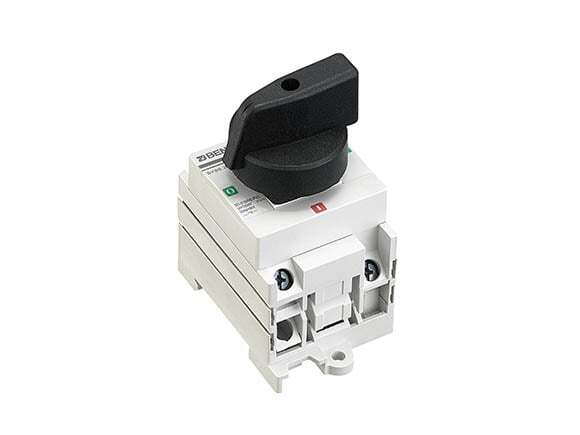

  • BYSS.2 2P

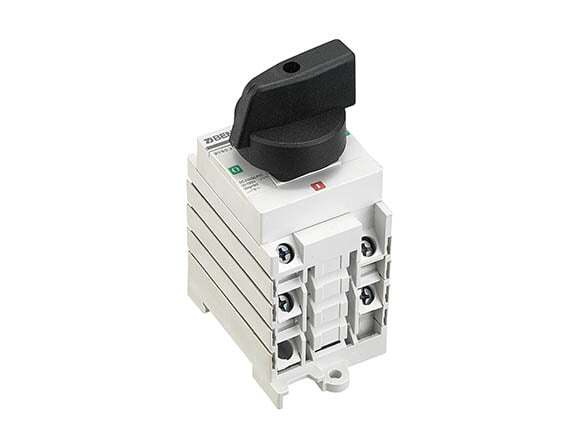

  • BYSS.2 4P
  • BYSS.2 6P
  • BYSS.2 8P
  • BYSS.2 2P
  • BYSS.2 4P
  • BYSS.2 6P
  • BYSS.2 8P

DC Disconnect Switch 1000V 50A BYSS.2-50 IEC&AS

BENY New Energy BYSS.2-50 DC Isolator 1000V DC 50A Din Rail Mounting 2P 4P 6P 8P Solar Isolator Switch

Highlights :

  • Din rail mounting
  • IEC60947.3/AS60947.3
  • 800V/1000V/1200V at 15A to 50A
  • Patented arc extinguishing instruction for arc interruption in 3ms.
  • rohs
  • TUV 100X100 icon
  • as tuv icon

800V 1000V levels DC disconnect switch IEC60947.3

The BYSS.2-50 (din rail mounting) series DC switch is developed for solar PV high power voltage.



Compact switch body design for solar inverter build-in DC switch, solar combiner box and a full range of DC applications.



Up to 1000VDC 50A circuit with single conductor.

SPECIFICATION

Model BYSS.2 -50
Poles 2P 4P 6P 8P
Rated Operational Voltage (Ue) 800V,1000V
Rated Current 15A-50A
Mechanical Cycle 10000
Electrical Cycle 300
