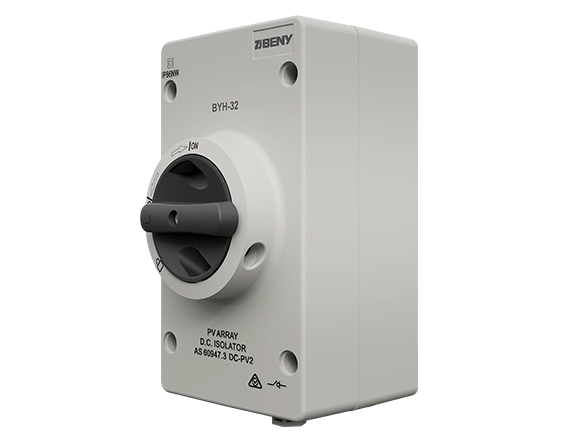

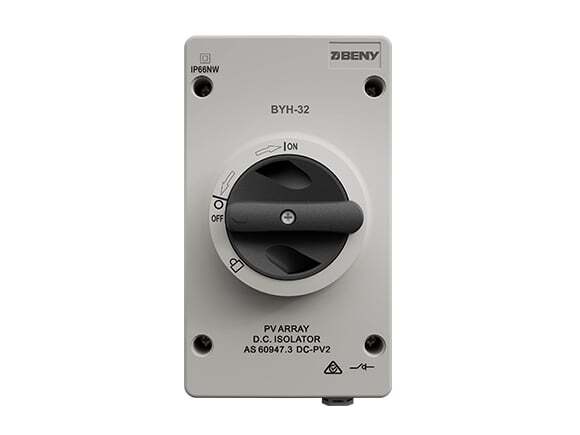

DC Isolator 1000V 32A IP66 BYH-32 IEC&AS

BENY Electric BYH-32 IP66 DC Isolator 1000V DC 32A 2 Pole 4 Pole Solar Isolator Switch SAA/ TUV/ CB Certified

Highlights :

  • 1000Vdc 32A
  • IP66 for any positions mounting
  • UV resistance and flame retardant material
  • 3ms arc suppression
  • AS 60947.3:2018 DC-PV2, IEC 60947.3
  • Breather valve
  • Lockable at off position
  • TUV 100X100
  • SAA Aproved icon
  • rohs

The first DC isolator fully compliant with AS 60947.3:2018 DC-PV2

In Australia and New Zealand DC isolating switches must have a valid Certificate of Conformity confirming the product complies with AS 60947.3:2018 DC-PV2.



And a breathing valve shall be attached on the DC isolator.



BYH-32 solar DC isolator up to 1000V is designed according to IEC60947-3 DC-21B / AS60947.3:2018 DC-PV2 standard.



The first DC isolator compliant with AS 60947 requirements, and can be used in worldwide solar DC systems.

Selected material and higher level test for 0 failure and safe in solar application

UV resistance and V0 flame retardant plastic material.



Patented arc extinguished instruction ensures the reliable electrical insulation performance.



Recommended to solar installers as a standard Solar isolator.



Find more info from the grid connected solar PV systems install and supervise guidelines here.

SPECIFICATION

Model BYH-32
Poles 2P  4P
Standard AS60947.3:2018,IEC60947.3
Utilization Category DC-PV2 / DC-21B
Rated Operational Voltage (Ue) 500V,600V,800V,1000V
Rated Current 9A-40A
Mechanical Cycle 15000
Electrical Cycle 1000
Protection Degree IP66 enclosure/IP20 switch body
Polarity No Polarity
Certificate SAA / TUV / CB
