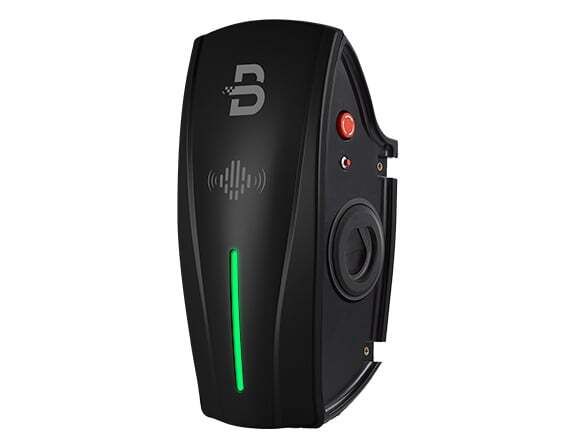

AC EV Charger with Shutter

BENY Electric Smart EV Charger with Type 2 (IEC 62196-2) Plug Socket IP55 Electric Vehicle Charging Station EV Wallbox CE Certified

Highlights :

  • 1-Phase from 1.3kW to 7.4kW
  • 3-Phase from 4.1kW to 22kW
  • Full Protection
  • Dynamic Load Balancing (optional)
  • Open Charge Point Protocol (optional)
  • Customize All Types of Connectors
  • Smart Version with APP (optional)
  • 3 Years Warranty
  • rohs
  • CE-Certified icon
  • CB icon
  • RCM icon
  • ocpp 1 6 icon

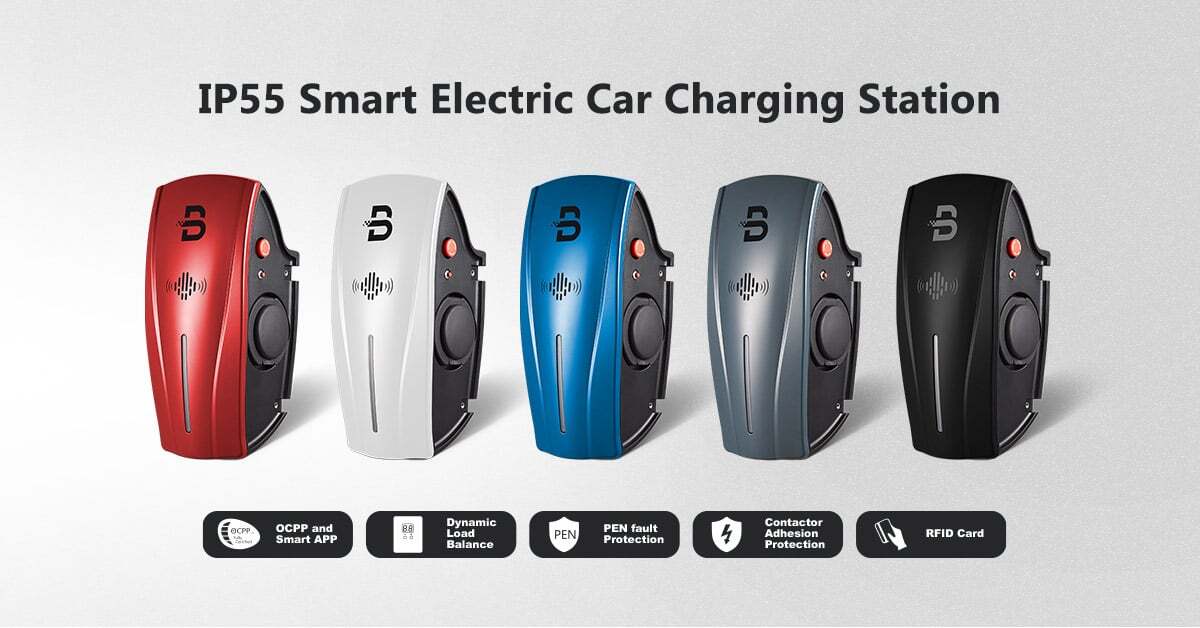

  • beny ip55 ev charger with shutter

A MODE 3 (IEC61851-1) FAST EV CHARGER FOR RESIDENTIAL USE

BENY smart EV charger has an IP55 patented design case for outdoor and indoor use.



The type 2 plug shutter makes highly flexible and compatible with all electric vehicles.



Find us- Zhejiang Benyi Electrical in KfW Funding Wallbox Charging Station List

  • socket type2 with shutter

TYPE 2 CHARGING SOCKET WITH SHUTTER

Charging socket type 2 with shutter is based on the proven charging socket type 2 with an additional shutter module, with additional protection against contact of electrical parts.

  • BENY DLB
  • BENY Electric DLB box 1

Dynamic Load Balancing Function

To safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way.



DLB (Dynamic Load Balancing) is available in the BENY BCP series AC EV Charger for home use, when the EV charger is working with other household appliances at the same time, the DLB box can maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home over load.

  • PEN fault EV charging

PEN FAULT DETECTION

Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.



If the user uses an EV charger equipped with PEN protection, its internal design has a contactor to cut off the ground, once the PEN line is cut off, the contactor KM1 and KM2 are immediately and automatically disconnected, there is only a weak leakage current between CP and PE to L line, its current value is less than 1mA, which is the smallest perceived leakage current of the human body, people can disengage themselves, no safety risks.

  • EV charger APP

SMART APP FOR OPTION

BENY EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:



✔ One to one binding EV charger by resetting the password, prevent the EV charger being stolen;



✔ View charging data and status;



✔ Set up various charging configurations, charging current, DLB mode, etc.



✔ Scheduled charging;



✔ Firmware update;

FEATURES/ADVANTAGES

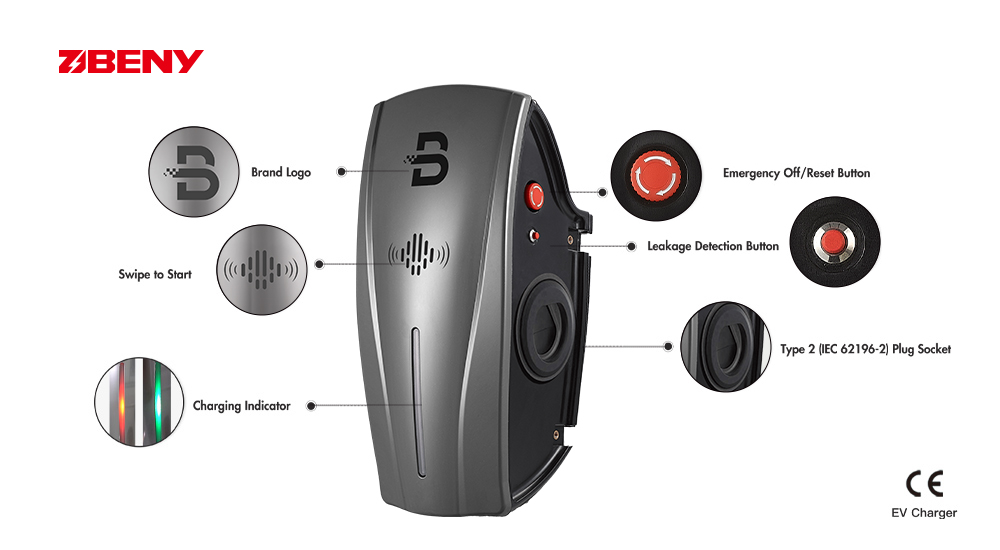

  • beny ev wallbox shutter
  • IP55 protection
  • Temperature Sensing and Emergency 2

RFID card to charge automatically



Type 2 (IEC 62196-2) plug socket without cable



  • Built-in Type B RCD for Leakage Protection
  • Over Temperature Sensor
  • Clip-on Grid Current Sensor
  • LED Ring Status Indication
  • With Emergency Stop Switch

SPECIFICATION

Electrical
Charging capacity 1.3kW-7.4kW / 4.1kW-22kW
Charge mode Mode 3 (IEC 61851-1)
Output power Selectable 1-phase or 3-phase, 230-400V

6 A to 32 A, 50-60 Hz

Connector options Fixed cable type 2 plug or type 2 Socket
Fixed cable length 6m (18 ft)
Cable Entry Rear or bottom
Protection and certification
Build-in RCD TYPE A + DC6mA leakage sensor built-in
With Cable IP65, IK07
Socket IP65, IK07
Housing fire ratings V0
Operating temperature -25 – +55℃
Compliance IEC61851-1, IEC61851-21-2,

IEC61000-4

CE EMC EU/2014

CE Low Voltage EU/2014/35

Certificate CE, CB, RCM
Connectivity
Authorization Auto-start standard / RFID card option
Status indication LED ring
Charging protocol OCPP 1.6J optional
WLAN communication Wi-Fi / Bluetooth 4.2 option
Mechanical
Housing Polycarbonate
Dimension W169 x H380 x D151 mm
Mounting Wall or Pole
