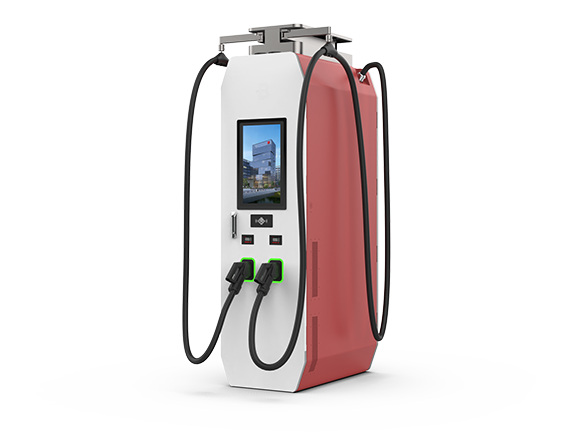

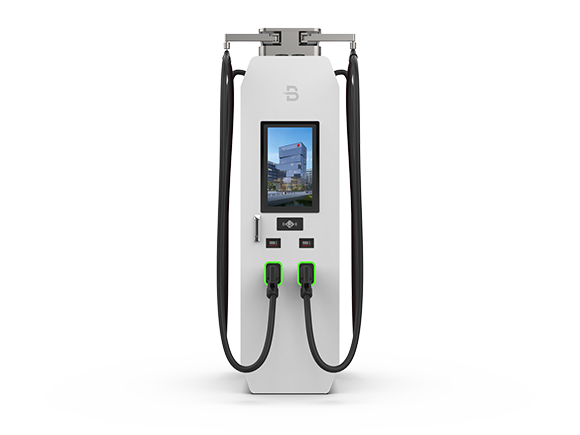

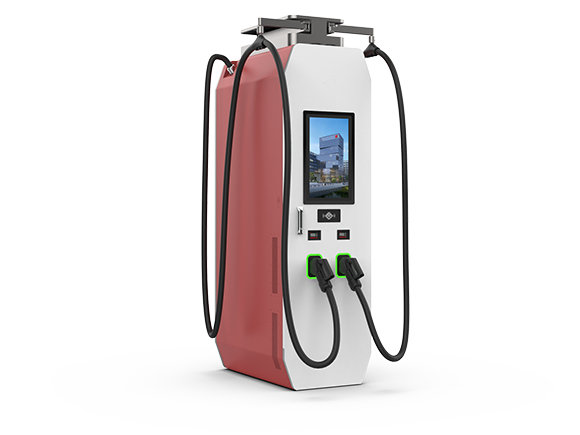

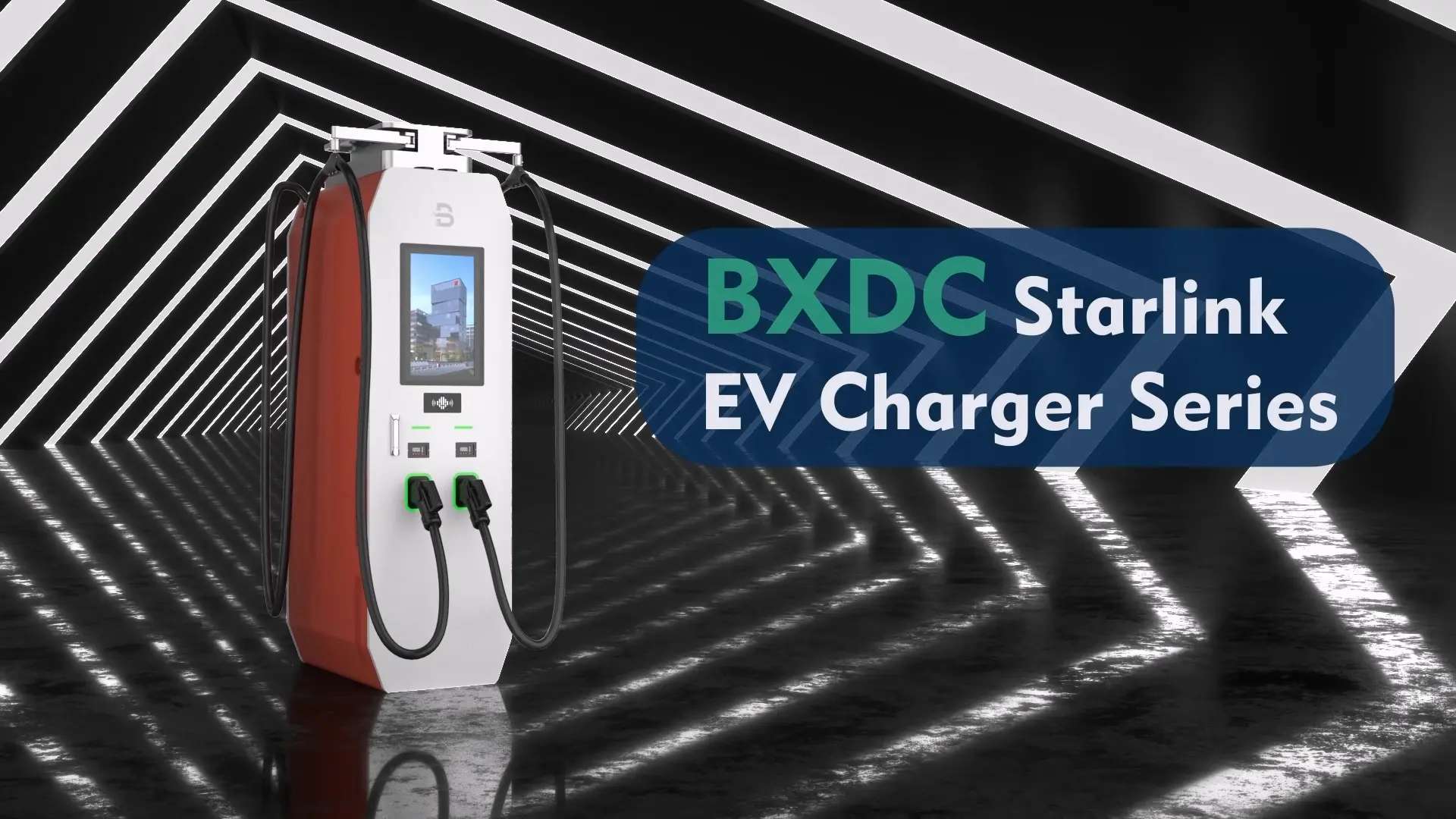

BENY 80kW to 240kW Starlink DC EV Charger features dynamic power sharing among 2–4 DC EV chargers, enabling total power output of up to 960kW to meet high-speed charging demands.

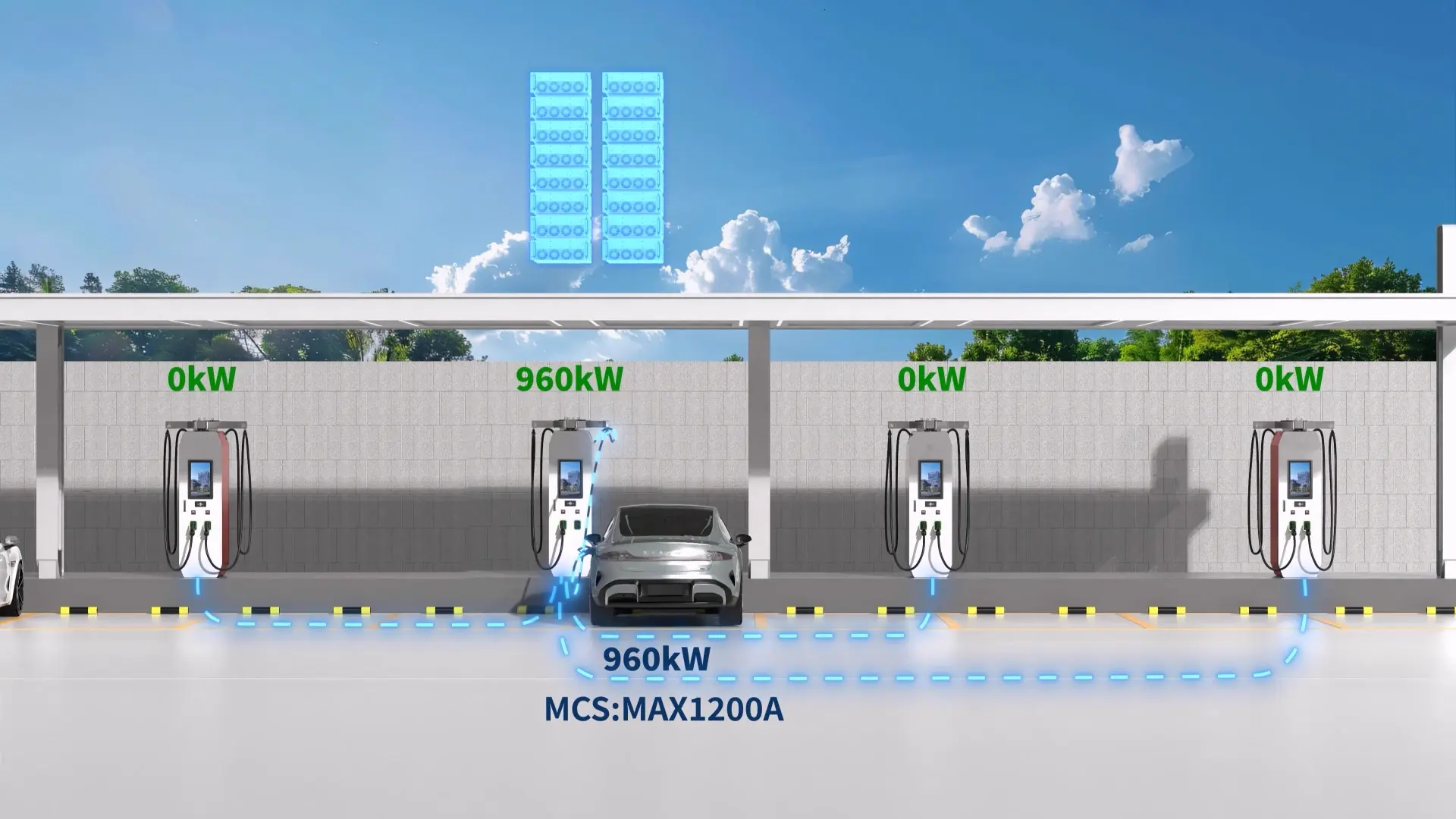

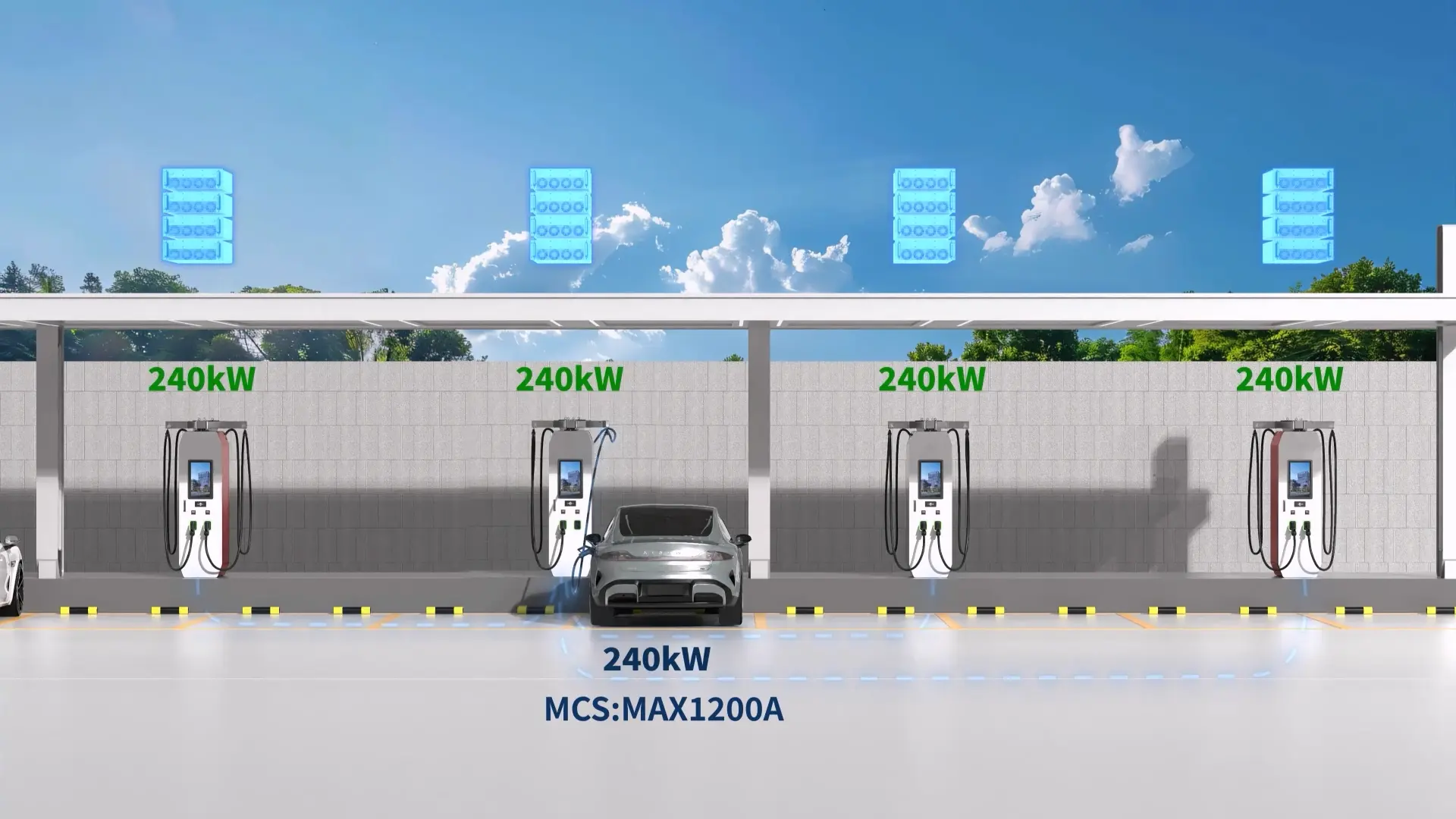

The Starlink DC EV charger has the function of dynamic power sharing among the DC EV chargers. Through dynamic power sharing, the power of all DC EV chargers can be delivered to the one charging connector. The max power can be up to 960kW, which brings MCS ultra-fast charging performance for vehicles like e-truck, e-bus,e-construction vehicles, e-mining trucks, and other heavy-duty commercial vehicles. (Please note that this function is customized.)

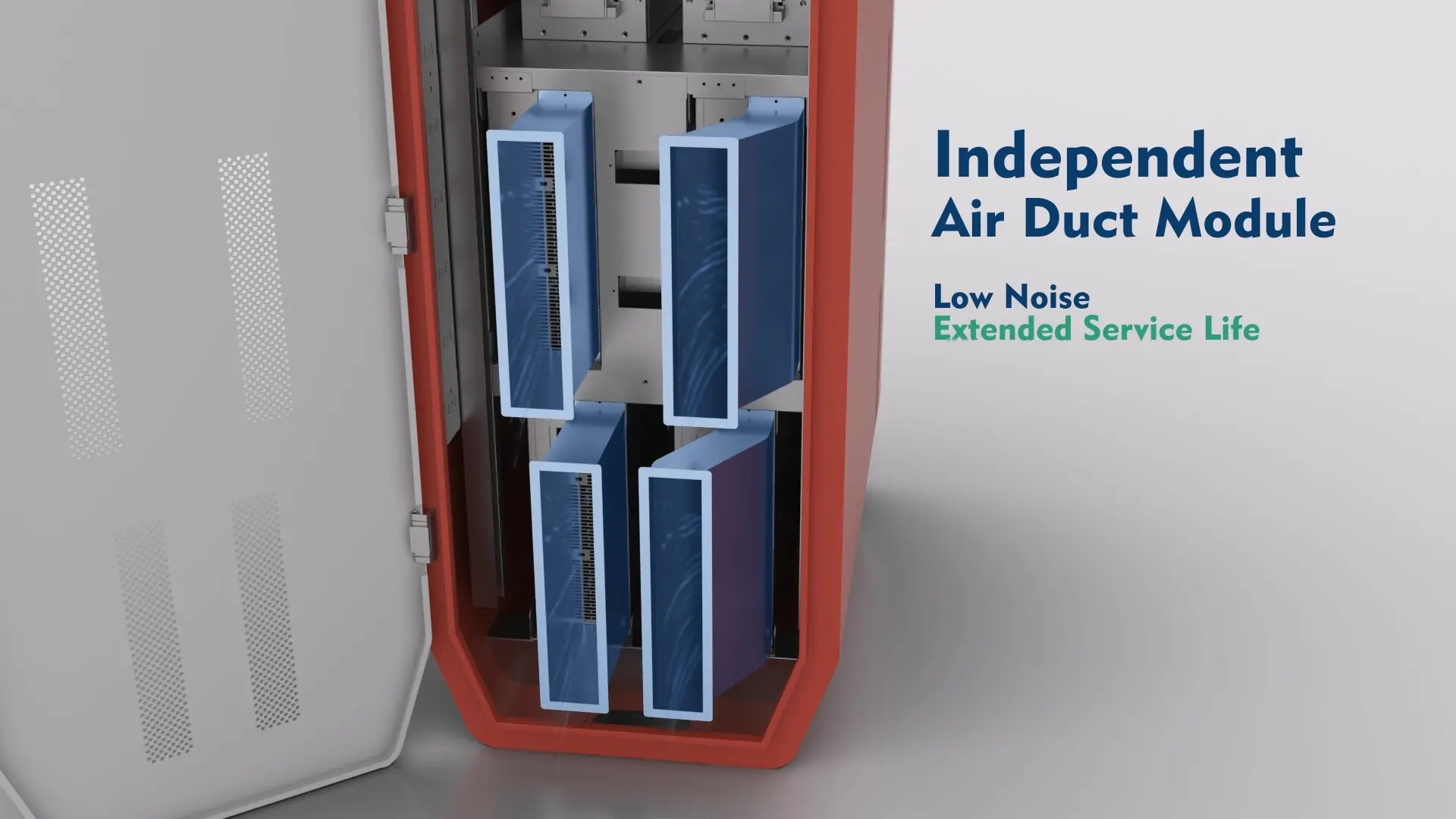

This Starlink DC EV charging station adopts Independent Air Duct module. With IP65 independent air duct module, the dc ev chargers can operate reliably in harsh charging environments. Also, the noise of this module is below 40dB, ensuring dc ev chargers operate in the high-protection, low-noise charging scenarios such as scenic areas, hospitals, residential communities, and hotels.

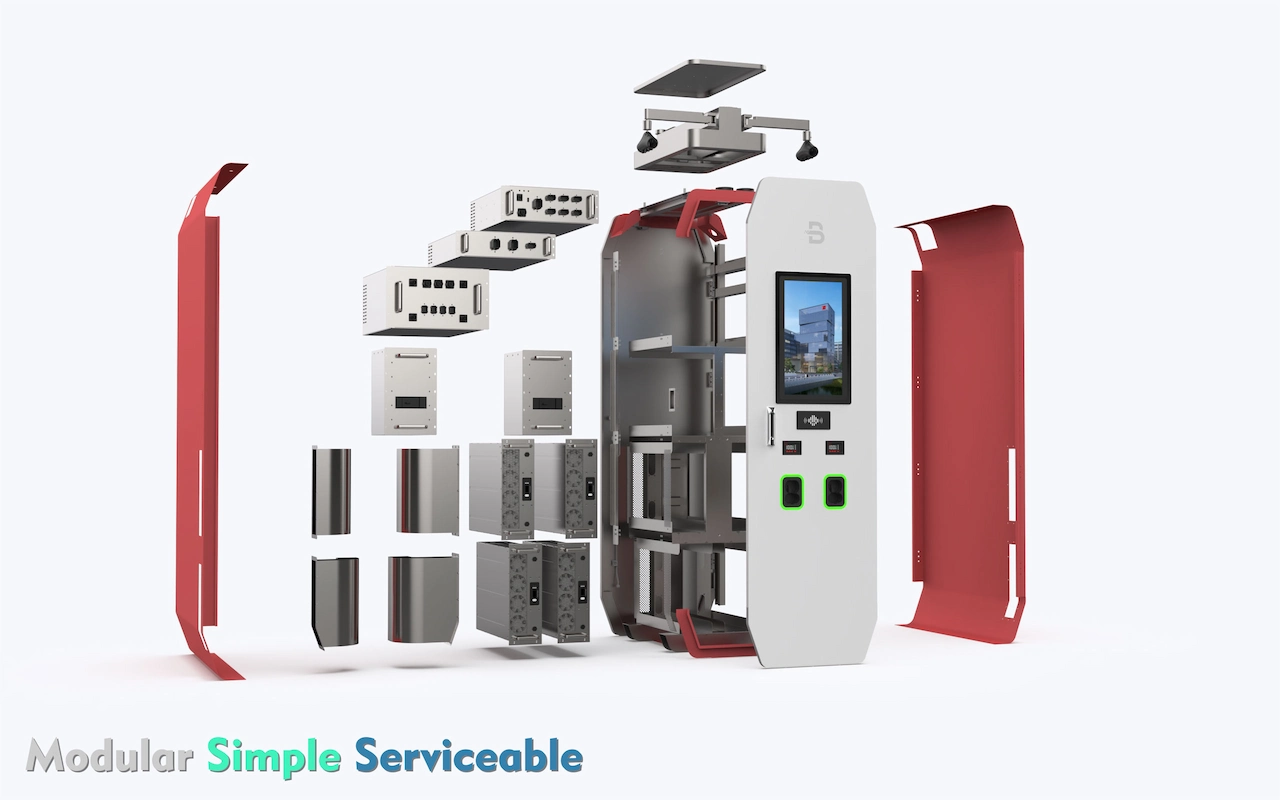

It features a modular design with flexible module configuration, allowing power modules to be freely combined or upgraded according to actual charging demands. This enables scalable charging solutions for different power requirements while simplifying maintenance and servicing. The modular architecture also helps reduce initial investment costs and supports smarter operation and maintenance, further lowering overall operating expenses.
80kW to 240kW
5 years warranty
IP55 rating
Efficiency≥ 95%
OCPP1.6/2.0.1
Ethernet/4G/WiFi
Full Protection
RFID/APP Control
| Model | BXDC80-D | BXDC120-D | BXDC160-D | BXDC180-D | BXDC240-D |
| Structure Description | |||||
| Shell material | Galvanized Sheet | ||||
| Dimension | 1156*560*1980(L*W*H mm) | ||||
| Charging Temminal Dimension | 1240*640*2150(L*W*H mm) | ||||
| Rectifier Cabinet Weight | ≤340kG | ≤360kG | ≤380kG | ≤400kG | ≤420kG |
| Charging Temminal Weight | ≤110KG | ||||
| Installation Method | Floor-stand type | ||||
| Cable routing | Bottom inlet wiring,up outlet wiring | ||||
| Cable length | 5 M | ||||
| Charging outlets | CCS1/CCS2/CHAdeMO/GBT/NACS | ||||
| Connectivity authorization | RFID, App | ||||

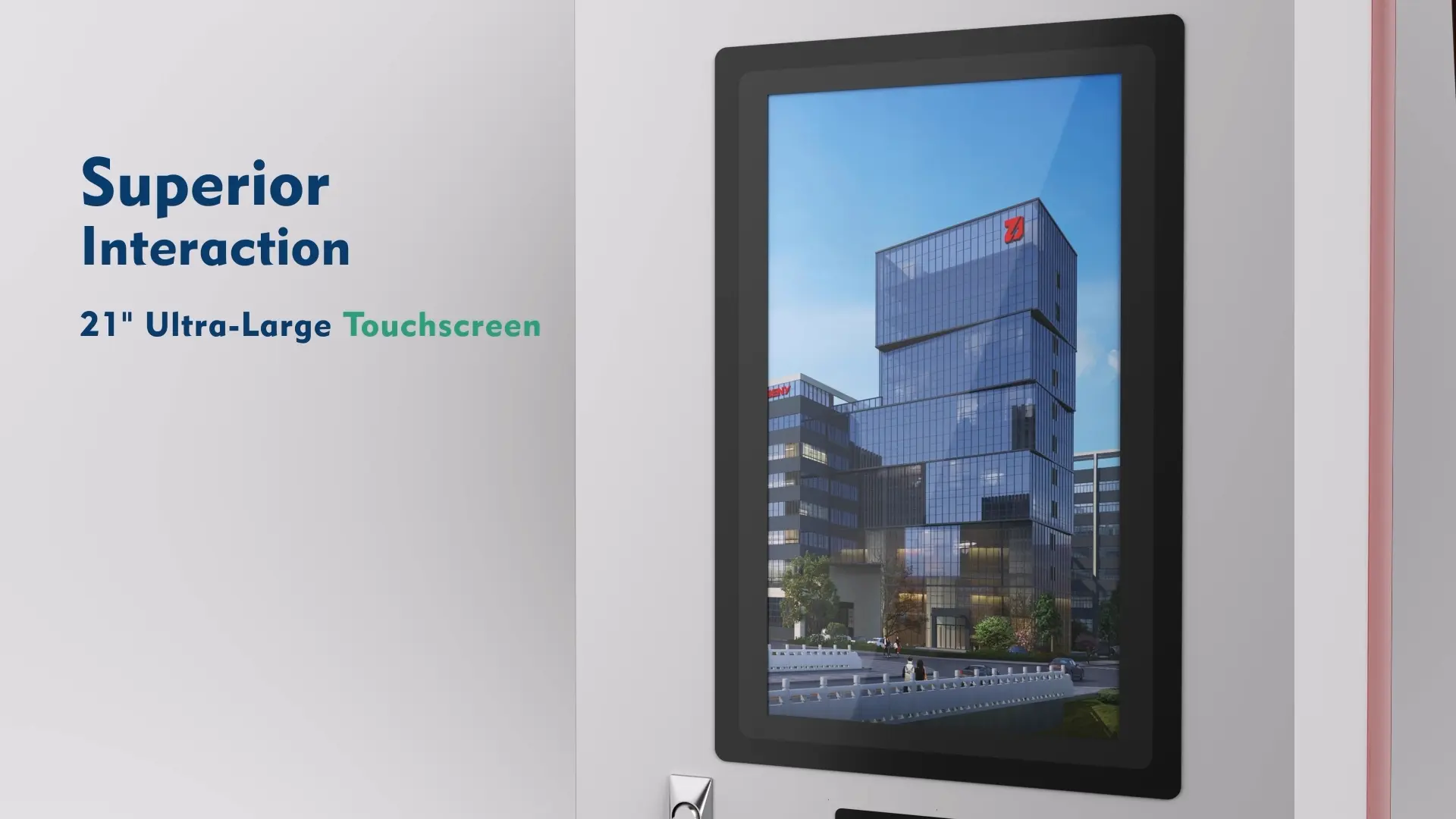

| Screen | 21 Inch LCD Screen/LED Light | ||||
| Electrical Specification | |||||
| AC input voltage | AC380V-415V, 3P+N+PE | ||||
| Rated Input Current | 136A | 203A | 272A | 306A | 408A |
| Input frequency | 50Hz/60Hz | ||||
| Consumption | ≤24W | ||||
| Rated power | 80kW | 120kW | 160kW | 200KW | 240kW |
| Output voltage range | CCS1/CCS2/NACS/GBT: 150Vdc ~ 1000Vdc;CHADEMO: 150Vdc ~ 500Vdc | ||||
| Output current | CCS1/CCS2/NACS/GBT:0~250A;CHADEMO:0~150A | ||||
| Efficiency | ≥95% | ||||
| Power Factor | ≥0.99(load:100%) | ||||
| Communication | |||||
| OCPP | OCPP 1.6 | ||||
| Network interface | Ethernet/4G/Wifi | ||||
| Environment condition | |||||
| Application place | Indoor/Outdoor | ||||
| Working latitude | <2000m | ||||
| Working temperature | -30°C~+55°C | ||||
| Working humidity | 5%~95% | ||||
| Protection level | IP55 IK10( Screen IK08 ) | ||||
| Natural cooling | Forced-air cooling | ||||
