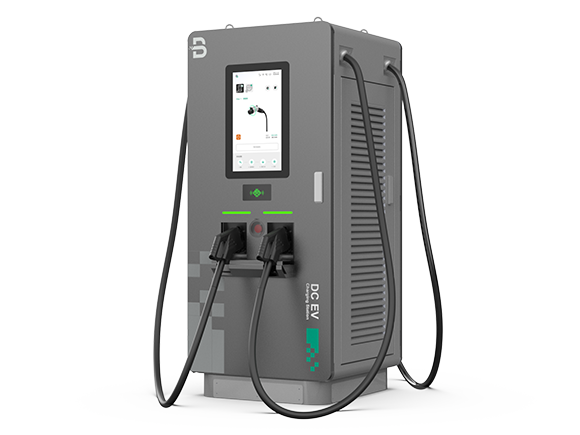

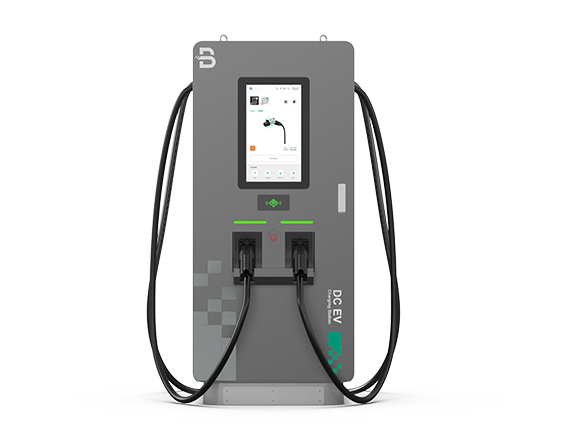

Delivering flexible high-power charging from 120kW to 480kW, the BENY 4-Gun DC Fast Charger supports simultaneous charging for up to 4 electric vehicles.

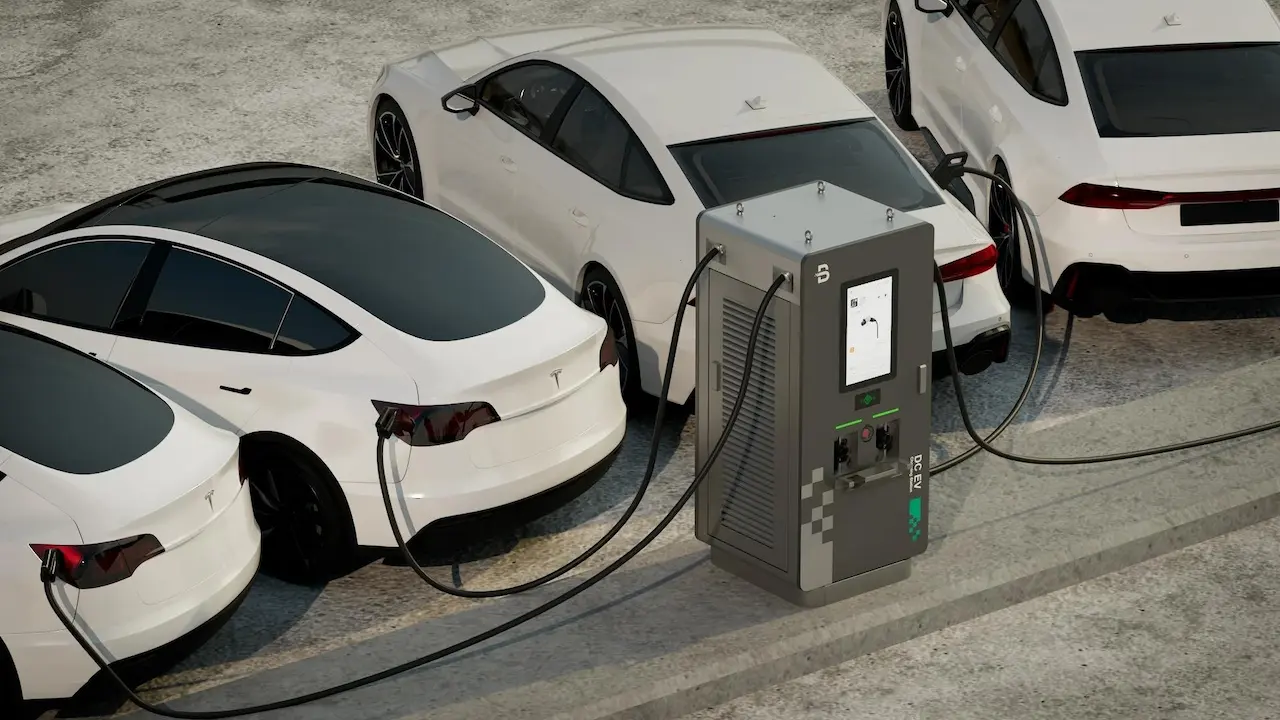

The BENY 4 Guns DC EV Charging Station supports simultaneous charging for up to four EVs, significantly improving charging efficiency and reducing waiting time at high-traffic charging sites. With flexible power configurations from 120kW to 480kW, intelligent connectivity, and broad connector compatibility, it is an ideal fast charging solution for commercial EV fleets, public charging hubs, and highway service stations.
Adopting ring charging power distribution with intelligent power sharing capability
The screen automatically wakes up when someone approaches and goes into sleep mode when they leave, effectively reducing standby power consumption.
The product will automatically trigger an alarm if it tilts or tips over due to collisions or similar impacts.
Real-time monitoring of internal product temperature. When temperatures exceed safe limits, the system automatically reduces performance to prevent component degradation caused by prolonged high-temperature exposure.
4 Guns DC
120kW – 480kW
21 Inch Touch Screen
IP55 Rating
Ethernet/4G/WiFi
Full Protection
OCPP 1.6J/2.0.1
RFID/APP Control
| Structure Description | ||
| Shell material | Carbon Steel | |
| Dimension | 800*900*1900(L*W*H mm) | |
| Weight | ≤565kG | |
| Installation Method | Floor-stand type | |
| Cable routing | Bottom inlet wiring,up outlet wiring | |
| Cable length | 5 M | |
| Charging outlets | Quadruple(A+B+C+D) (A:CCS1/CCS2/GBT/CHADEMO/NACS) (B:CCS1/CCS2/GBT/CHADEMO/NACS) (C:CCS1/CCS2/GBT/CHADEMO/NACS) (D:CCS1/CCS2/GBT/CHADEMO/NACS) | |
| Connectivity authorization | RFID, App | |
| Screen | 2*(21 Inch LCD Screen/LED Light) | |
| Electrical Specification | ||
| AC input voltage | AC380V-415V, 3P+N+PE | |
| Input frequency | 50Hz/60Hz | |
| Rated power | 120kW /150kW/ 160kW / 180kW / 200kW / 210kW/ 240kW/ 270kW/ 280kW/ 320kW/ 330kW/ 360kW/ 400kW/ 440kW/ 480kW | |
| Output voltage range | CCS1/CCS2/GBT/NACS: 150Vdc ~1000Vdc; CHADEMO: 150Vdc ~ 500Vdc | |
| Output current | CCS1/CCS2/GBT/NACS:0~250A; CHADEMO:0~150A | |
| Efficiency | ≥95% | |
| Communiction | ||
| OCPP | OCPP 1.6 | |
| Network interface | Ethernet/4G/Wifi | |
| Environment condition | ||
| Application place | Indoor/Outdoor | |
| Working latitude | <2000m | |
| Working temperature | -30°C~+50°C | |
| Working humidity | 5%~95% | |
| Protection level | IP55 IK10( Screen IK08 ) | |
| Natural cooling | Forced-air cooling | |
| Warranty | 36 months warranty | |
