Recognizing the paramount importance of safety and reliability in the charging process of electric vehicles (EVs), it is crucial to understand the intricate protection functions embedded in EV chargers. These safeguards are meticulously designed to address potential risks and ensure the secure operation of the charging system. This article will intricately examine protection functions such as undervoltage protection, leakage protection, and lightning protection.

The Significance of Protection Functions

Given the susceptibility of EV chargers to external influences like grid fluctuations and weather variations, both the EV charger and the electric vehicle face potential threats. The incorporation of a diverse array of protection functions serves the purpose of safeguarding EV chargers and electric cars from voltage fluctuations, power interruptions, elevated temperatures, and other external factors. This comprehensive approach enhances the overall safety, stability, and durability of the EV charger, providing users with a sense of confidence and assurance during the charging operation.

1

Understanding Protection Functions in EV Charging Systems


1.Undervoltage Protection
Explanation: Monitors the voltage level of the input power source. If it falls below a predefined safe threshold, the system promptly interrupts the charging process.
Application: Prevents damage to EV chargers and electric vehicles in instances of unstable or abnormally low grid voltages.


2.Overvoltage Protection
Explanation: Detects whether the voltage of the input power source exceeds the safe limit. If excessive voltage is detected, the system interrupts the charging process.
Application: Safeguards EV chargers and electric vehicles from overvoltage situations caused by grid overvoltage or other factors.

2

3.Leakage Protection
Explanation: Utilizes a residual current device to detect the presence of leakage current, prompting the system to promptly interrupt the power supply upon detection.
Application: Safeguarding users from electric shock hazards, ensuring human safety.


4.Grounding Protection
Explanation: Ensures the effective grounding of the metallic components within the EV charger, thereby diminishing the likelihood of electric shock.
Application: Mitigates potential grounding issues arising from equipment malfunctions or other factors, thereby augmenting overall safety measures.


5.Overcurrent Protection
Explanation: Monitors current levels during the charging process. If the detected current exceeds the rated value, the system interrupts charging to prevent equipment overload.
Application: Prevents overcurrent situations caused by equipment malfunctions or other reasons, protecting EV chargers and electric vehicles.

3

6.Neutral and Live Wire Reverse Connection Protection
Explanation: Checks the connection status of the Live and Neutral Wires in the power source to ensure correct connection.
Application: Prevents equipment damage or safety hazards caused by incorrect connections.


7.Over Temperature Protection
Explanation: Monitors the temperature of the EV charger using temperature sensors. If it exceeds the safe range, the system automatically stops charging.
Application: Prevents damage due to overheating, ensuring the stability of the charging process.


8.CP Signal Abnormal Protection
Explanation: Examines the CP signal communication integrity between the EV charger and the electric vehicle. Upon detecting irregularities, the system promptly halts the charging process.
Application: Safeguards the communication system against abnormal conditions.


9.Contactor Adhesion Protection
Explanation: Identifies potential jamming or adhesion in the internal contactors of the EV charger. In case of detection, the system initiates corrective measures.
Application: Averts charging disruptions caused by contactor issues, thereby enhancing equipment reliability.

10.Lightning Protection
Explanation: Incorporates surge protectors to forestall damage inflicted by lightning strikes, acknowledging lightning as a notable threat to EV chargers.
Application: Safeguards charging equipment from lightning strikes during thunderstorms, guaranteeing the steadfast operation of the equipment.

Beny Intelligent EV Charging Solutions
Beny offers users cutting-edge charging solutions that not only include the mentioned protection features but also seamlessly integrate various intelligent functionalities for a more streamlined, secure, and efficient charging experience. Our product portfolio encompasses AC and DC EV chargers, spanning a power range from 3.7 kW to 262 kW. We provide versatile options, including portable, wall-mounted, and floor-standing installations, featuring configurations ranging from single-gun to triple-gun setups, catering to a diverse spectrum of user requirements.

4

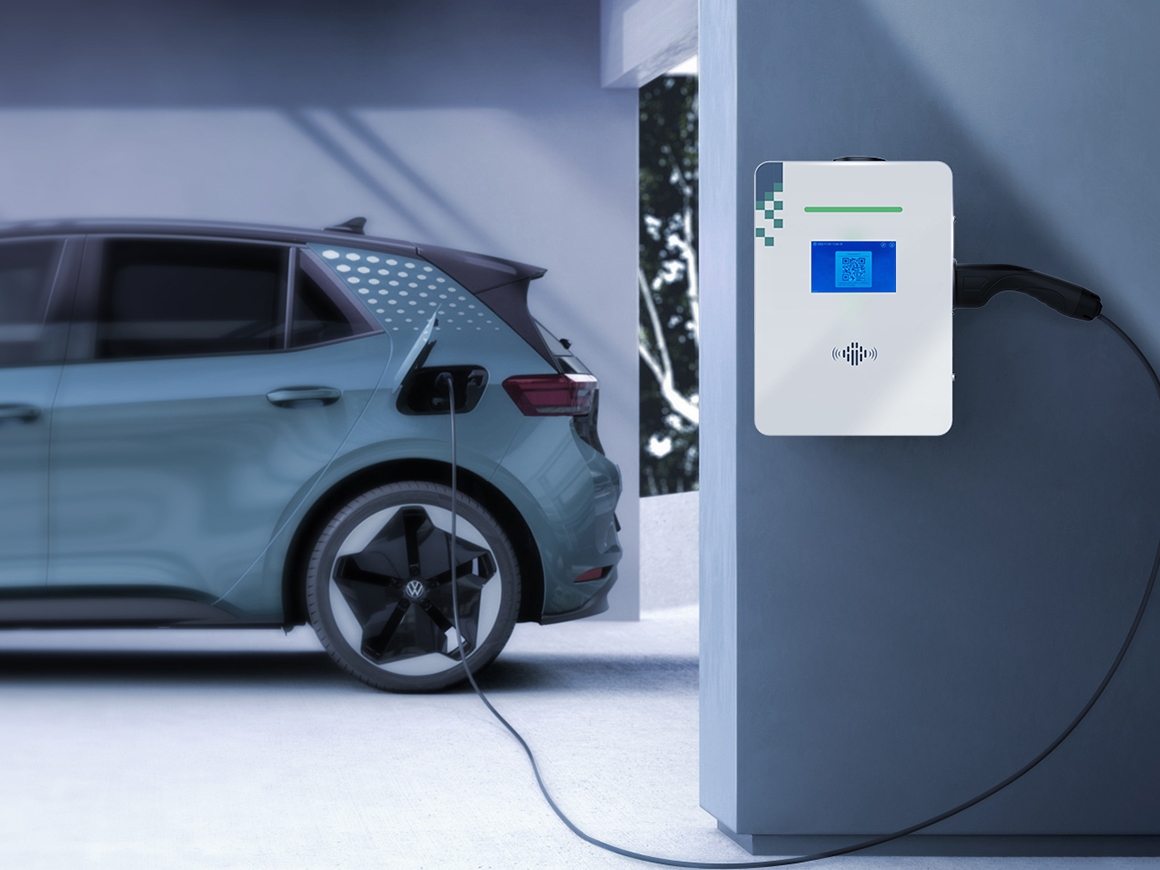

AC EV Chargers:


*Incorporated with an array of protection features to bolster charging safety.
*Features an automatic reset function for seamless troubleshooting, ensuring swift resumption of operations post-issue resolution.
*Facilitates remote charging monitoring and management through Wi-Fi and Bluetooth connectivity, utilizing OCPP protocols, and supports firmware updates.
*Integrates Dynamic Load Balancing (DLB) technology for intelligent power distribution.
*Adheres to industry standards with certifications including CE, UKCA, CB, Australia RCM, and others. Operates within a temperature range of -25°C to +55°C, boasting IP55 and IP65 protection levels, making it suitable for both indoor and outdoor applications.

5

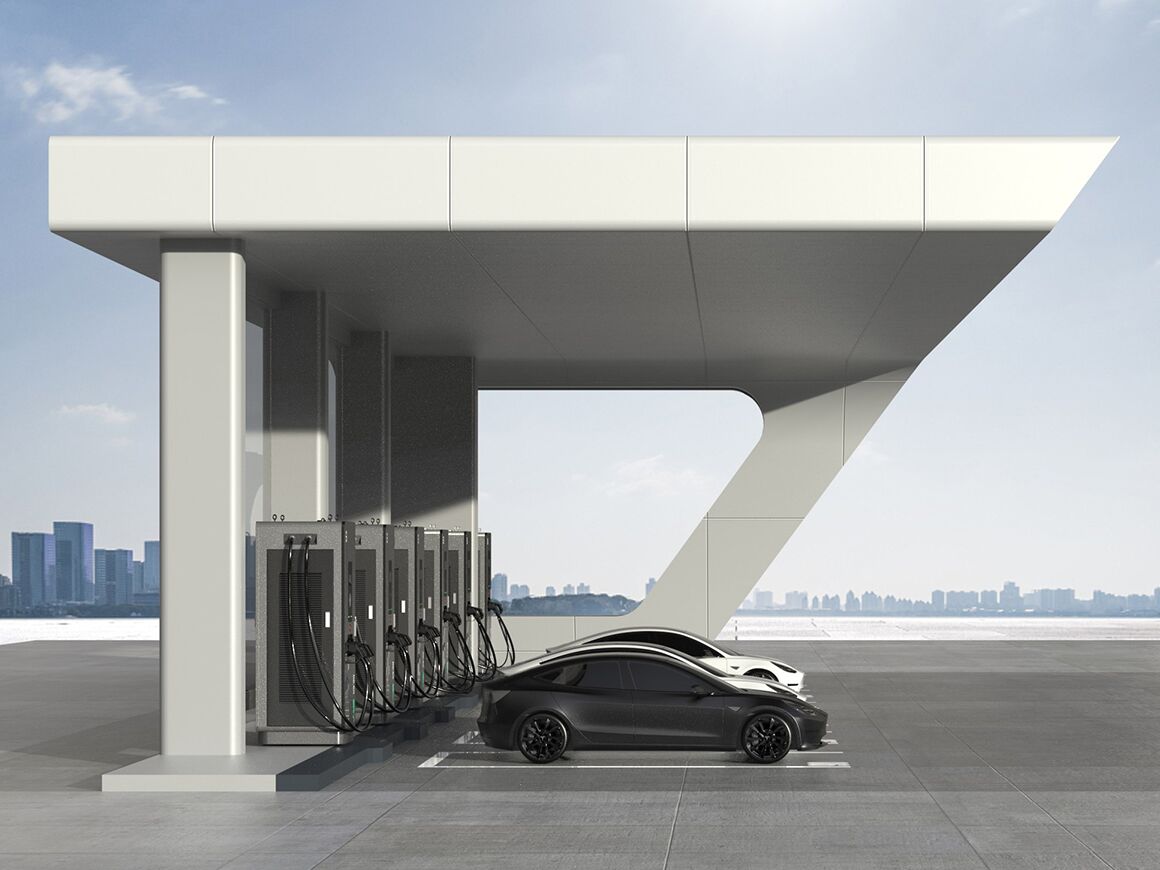

DC EV Chargers:

*Outfitted with cutting-edge charging technology, ensuring proven stability and reliability to meet the demands of large-scale charging.
*Integrates an intelligent recognition function that automatically discerns various vehicle models and their specific charging power requirements.
*Features a modular structure for straightforward installation and maintenance, offering support for multiple payment methods, including PayPal and offline transactions.
*Compatibility with OCPP 1.6J protocol and smart mobile applications facilitates seamless data transmission, real-time monitoring, and effective management.
*Incorporates eco-friendly materials and energy-saving technology, resulting in low power consumption, minimal noise, and zero emissions. Additionally, it showcases exceptional heat dissipation performance, enhancing safety and reliability.
*Holds certifications such as CE, UKCA, OZEV, RoHS, and other authoritative validations, demonstrating compliance with market quality and safety standards.

The protective features embedded within EV chargers are pivotal in upholding the safety, efficiency, and sustainability of eco-friendly transportation. By employing multifaceted safeguards against overcurrent, overvoltage, overheating, and lightning strikes, EV chargers deliver a heightened level of reliability in charging services. This, in turn, fosters the extensive acceptance and advocacy for electric vehicles. As technology progresses, there is an optimistic outlook that the protective functionalities of EV chargers will advance further, ensuring an increasingly secure and convenient charging experience for our journeys.
