Boosting Home Solar Storage and Application Efficiency 101

Home Boosting Home Solar Storage and Application Efficiency 101

Home solar panel investments are growing steadily throughout the world. This is due to a few factors. One is that solar panel efficiency has considerably increased in recent years. With governments establishing ambitious net-zero targets, embracing renewable energy options to reduce carbon impact has become a trend in today’s world.

Home solar panels and solar system accessories are good value for money. Some people, though, aren’t taking sufficient measures to preserve the solar panels’ lifespan efficiency. Their panels don’t produce as much electricity as they should as a result, which costs the money.

Home owners can take a number of actions to preserve the effectiveness of their solar energy storage and application. Here are our top recommendations on how to make solar panels more efficient so that we can get the highest potential electricity output.

What Is Solar Efficiency?

The percentage of solar energy shining on a photovoltaic (PV) device that is transformed into useable electricity is known as the power conversion efficiency of a PV device. Research’s main objective is to increase this conversion efficiency because it lowers the cost of PV technologies so they can compete with other energy sources.

PV cells don’t always turn 100% of the sunshine into power. Most of it is actually gone. The capacity of a solar cell to convert the sunlight it receives for application and battery energy storage is constrained by a variety of design elements. Higher efficiency can be attained by designing with these aspects in mind.

In order to estimate the amount of power a cell will produce, researchers evaluate a photovoltaic (PV) device’s performance. Current and voltage together produce electrical power. Relationships between current and voltage gauge a PV device‘s electrical characteristics.

The current and voltage generated by a cell or module will change in accordance with Ohm’s law if a particular “load” resistance is attached to the two terminals of the device (the current through a conductor between two points is directly proportional to the potential difference across the two points). Efficiency is determined by measuring the current and voltage generated for various load resistances while subjecting the cell to a constant, standard level of light and keeping a consistent cell temperature.

How to Measure Solar Efficiency?

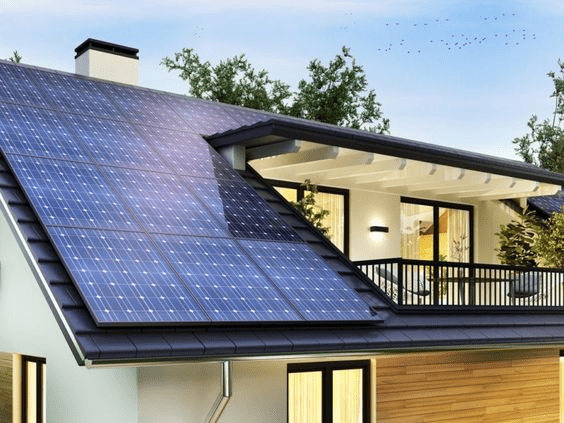

Solar panels
Source: Pinterest

The most widely used parameter to compare the performance of one solar cell to another is efficiency. The efficiency of a solar cell is defined as the ratio of energy production to incoming energy from the sun.

In addition to reflecting the performance of the solar cell, efficiency is affected by the spectrum and intensity of incident sunlight, as well as the temperature of the solar cell.

As a result, in order to compare the performance of one device to another, the parameters under which efficiency is measured must be carefully controlled.

Terrestrial solar cells are measured at a temperature of 25°C and under AM1.5 circumstances. Under AM0 circumstances, solar cells designed for space application are measured.

The page Solar Cell Efficiency Findings contains the most recent top efficiency solar cell results.

The efficiency of a solar cell is defined as the fraction of incident power converted to electricity and is calculated as follows:


A multimeter can be used to measure the electrical output of a solar panel. In any circuit, a multimeter measures current, resistance, and voltage.

The solar panel should receive full sunlight by facing the sun at the optimal angle, and the wattage of the solar panel should be determined at that time.

Factors Affecting Solar Efficiency

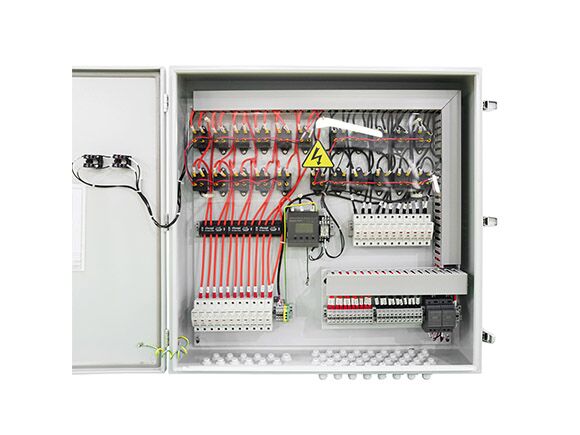

Solar combiner box
Source: Beny

Solar panels are capable of converting over 22% of solar energy into usable energy based on factors like installation, orientation, weather conditions, and so on. The performance of solar power systems depends on the amount of sunshine that falls on the panels and its outcome defines solar panel efficiency.

Not all of the sunlight that strikes a photovoltaic cell is transformed into electricity. In fact, most of it has been lost. A variety of aspects of solar cell design contribute to a cell’s ability to convert the sunlight it receives. Higher efficiency can be attained by designing with these considerations in mind.

Light cells with multiple band gap absorber materials boost efficiency by separating the solar spectrum into smaller bins, each with a greater thermodynamic efficiency limit.

A few factors that affect the efficiency of solar are:


Photons, or energy packets, are the building blocks of light and come in a variety of energies and wavelengths. Wavelengths in the sunlight that reaches the surface of the planet span from ultraviolet to infrared. Some photons are reflected when light hits a solar cell’s surface, whereas others pass straight through.

The energy of some of the absorbed photons is converted to heat. The remaining ones possess sufficient energy to release electrons from their atomic bonds, resulting in charge carriers and electric current.


A “charge carrier,” such as a negatively charged electron, can move through a semiconductor as one route for electric current to flow through it. A “hole,” which denotes the absence of an electron in the material and functions as a positive charge carrier, is another type of such charge carrier.

An electron may combine again after coming into contact with a hole, canceling out their contributions to the electrical current.

The method by which electricity is produced in a solar cell is reversed by direct recombination, in which light-generated electrons and holes collide, recombine, and emit a photon. It is one of the main things that hinder productivity.

When electrons or holes come into contact with an impurity, a flaw in the crystal structure, or an interface, the process is known as indirect recombination. This allows the energy to be released as heat.


Low temperatures are typically the best for solar cells. A modest increase in current is produced but a much larger decrease in voltage as a result of the shifting semiconductor characteristics brought on by higher temperatures.

Extreme temperature increases can also harm the materials in the cell and other modules, reducing their functioning lifetimes. Since most of the sunlight that hits cells converts to heat, effective thermal management increases efficiency and lifespan.


By reducing the amount of light reflected from a cell’s surface, efficiency can be improved. For instance, silicon that has not been treated reflects more than 30% of the light that strikes it. Reflection is reduced by anti-reflection coatings and textured surfaces. A dark blue or black color will indicate a high-efficiency cell.

Why Do We Need to Boost Solar Efficiency?

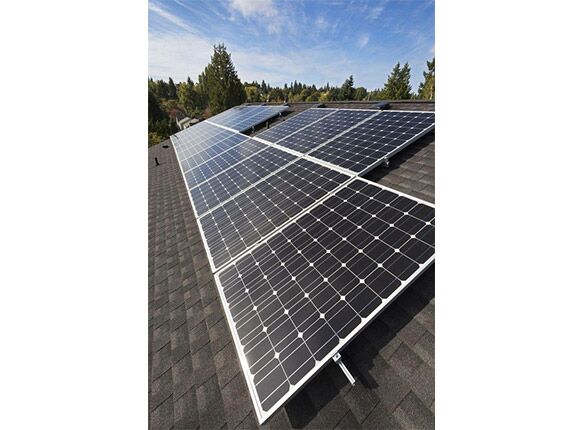

Solar panels functioning
Source: Pinterest

When there is a shortage of space, efficiency is crucial. There may not be much room available if people want a net-zero home and want their rooftop to generate all the electricity that a household needs.

The majority of residential solar systems are roof-mounted, but not all roofs are suitable for solar energy generation due to shadowing and difficult rooflines that restrict panel installation.

For maximum energy generation, it is also desirable to position solar panels at an angle toward the South. The overall amount of energy that can be created will grow with the use of more effective panels.

As new prospective technological advancements offer greater energy production in less space, increases in solar panel efficiency frequently make news headlines. The quantity of energy that can be produced from a specific amount of sunlight is referred to as this efficiency. The system may produce more energy the more efficient it is.

The efficiency of solar panels has never been higher. As a result, there are now more high-efficiency solar panels available than ever before, and hence also important for households to boost solar efficiency.

Ways to Boost Solar Efficiency

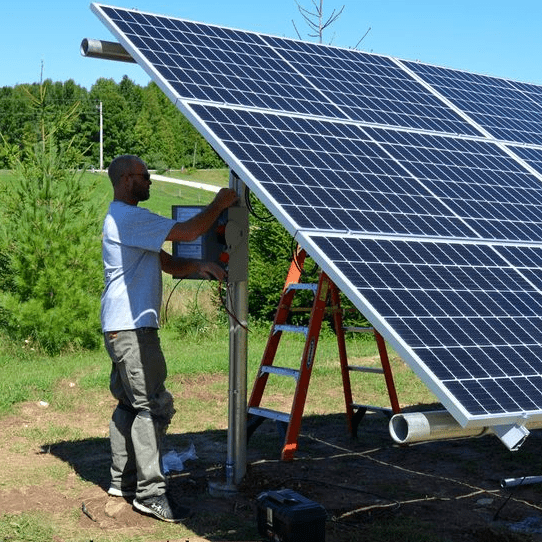

Ways to boost solar efficiency
Source: Pinterest

When considering solar power as a viable power source, a solar panel’s efficiency is crucial; the better the efficiency, the more affordable the installation would be.

However, ongoing research is yielding fruit, and the key area of concentration is the advancement of this technology and increasing the efficiency of solar cells.

It’s crucial to realize that the effectiveness of a single solar cell does not correspond to the effectiveness of solar panels (modules) as a whole. Solar cell efficiency can sometimes exceed 42 percent while solar panel efficiency is typically between 15 and 20 percent.

However, unless specifically specified otherwise, laboratory testing is used to gauge the performance of solar cells. Consequently, even though 42 percent is a remarkable performance, home consumers might not use this since laboratory settings are not the same as those in the real world.

However, there are still a few ways how to boost solar efficiency:

Use Panels With Grade Monocrystalline Cells

The most efficient solar panels are monocrystalline. The quality of the photovoltaic cells is the most important predictor of solar panel efficiency in the field of solar energy systems. If efficiency is vital, don’t skimp on quality while buying or leasing.

Lower-grade cell panels may be less expensive to acquire, but they will be less efficient and produce less energy. This means that they will cost more to run than panels with high-quality cells.

Invest in Anti-reflection Coatings

Anti-reflective coatings enable cells to absorb more light. More than 30% of the light that hits the panels is not absorbed and transformed into electricity if anti-reflection coatings are not used. Anti-reflection coatings are applied to photovoltaic cells in high-quality solar panels to avoid light loss due to reflection.

These coatings ensure that as many of the sun’s rays as possible are absorbed by the panels. Cells with rough surfaces are also anti-reflective. When looking for solar panels, inquire about the procedures taken to control reflection.

Hire a Certified Solar Installer

A competent installation will ensure maximum efficiency. Aside from qualification, ensure that any installation that is employed has all of the necessary licenses and insurance in the area.

Check the background of any installer or manufacturer to ensure they have experience and a good reputation in the solar energy field.

Orient Solar Panels for Maximum Exposure

Orient the panels facing geographic south in the northern hemisphere. If someone live in the southern hemisphere, their panels should face north. These are not the same as the directions that they might find with a compass, which sends them toward the magnetic poles rather than the geographic poles.

The direction of the panels is also determined by how people use solar energy. For example, if someone used solar to power their home, the energy collected later in the day will be more valuable. This may imply rotating the panels slightly southwest in the northern hemisphere.

If the solar panels can’t face south (or north in the southern hemisphere), face the west, where the sun sets. If there aren’t those options, orient them east or north (or south in the southern hemisphere).

Solar panels can generate maximum energy when they are facing the sun directly. According to Solar Reviews, panels that face south receive direct sunlight all through the daytime which results in maximum output. However, in the afternoon and early evening, a more westerly position will generate more power. The ideal position for solar panels will be based on the amount of electricity used and the price of electricity.

South-facing panels are ideal when the utility delivers 1:1 net metering because it generates maximum power at all times. A southwest orientation is perfect if the utility uses the time of use billing that costs extra when more power is used in a household.

Calculate the Best Angle for the Latitude

Maximum effectiveness is ensured by an angle corresponding to your geographic latitude. The closer your panels are to the equator, the higher they should point. Your geographic latitude determines the angle at which your panels will receive the most direct sunlight throughout the year.

For example, if you live in Boulder, Colorado, which is at 40o N latitude, your panels will be most efficient if you put them at a 40o angle facing geographic south.

If you’re installing solar panels on a sloped roof, you’ll need to account for the angle as well. If your roof had a 20o slope and you needed your panels to be at a 40o angle, you would place them at a 20o angle on the roof.

Set Up the Panels to Track the Sun

Your solar panels can absorb the most energy possible by tracking the sun. If your solar panels are ground-mounted, trackers let them move with the sun so they can capture the maximum sunlight.

However, there are smaller trackers that enable your panels to arc from east to west, following the sun from when it rises to when it sets.

Even though this system has a high initial cost, if you live somewhere that doesn’t receive a lot of direct sunshine, the enhanced efficiency might be worth it.

Eliminate Shade

The most effective solar panels receive direct sunlight. Throughout the day, keep an eye on your panels to see if any surrounding trees provide any shade. Shaded cells are not absorbing any light at that time.

You’ll undoubtedly need to do this on occasion, particularly if you live close to a wooded region. Be aware of the growth so you can plan trims.

Discuss the matter with the landowner if the trees are not on your property. In exchange for some power, they might be willing to work on the trees. Solar panels are intended to function best under direct sunlight. If the sun is obscured by a tree or another structure, the storage of your solar battery energy and output of your array may be significantly decreased.

Shade is especially destructive to solar panels that use a “string” style of the inverter, which limits the array’s output to the intensity of the weakest panel, according to Energy Sage. Even if only a tiny portion of your array is shaded, the output of the entire installation may be reduced.

Trees around your array should be pruned or removed. If the trees cannot be removed or if a piece of the building casts shade, Energy Sage recommends utilizing a microinverter or power optimizer inverter to maximize output from the unshaded portions of the array.

Reduce The Number Of Gadgets That Use Solar Electricity At The Same Time

Less power means less drain on your batteries. In general, if you are not operating at maximum capacity, you can utilize your stored energy for a longer amount of time. It is also more cost-effective to use less electricity for several hours rather than maximum power for a shorter amount of time.

Run the clothes washer and dishwasher at the same time, for example. You should also switch off lights in unoccupied areas and unplug electronics when not in use.

Install Backup Batteries to Store Solar Energy

To save money, locate your storage and panels next to one another. Any energy that you can’t store will be lost, which can reduce the effectiveness of your panels.

The energy that your solar panels absorb is stored in lithium-ion battery storage systems so that you can use it even when the sun isn’t shining.

The procedure of installing solar panels is expensive and time-consuming. If you install backup batteries at the same time as your solar panels, you’ll get the most out of them.

Clean the Solar Panels

With water and a soft sponge, clean your panels. Your solar panels will function at their peak after doing this since the majority of the dust and debris blocking them will be removed.

Avoid pressure washers since they can harm the cells’ surface. Add a drop of dish detergent to your water if you need a little additional assistance to remove any stubborn dirt.

Cleaning your panels yourself can be risky if your roof is really slanted. Request a cleaner recommendation from your installer; they presumably know some reliable nearby businesses (they might even clean panels themselves).

Dust can accumulate on your solar panels over time, reducing their performance. According to the National Renewable Energy Laboratory, dust accumulation can progressively diminish your array’s performance by up to 7%.

According to the magazine Green Choices, cleaning solar panels can be as simple as rinsing them with a garden hose, however, eliminating built-up filth may need scrubbing with a soft brush. Consider accessibility for frequent cleaning when deciding where to install.

How to Maximize Solar Efficiency?

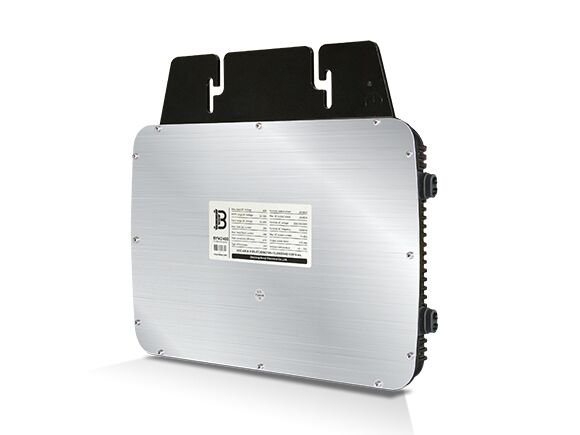

A microinverter
Source: Beny

Since the installation of your solar panels, your utility bills have decreased. However, you might be asking if there are any ways to increase the effectiveness of solar panels. Yes, it is the answer. The strategies listed here are just a few of the ways you can maximize your home solar investment.

Solar Power Concentrator

By focusing solar light, solar power concentrators enable you to get the most out of your solar panels. These concentrators focus a lot of sunlight onto a receiver using mirrors or lenses. The concentrated light is caught by a tracking device and directed toward the solar panel for maximum effectiveness. You can save more money by making sure that all of the sunshine is utilized to generate electricity. A solar power concentrator also has the benefit of effectively storing energy for use at night.

Battery Backup

You can use the energy you’ve stored throughout the day or during storms by purchasing a solar battery backup system. You can also draw power from the batteries on cloudy days. A backup system also enables you to lessen the carbon footprint of your home.


You now have it. Residential solar panels are being used by more households than ever to save money and lessen their environmental effect. However, one won’t likely attain optimal efficiency in terms of PV energy storge and electricity output if home solar panels aren’t installed, maintained, and monitored correctly.

These recommendations would assist maintain peak performance levels and increase solar panel efficiency, saving money and lessening the environmental effect. Now, you might realize that the market have large needs for products regarding residential solar energy storge and application, and be interested in getting in touch with the top photovoltaic system safety gear for bulk purchase.
