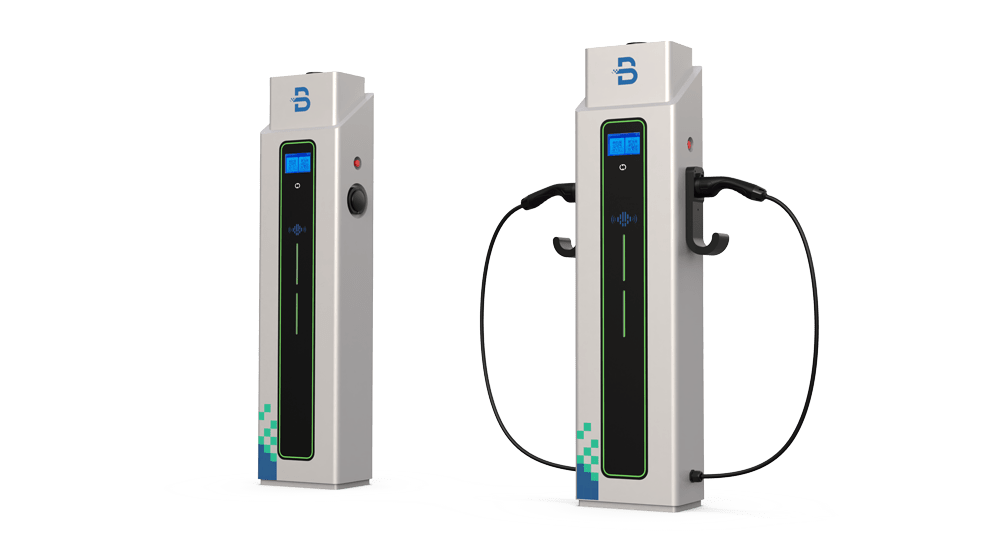

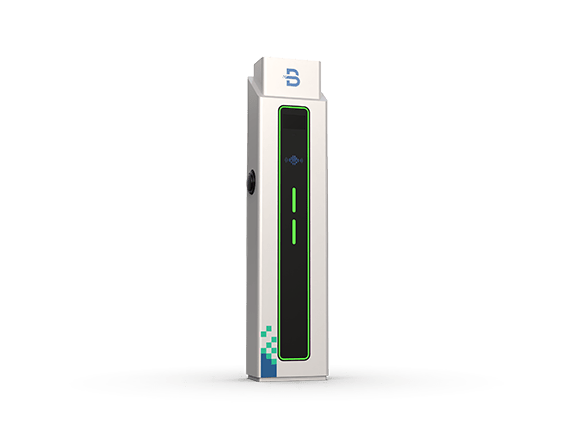

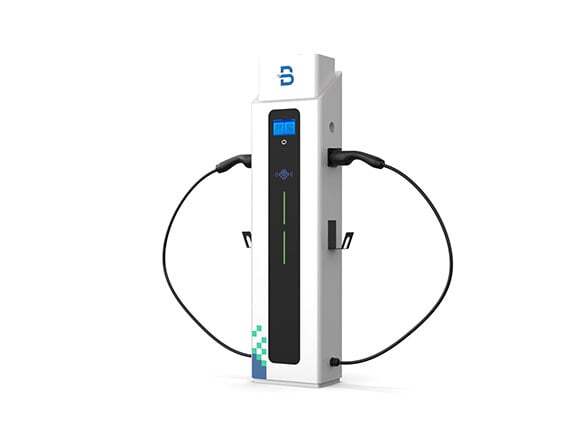

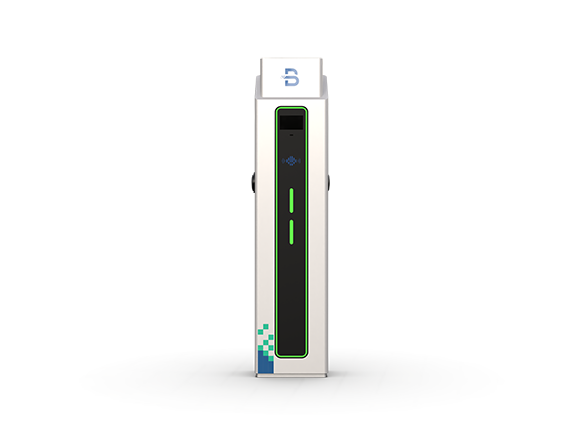

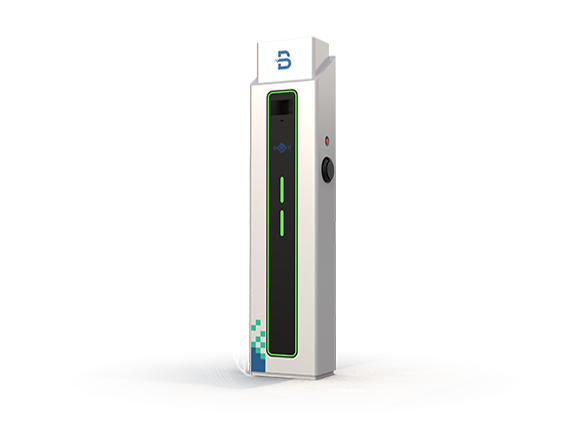

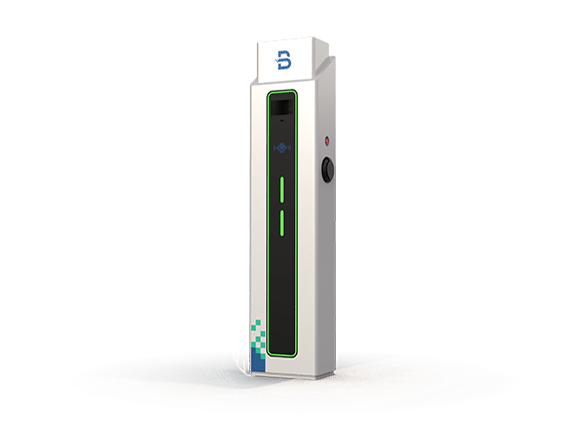

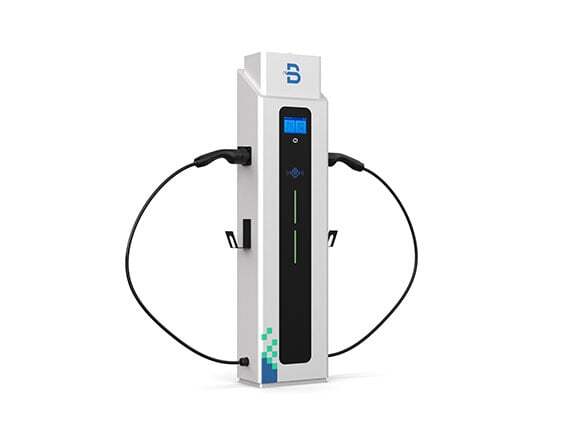

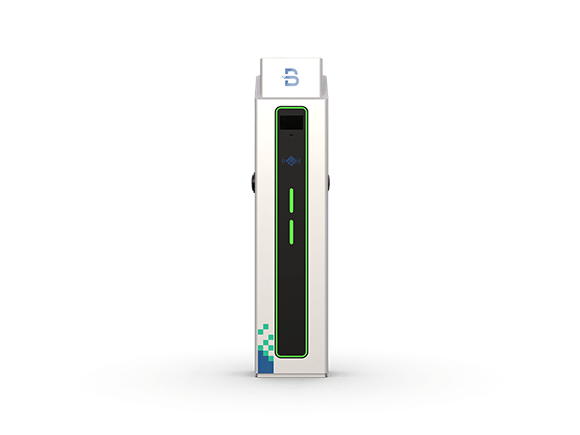

Floor Mounted AC EV Charger with Cable

Enhance your charging experience with the BENY Floor Mounted AC EV charger. Experience effortless interaction with its 5.0-inch LCD screen interface. Take control of your charger via a smart app and various connectivity choices.

                    Highlights :
                    IEC-61851-21-2 standard
5.0-inch LCD Screen
Wi-Fi/Ethernet/Bluetooth
IP54 Rating
Full Protection
OCPP1.6-J



Download Datasheet Request A Quote

Fast, Efficient and Safe AC EV Charging Station

BENY Floor Mounted AC EV charger has an IP54 patented design case for outdoor and indoor use.

Customizing all types of charging connectors makes it highly flexible and compatible with all-electric vehicles.

Full Protection Functions

BENY Floor Mounted AC EV charger supports multiple protection features, such as over-voltage protection, battery leak protection, over-temperature protection.

With full protection to avoid all kinds of charging safety hazards, it will automatically power off after the vehicle is fully charged, to protect the car battery and prolong the working life.

FUNCTIONS OF OCPP EV CHARGERS

Utilizing EV chargers from BENY has never been easier, even when not by the charging units, thanks to the multiple adjustments and configurations customers can access through the downloadable app.

Remote start/stop charging
Time setting charging
Electricity measurement and reporting
Firmware upgrade
Diagnostic file upload
Card number identification and management
Load balancing based on charging schedule

SPECIFICATION

Models	BCPCV-DT2N-P	BCPCV-CT2N-P
Maximum Power	2*22kw	2*22kw
Input/Output Voltage	AC400V3-Phase	AC400V3-Phase
Input Frequency	50HZ/60HZ
Tethered/Socket	Socket	Tethered
Meter	Built-in Electric Meter
Display	Five-inch LCD Screen + LED Lights
Charging protocol	OCPP1.6-J
Incoming line method	Single Input
Rate Charging Current	2*(6‑32A)
T2S Socket	⭘	✖
RFID	✔	✔
DLB	⭘	⭘
Wi-Fi	✔	✔
Ethernet	✔	✔
Bluetooth	✔	✔
4G	⭘	⭘
Over Voltage &Under Voltage Protection	✔	✔
Emergency Stop	✔	✔
Over Current Protection	✔	✔
CP Signal Short Circuit Protection	✔	✔
Over Temperature Protection	✔	✔
Lightning Protection	✔	✔
Contactor Adhesion Protection	✔	✔
Protection Degree	IP54
Environment Temperature	-30°C~+55°C
Charger Dimension	350mm220mm1422mm
Maximum Altitude	<2000m
✖: Without ✔: Standard ⭘: Optional
