EV Charger for Commercial

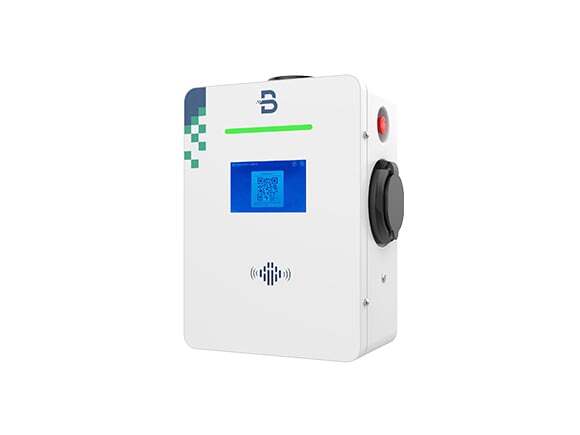

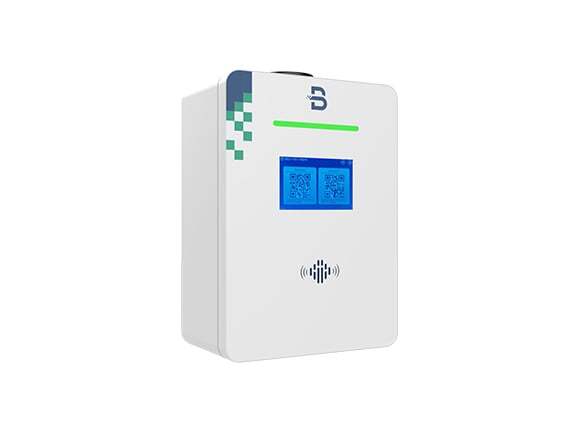

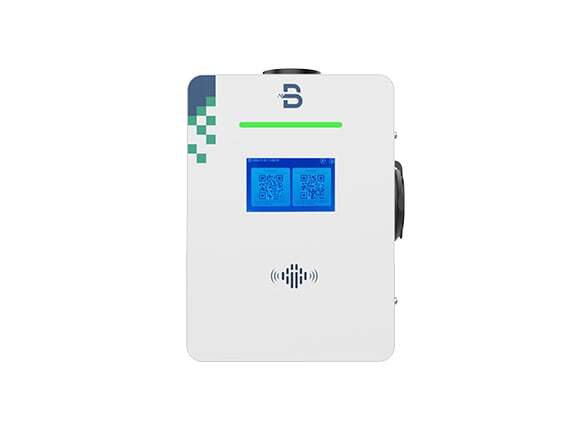

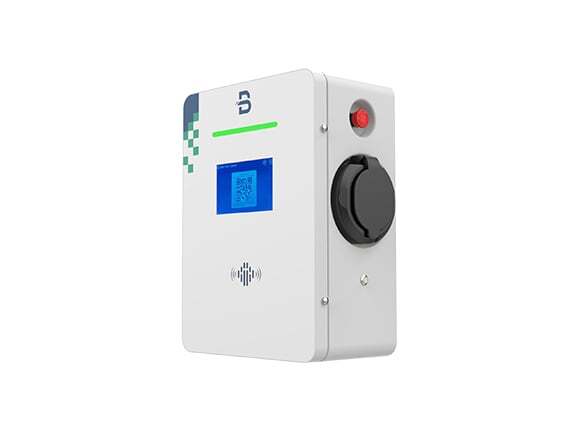

BENY AC EV charger, endorsed by CE and featuring the T2S socket option. Experience effortless interaction with its 5.0-inch LCD screen interface.Take control of your charger via a smart app and various connectivity choices.

Highlights :

  • 1-Phase from 1.3kW to 7.4kW
  • 3-Phase from 4.1kW to 22kW
  • Ethernet and Wi-Fi connection
  • 5.0-Inch LCD Screen with Human Induction
  • Charging protocol OCPP1.6J
  • IP65, IK10
  • CE Certificate
  • rohs
  • CE-Certified icon
  • CB icon
  • RCM icon
  • ocpp 1 6 icon
  • 1000x500(3)

Why Choose Commercial EV Charger with LCD Screen

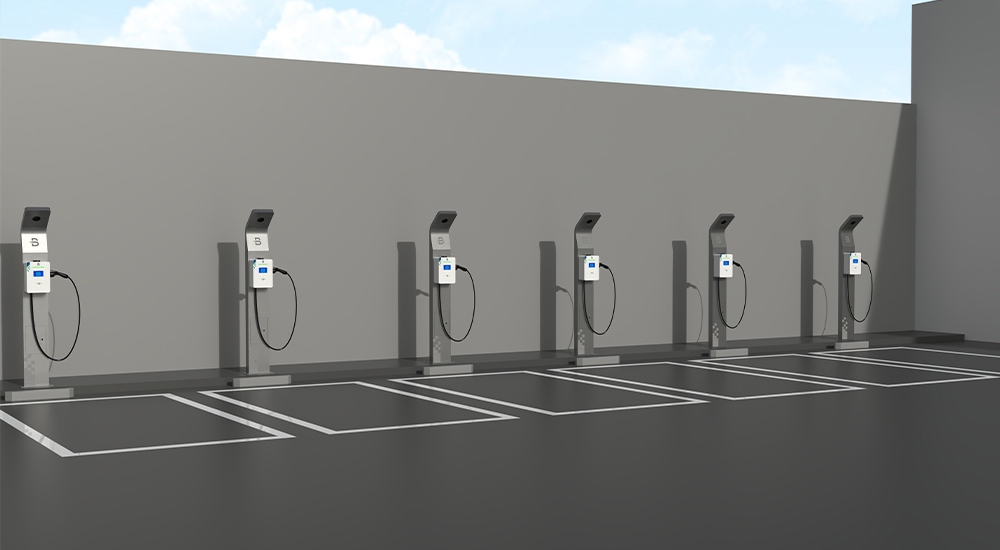

BENY commercial car charger provides EV drivers with real-time statistics and insights into their charging actions via a 5.0-inch LCD display. It can be wall_x005fmounted, it can also be installed on a pedestal.When the person is close to the commercial EV car chargers, the LCD screen will light up, this can reduce the consumption and longer the service life. BENY will provide software updates for at least three years from the date of manufacture of the charger.

  • commercial ev charger supplier

Commercial EV Charger Supplier

BENY EV charger for business is a mode 3 type AC EV Charger which is designed according to IEC 61851-21-2 standard. We take full protection, the electric car charger for business can monitor the operating temperature anytime, once detecting the over temperature, the charger stop the work immediately. Customers may trust BENY and choose us for EV charging solutions that are reliable, high-quality, and provide peace of mind.

  • 1000X550(2)

PEN FAULT DETECTION

BENY EV charger for business is a mode 3 type AC EV Charger which is designed according to IEC 61851-21-2 standard. We take full protection, the electric car charger for business can monitor the operating temperature anytime, once detecting the over temperature, the charger stop the work immediately. Customers may trust BENY and choose us for EV charging solutions that are reliable, high-quality, and provide peace of mind.

  • 750X540(APP)

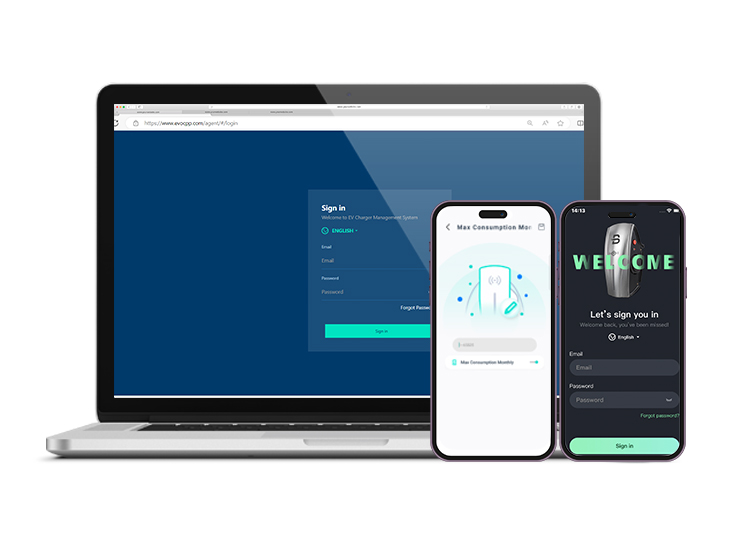

SMART APP FOR OPTION

BENY EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:



✔ One to one binding EV charger by resetting the password, prevent the EV charger being stolen;



✔ View charging data and status;



✔ Set up various charging configurations, charging current, DLB mode, etc.



✔ Scheduled charging;



✔ Firmware update;

EV Charger for Commercial Features

  • 1000x500(2)
  • 1000X550(1)

RFID card to charge automatically

Type 2 socket with shutter in accordance with IEC 62196-2

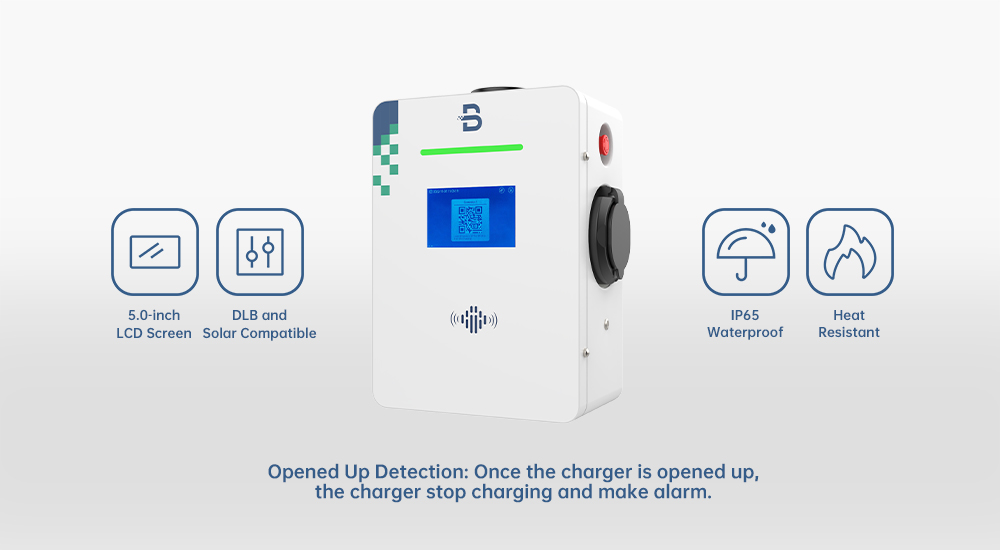

More directly and clear data on LCD screen

  • Type A sensor + DC6mA sensor for Leakage Protection

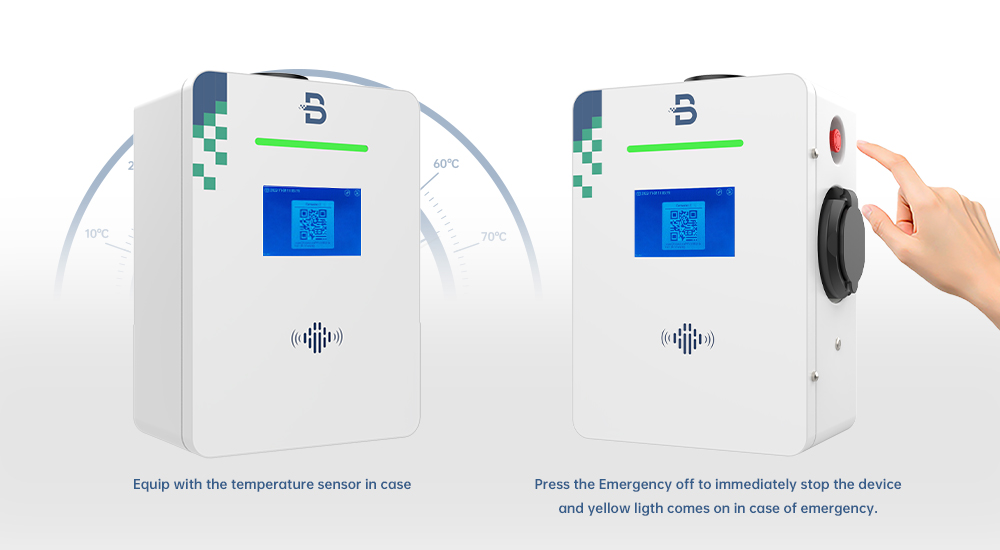

  • Over Temperature Sensor
  • With Emergency Stop Switch
  • Built-in MID meter
  • LCD Screen + LED Lights

SPECIFICATION

Wallbox Models BCPCM-B2N-P BCPCM-BT2N-P
Maximum Power 7.4KW 22KW
Input voltage/Output voltage 1-PHASE
AC230±15%L, N, PE
3-PHASE
AC400±15%L3, L2, L1, N, PE
Input frequency 50Hz/60Hz
Tethered/Socket T2/T2S T2/T2S
Meter Built-in Electric Meter
Display Five-inch LCD Screen+LED Lights
Frequency 50Hz/60Hz
Rate Charging Current 6-32A
Cable Length 5M
Standby Power Consumption 4G:<8W Wi-Fi:<6W
Operating Temperature -30°C ~ 55°C
Storage Temperature -40°C ~ 85°C
Operating Humidity 5%-95%
IP Protection IP65
Safety Protection Leakage Protection, Over Current Protection, Ground
Protection, Over Voltage Protection, Under Voltage Protection,
Contactor Adhesion Protection, Neutral and Live Wire Reverse
Connection Protection, Over Temperature Protection, CP
Signal Abnormal Protection, Lightning Protection
Operating Altitude <2000M
Charger Dimension Height:360mm Width:278mm Depth:152mm
Gross Weight 9.3KG
Leakage Detection TYPE A+DC6mA leakage sensor built-in
