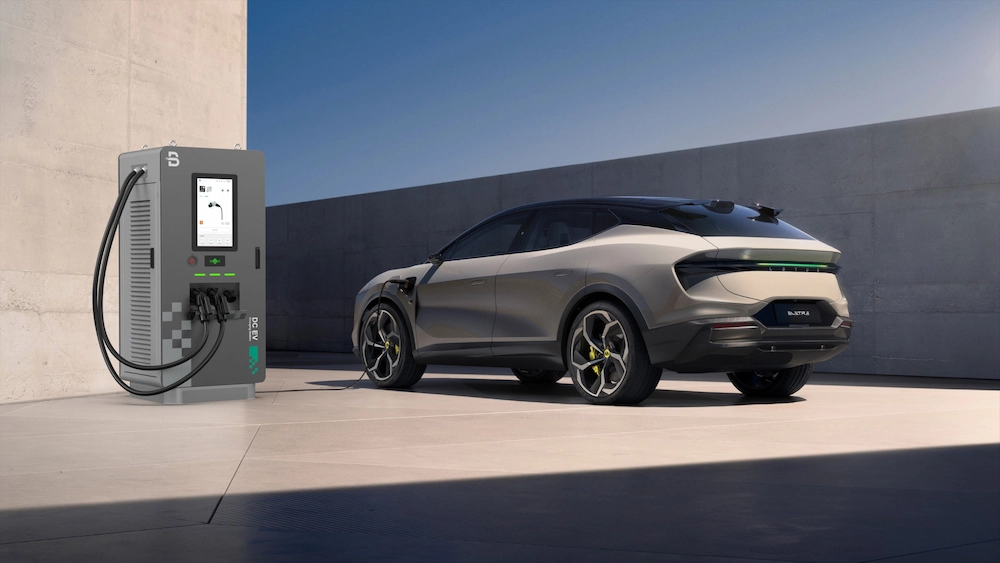

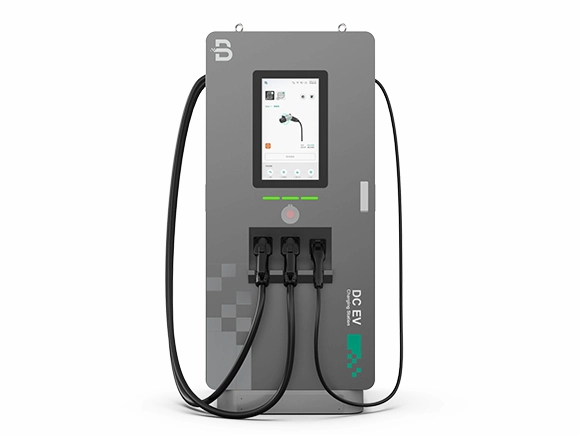

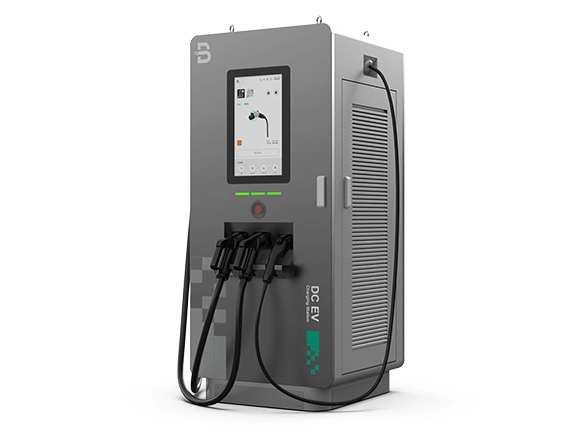

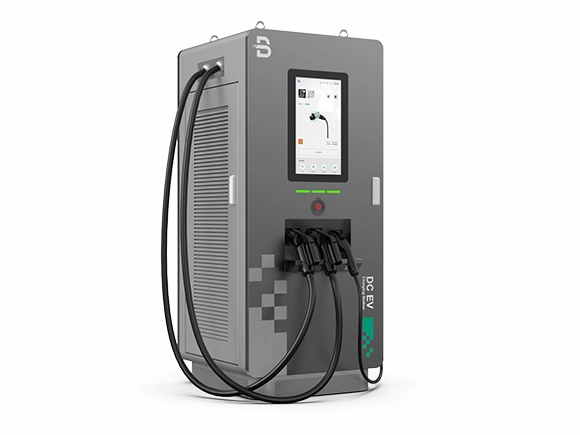

3 Guns DC EV Charging Station BADC

Fast, Efficient and Safe EV Charging Station

BENY DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface.

3 Guns DC EV Charging Station has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.

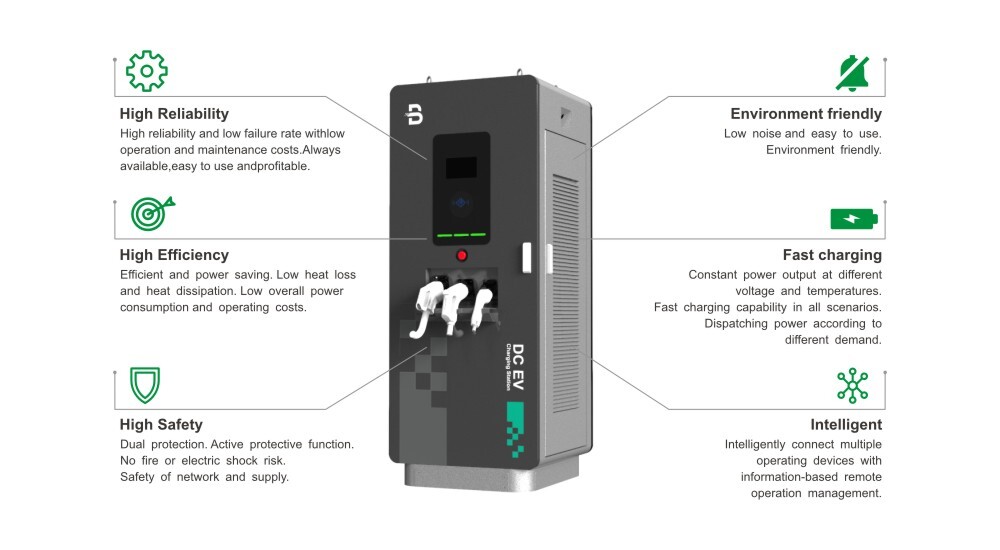

FEATURES/ADVANTAGES

SPECIFICATION



Models	BADC82-D	BADC112-D	BADC142-D
Structure Description	Sheet material
Dimension	800*800*1800(L*W*T)
Weight	≤500kG
Installation Method	Floor-stand type
Cable routing	Bottom inlet wiring,up outlet wiring
Cable length	5 M
Charging outlets	Triple(CCS2+CCS2+AC) Triple(CCS1+GBT+AC) Triple(CCS1+CHADEMO+AC) Triple(CHADEMO+CHADEMO+AC)	Triple(CCS1+CCS1+AC) Triple(CCS2+GBT+AC) Triple(CCS2+CHADEMO+AC)	Triple(CCS2+CCS1+AC) Triple(CHADEMO+GBT+AC) Triple(GBT+GBT+AC)
Connectivity authorization	RFID, App
Screen	7 Inch LCD screen/LED light
Electrical Specification
AC input voltage	AC380V±15% ,3P+N+PEAC
input frequency	50Hz/60Hz
Consumption	≤24W
Rated power	82kW	112kW	142kW
Output voltage range	CCS1/CCS2/GBT: 150Vdc –1000Vdc;CHADEMO: 150Vdc –500Vdc
Output current	CCS1/CCS2/GBT:0~250A;CHADEMO:0〜125A;AC:0-32A
Efficiency	≥95%
Power factor	≥0.99(load:100%)
Functionate design
User Interface	Emergency Stop Button,LED Indicator,Card Swiping,Touch Screen
Charging stands	IEC 61851-21-2:2021; IEC 61000-6-2:2019; EN61000-6-4:2019; IEC 61851-1:2019; EN 61851-23:2014; EN 61851-24:2014
Communiction
OCPP	OCPP 1.6
Network interface	Ethernet/4G
Environment condition
Application place	Indoor/Outdoor
Working latitude	<2000m
Working temperature	-30℃~+55℃
Working humidity	5%~95%
Protection level	IP55
Natural cooling	Forced-air cooling
MTBF	24 months warranty
Security design	Over/Under Voltage Protection,Overlord Protection,Current Leakage Protection, Grounding Protection,Over Temp Protection,Lightening Surge Protection
